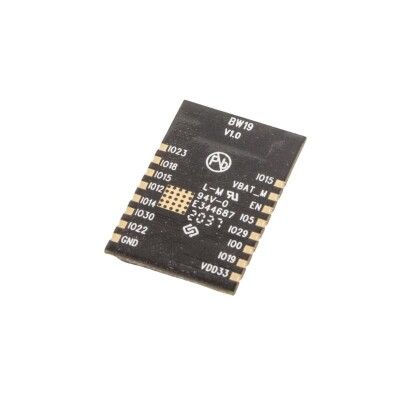

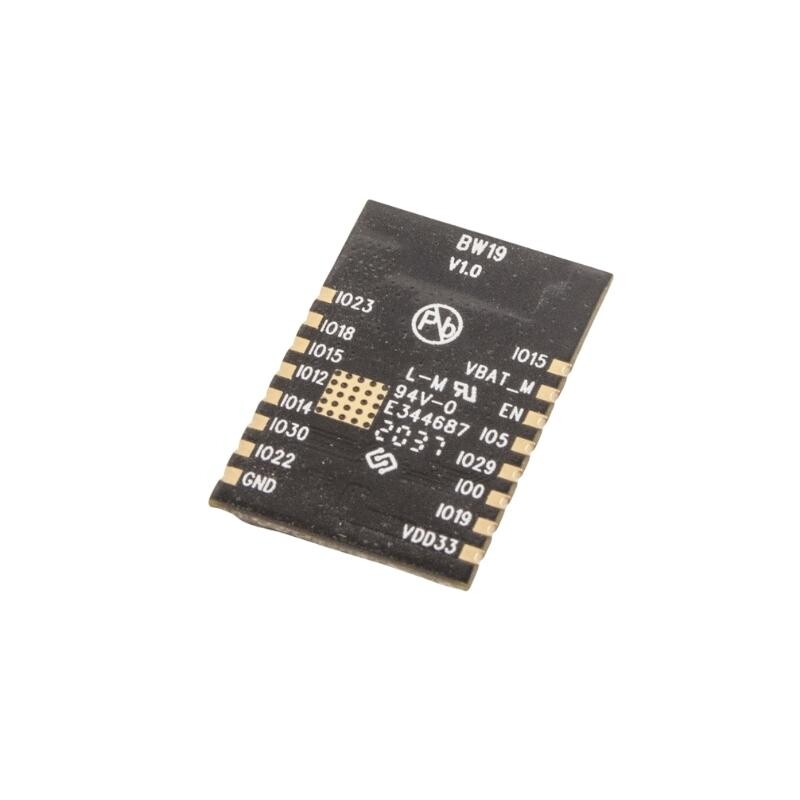

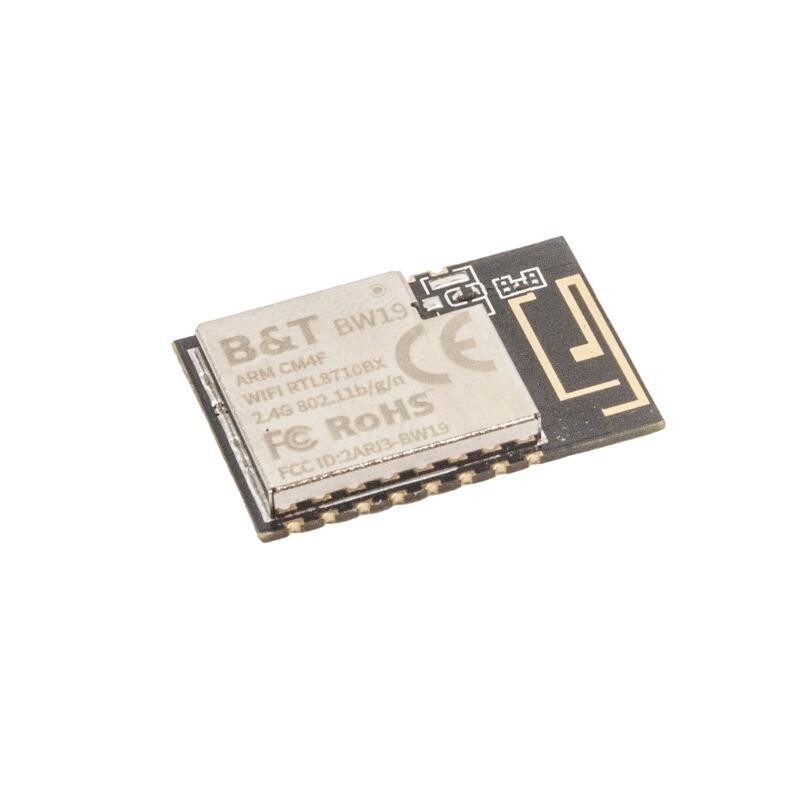

BW19 RTL8710BX Wireless WiFi Module

BW19 RTL8710BX Wireless WiFi Module is based on BW19 Realtek RTL8710BX high integration WIFI system chip. The chip includes MCU with up to 125MHz ARM-Cortex M4F core, 512KB ROM, 256KB SRAM, expandable FLASH, Wi-Fi MAC/BB/RF/PA/LNA. Supports standard IEEE802.11 b/g/n protocol and TCP/IP protocol up to 150 Mbps.

Built-in cache helps improve system performance and reduce memory requirements. It can be added to any microcontroller based design and the connection is simple and easy, just via SPI/SDIO interface or I2C/UART port.

Features

Operating Voltage: 3.3V
Current: 50~300 mA
External Interface: 1-ADC (0~3.3V), 1-UART, 1-log UART, 2-IIC, 1-SPI, 5-PWM
WPA, WPA2, WEP, WPS security mode 802.11 i/802.11e QoS support
Development(WMM)
STA/AP/STA+AP operation Supports mode
