CHB-40QB 3 Axis 2 Button Joystick IP65 Water and Dust Protected
2.240,25
TL
+
VAT
2.688,30
TL
Notify Me When It Arrives
Notify Me When It Arrives

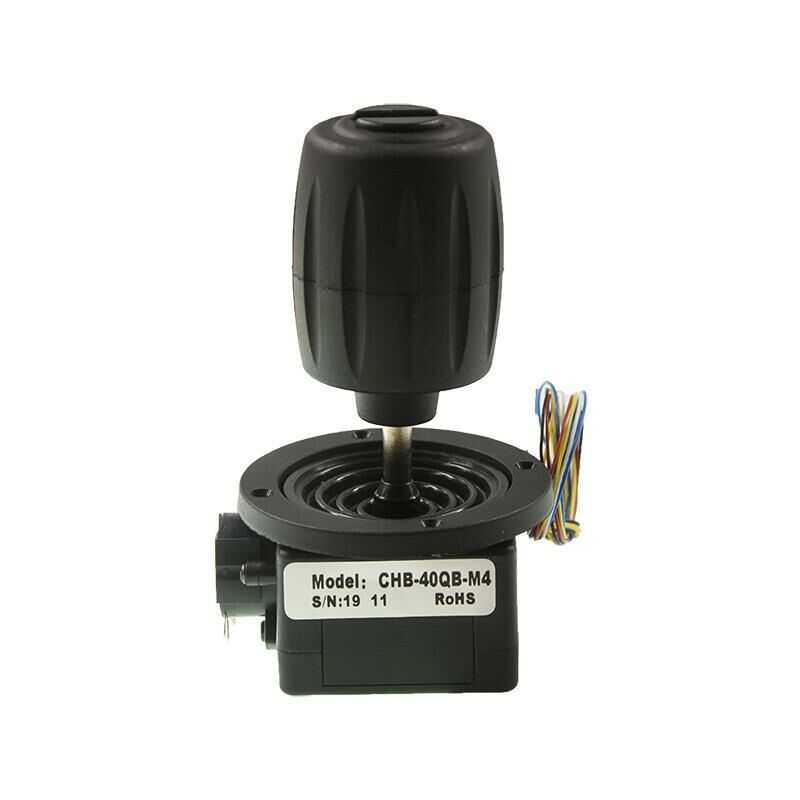

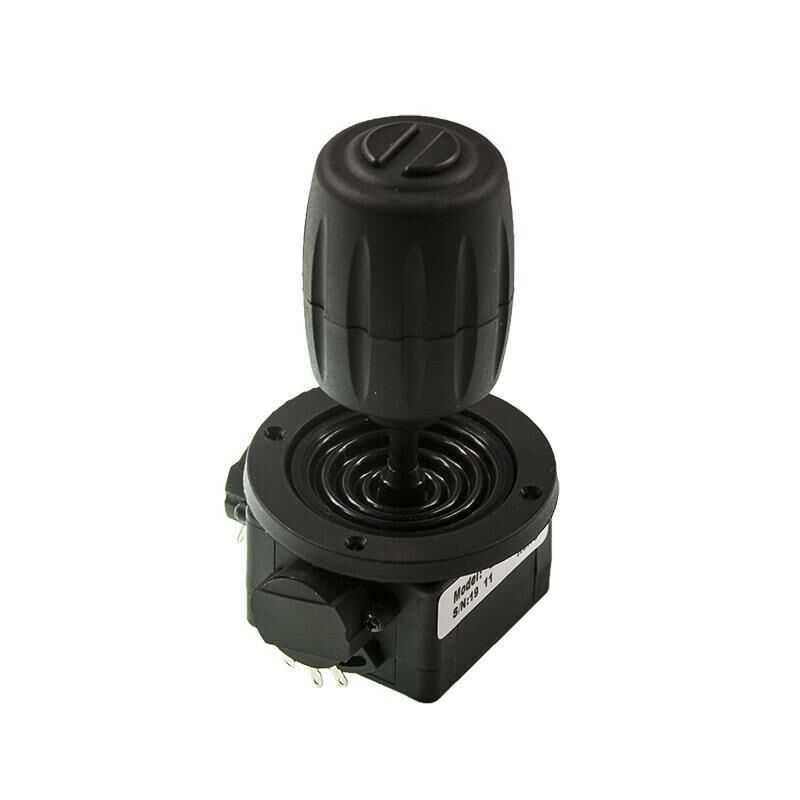

CHB-40QB 3 Axis 2 Buttons Waterproof Joystick
CHB-40QB-M4 is a 3 axis 2 buttons waterproof joystick. There are 2 10k potentiometers on it. It can be used in robotics and electronics projects, various applications and homework, and jimmy jib applications. The product provides water protection with the rubber surface under the head part. For this reason, the installation should be done carefully and the sub-circuit part should be left in a closed place. In this way, it can be used as waterproof.
CHB-103B-M4 Technical Specifications:
- Potentiometer: 10K
- Movement Capacity: 50°
- Axis: 3 Axes
- Button: 2 Buttons
- Resistance Tolerance: +-20%
Dimensions:
- Joystick Handle Width: 35.5mm
- Joystick Handle Length: 70mm
- Case Size: 40x40x26mm
- Case Size Including Potatoes: 51x51x26mm
