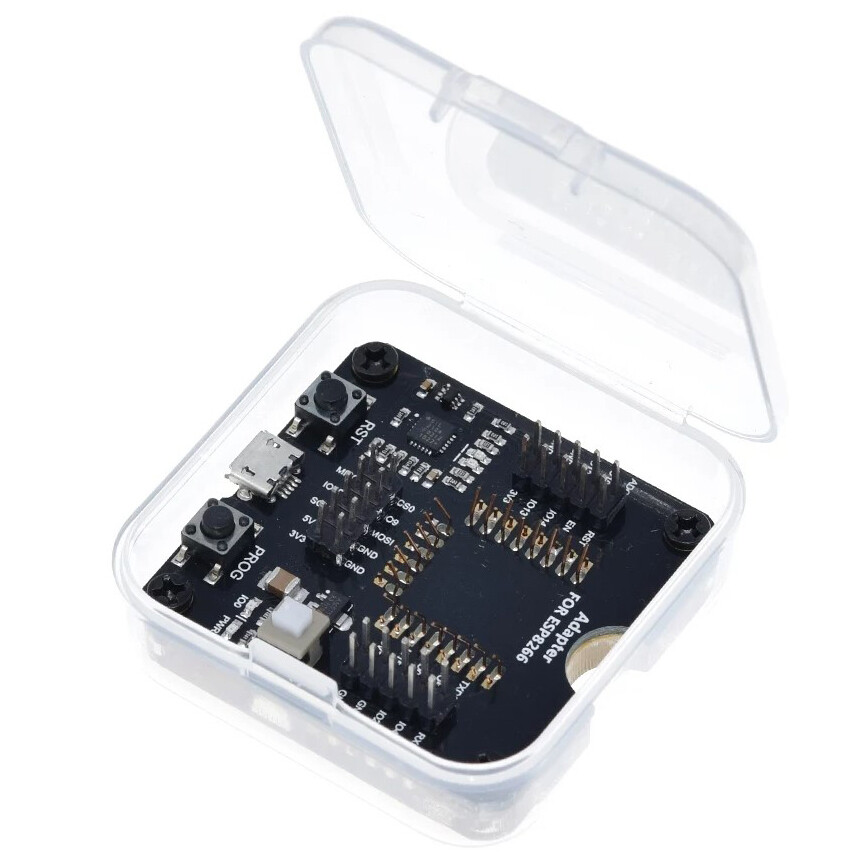

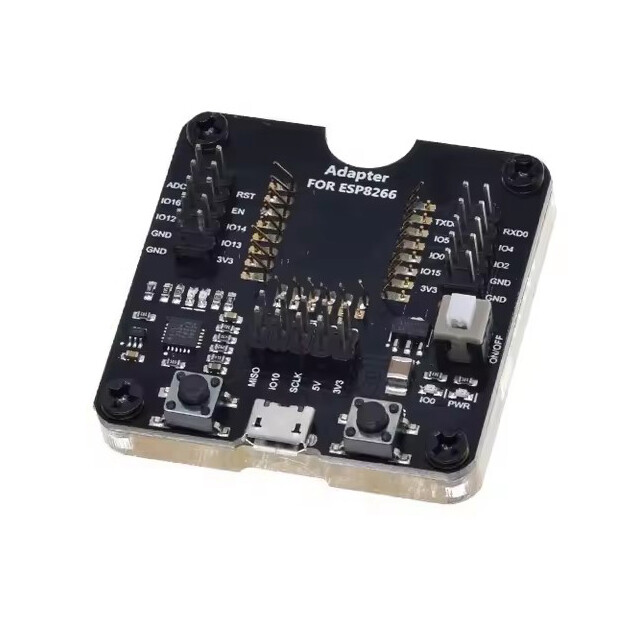

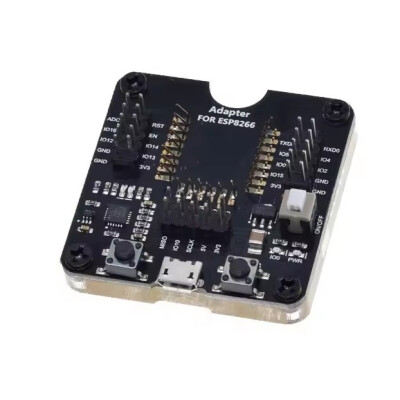

ESP8266 Module Adapter - Development Board Test Kit does not include the ESP8266 module. This board is suitable for software burning tests of ESP-12S/12F/12E/07S/07 and other modules. All IO ports are brought out and can be used as a minimum system development board. The board supports one-click software download function, and adds a write mode indicator (blue light) and a serial port communication indicator (green light).

The size is 51x50x15mm.

Usage Steps

• Download and install the corresponding CP2104 serial chip driver according to the operating system.
• Download the flash download tool ESPFlashDownloadTool
• Automatically download the firmware: press the module, turn on the power switch
• Open the software, configure the corresponding write parameters, long press the write button and then short press; press the reset button and then click START to download, you can start burning the firmware.
• The downloader is suitable for modules such as ESP-12S / ESP-12F / ESP-12E / ESP-07 / ESP-07S.
• When the programming button is pressed, the blue programming indicator will light up and the module will wait for it.
• The l00 pin of the ESP8266 module will be pulled low.
