W2-0808 14-37 inch LCD Led Driver Module

W2-0808 14-37 inch LCD Led Driver Module

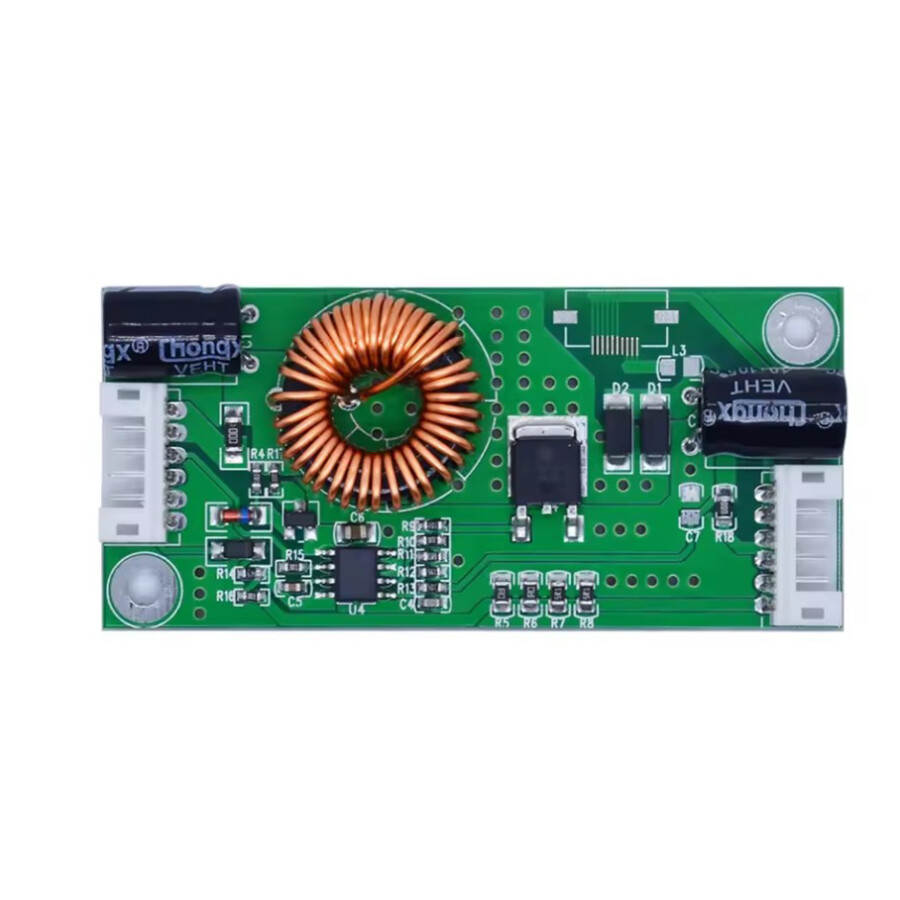

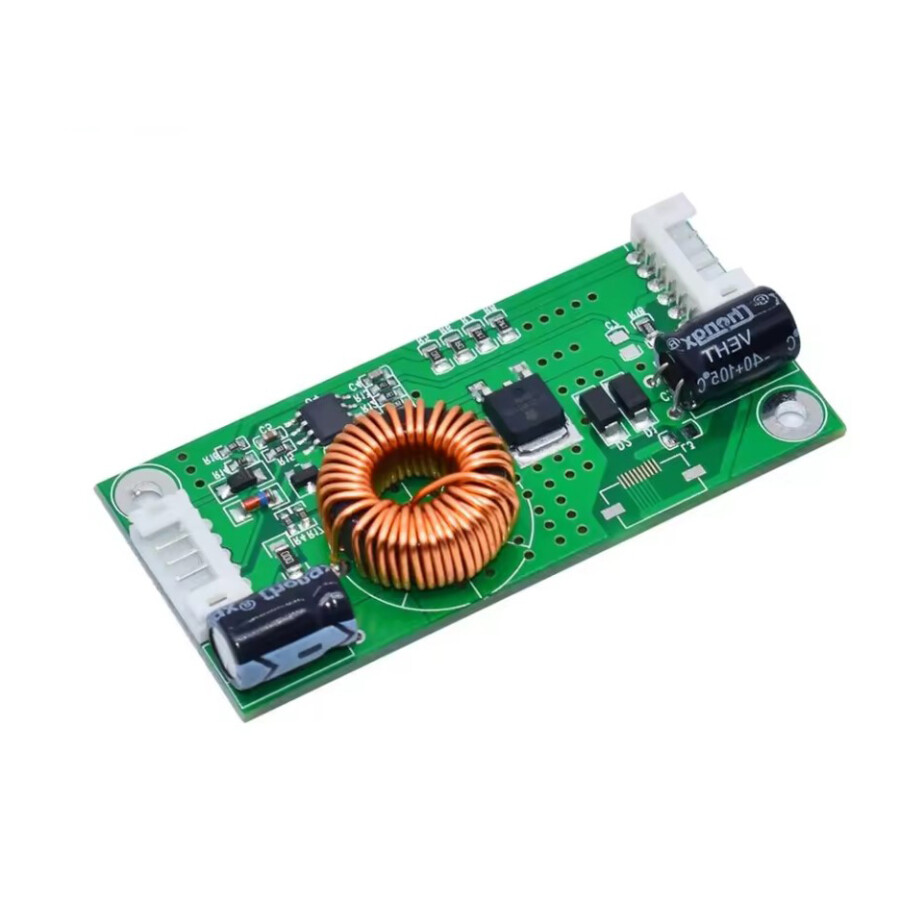

W2-0808 14-37 inch LCD Led Driver Module is used to drive the backlight LEDs of 14-37 inch LCD TVs.

General Features

• 14-37 inch LED backlight lamp driver board constant current board.
• BOOST structure, conversion efficiency reached more than 92%.
• Low temperature, stability, longer service life of the device.
• PCB small, Thin design, Current control error within ±5%.
• This product is a constant current board, the voltage is automatically adapted.

Limit Parameters

• At 24V input: Vout = 75V Iout = 720mA maximum or 60W
• At 12V input: Vout = 75V Iout = 400mA maximum or 30W

Features

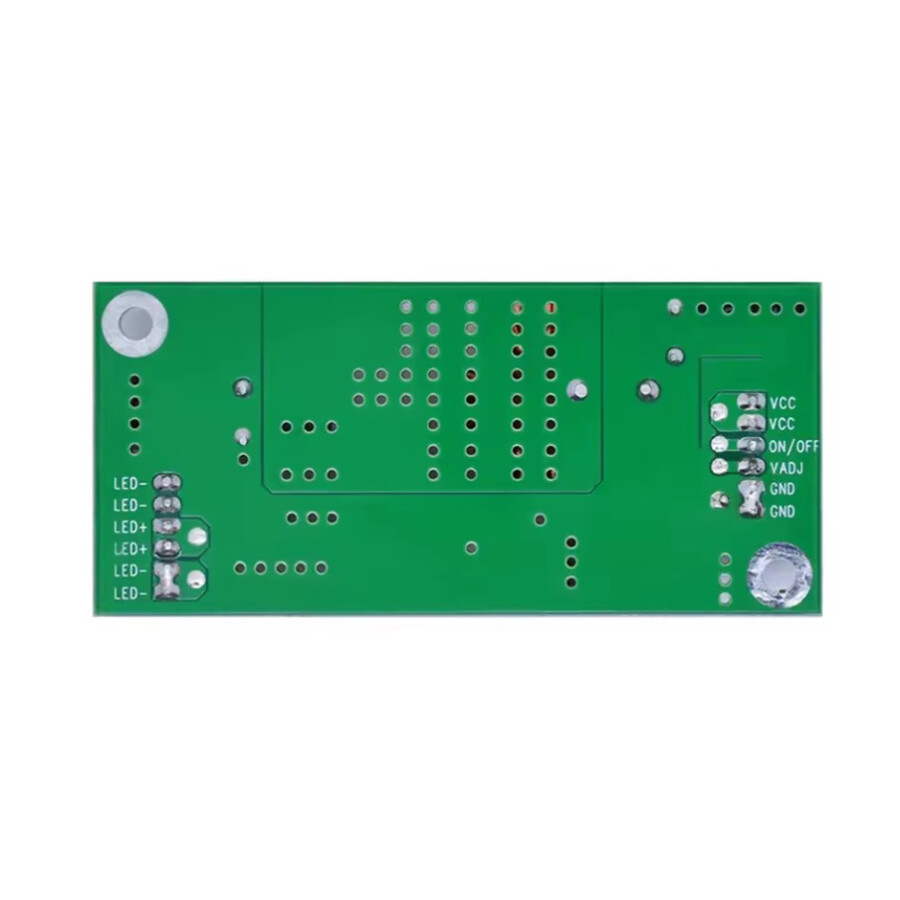

• General Electronic Backlight symbolic code:
• VCC: Positive of voltage supply, Circuit supply voltage (voltage is usually 12V or 24V)
• ON/OFF,ON,EN,ON_BL: Switch signal pin
• PWM,PDIM,VDAJ,BL-PWM: Brightness adjustment pin
• GND: Ground (negative electrode)
• LED+: Positive of light emitting diode (lamp) electrode
• LED-: Negative electrode of the light emitting diode (lamp)
• Temperature increase is controlled at approximately 25 degrees (Temperature increase = device surface temperature - ambient temperature)
