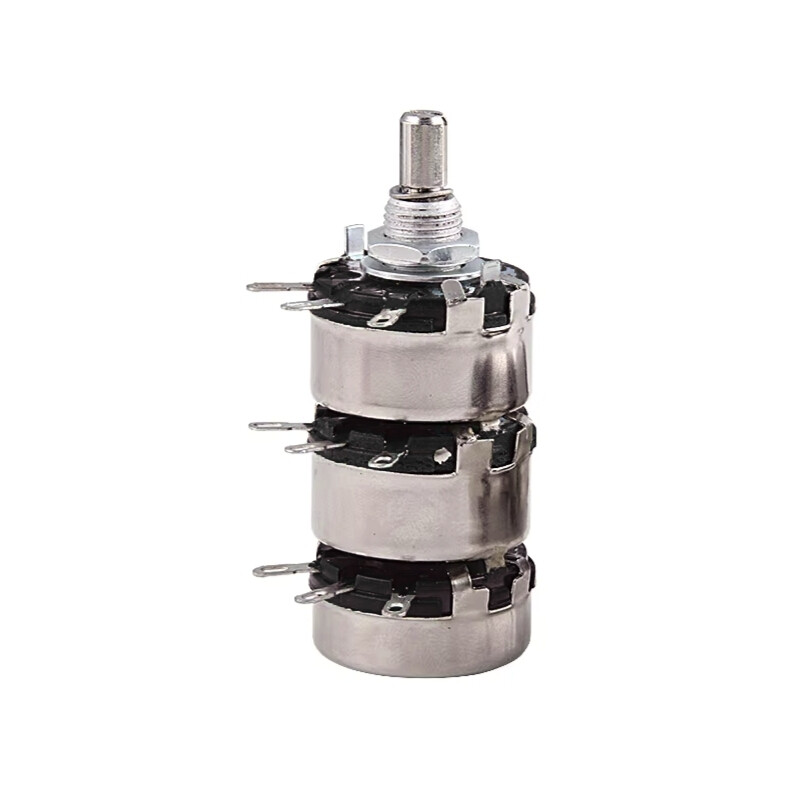

WTH118-2W Triple 47K 2W Single Turn Potentiometer
It is a 47K analog potentiometer that can withstand a maximum power of 2W. It is a control component that has three independent potentiometer circuits on the same shaft, offering high power and precise adjustment.
Each of these pots has a resistance value of 47K ohms and is preferred in many areas from sound systems to signal control circuits.
Technical Specifications
- Model: WTH118
- Power: 2W (70°C)
- Maximum Operating Voltage: 500V
- Resistance Tolerance: ±% 10
- Rotation Angle: 260 ° ± 10 °
- Shaft Torque: 2 ~ 20mN.m
- Shaft Diameter: 6mm
- Shaft Length: 10mm

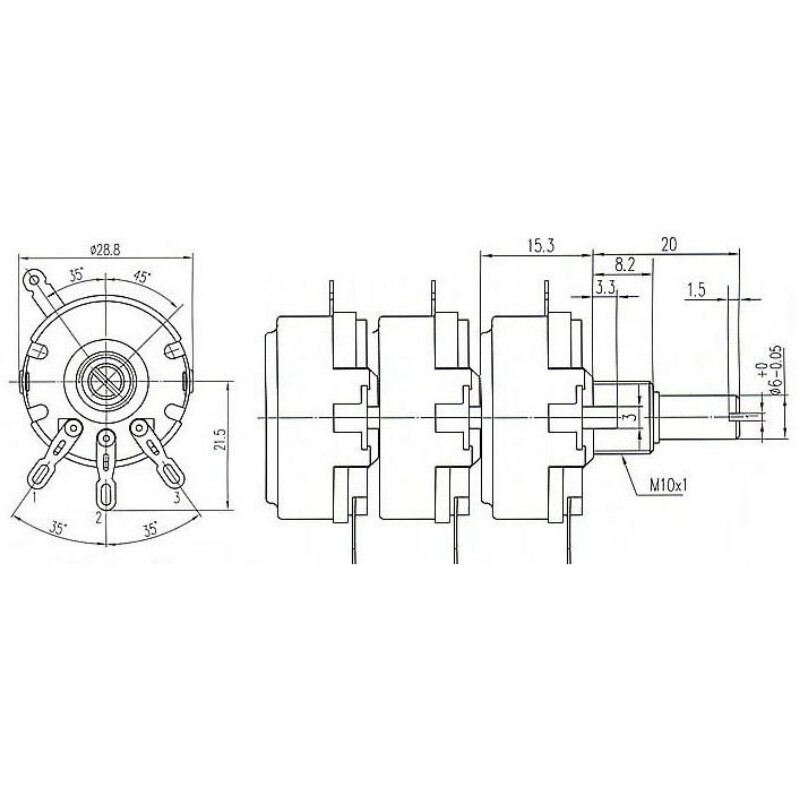

- Dimensions: 28x43.5mm (Excluding Shaft)
