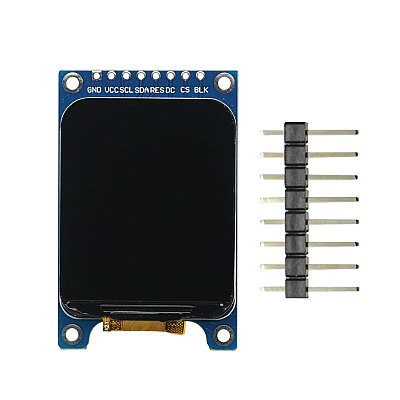

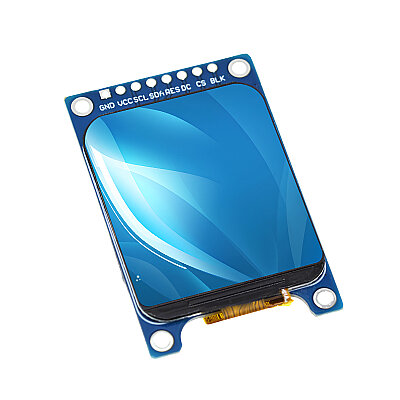

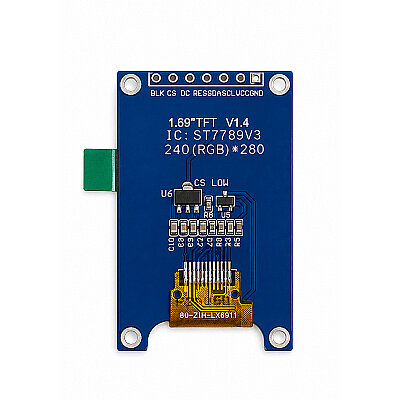

The 1.69'' 240x280 SPI TFT LCD Display (ST7789) is a high-resolution display module designed for showing color graphics, text, icons, menus, and measurement data in compact electronic projects. Thanks to its 240 × 280 pixel resolution, IPS panel, and ST7789 display controller, it delivers clear and vivid images despite its small size.

The module utilizes a 4-wire SPI serial interface to communicate with a microcontroller.

Thanks to its SPI architecture, it requires fewer GPIO pins compared to parallel displays and can be easily controlled using development boards such as Arduino, ESP32, STM32, Raspberry Pi Pico, and similar devices.

Specifications

• Operating Voltage: 3.3V DC
• Logic Level: 3.3V
• Display Size: 1.69 inches
• Panel Type: IPS TFT LCD
• Resolution: 240 × 280 pixels
• Driver IC: ST7789
• Communication Interface: 4-wire SPI

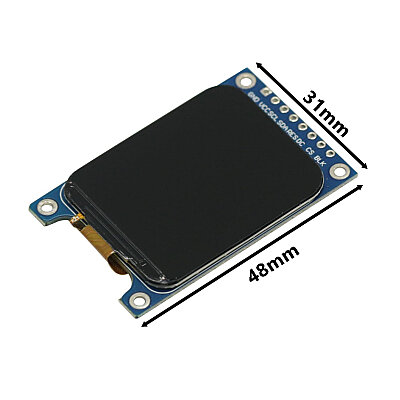

• Active Display Area: Approx. 27.97 × 32.63mm
• Pixel Pitch: Approx. 0.11655 × 0.11655mm
• Viewing Characteristics: IPS / wide viewing angle
• Number of Connections: 8 pins
• Touch Capability: None
• Backlight: LED
• Backlight Control: BLK pin
