560 Piece Boxed Black/Red Macaron Set

It is a tubing set created in 560 small pieces, in 12 different diameters and in black and red colors. Supplied in a storage box for easy access and transport.

Supplied inner diameter: ;1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 5.0mm, 6.0mm, 7.0mm, 10.0mm, 13.0mm

Technical Specifications

Shrinkage Ratio: 2:1

Material: Polyolefin

Minimum Shrinkage Temperature: + 70 ° C

Maximum Tensile Temperature: + 110 ° C

Operating Temperature: -55 ° C to + 125 ° C

Tensile strength: 10.4 Mpa

Dielectric strength : 15kV / mm

Package included:

90pcs x φ1.0 x 45mm
70pcs x φ1.5 x 45mm
70pcs x φ2.0 x 45mm
70pcs x φ2.5 x 45mm
50pcs x φ3.0 x 45mm
50pcs x φ3.5 x 45mm
40pcs x φ4.0 x 45mm
26pcs x φ5.0 x 45mm
26pcs x φ6.0 x 45mm
24pcs x φ7.0 x 45mm
24pcs x φ10.0 x 45mm
20pcs x φ13.0 x 45mm

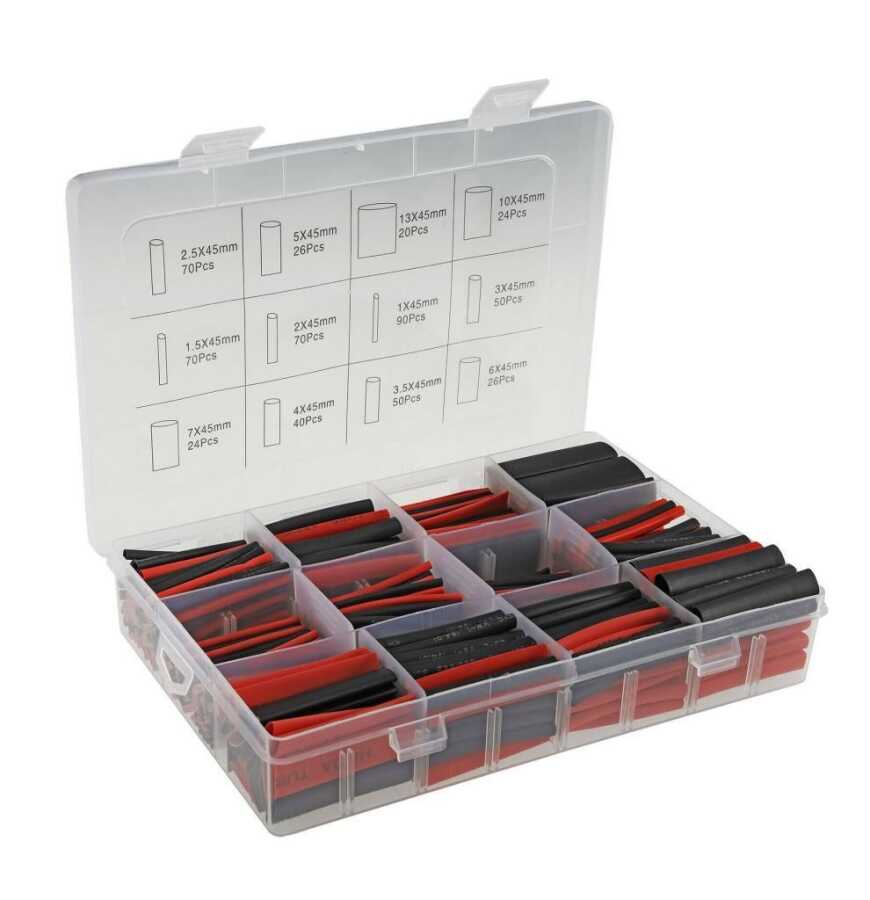

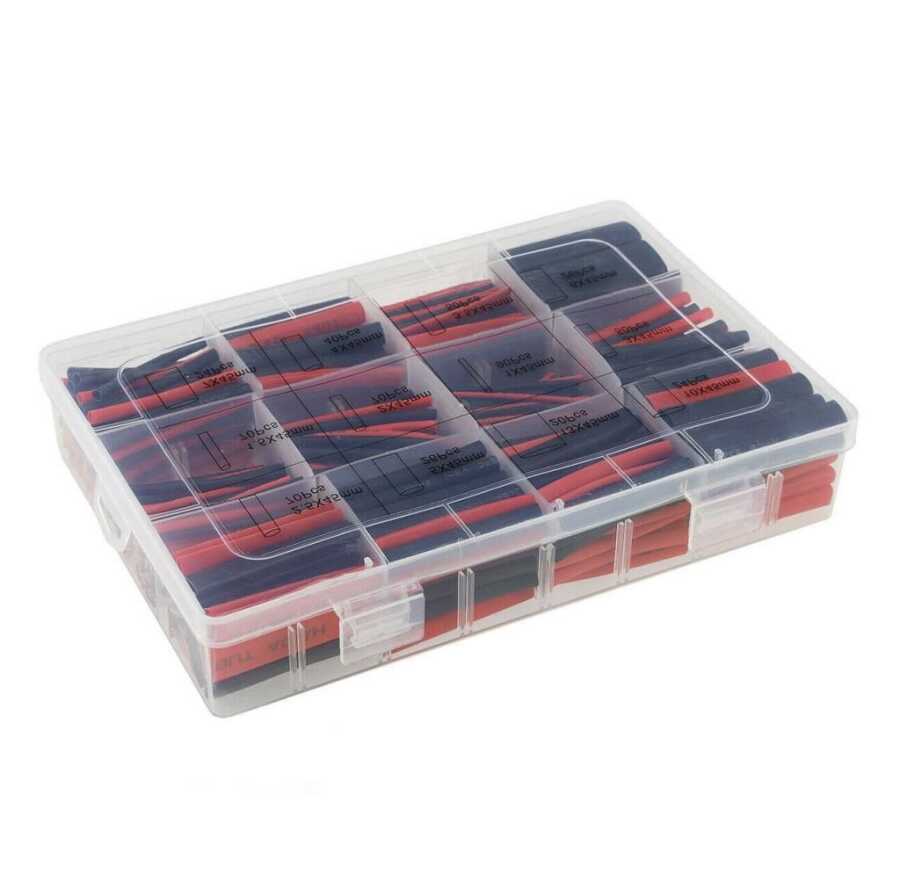

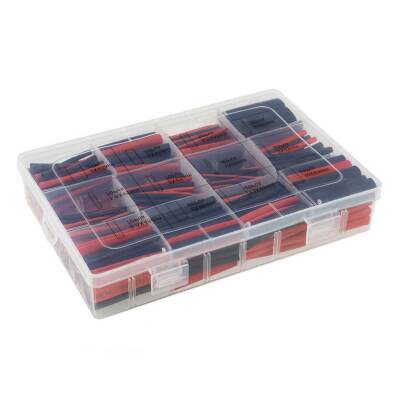

560pcs Black/Red Heat Shrink Tubing Set with Box
