7 Segment Display Module 2 Digit

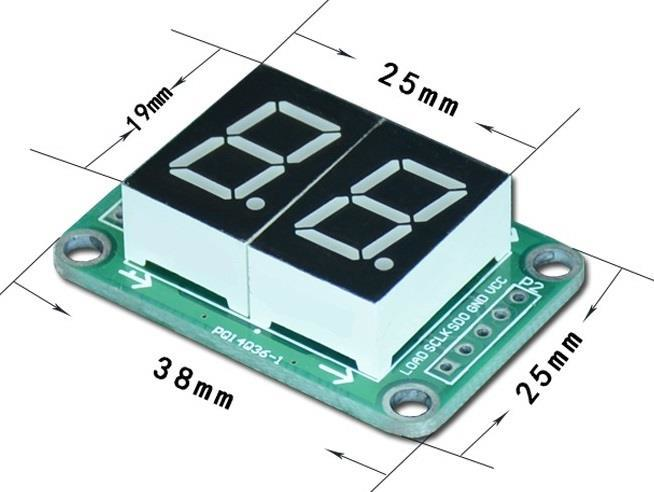

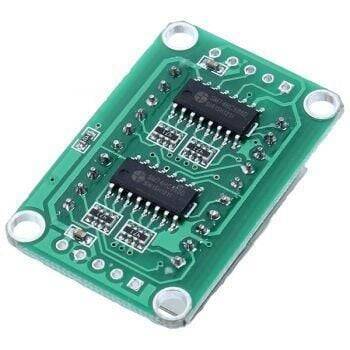

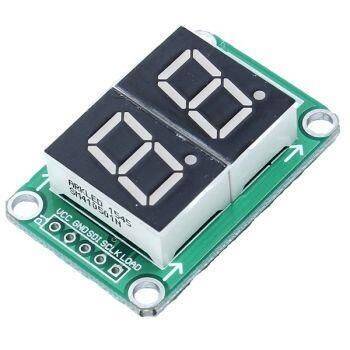

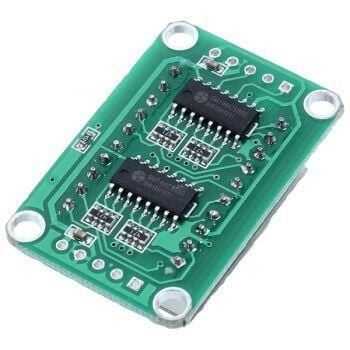

A 7-segment two-digit display, each controlled by a 74HC595 integrated circuit. Each digit has a height of 12.7 mm with bright red illumination. You can use the display with Arduino or a similar microcontroller. The operating voltage is between 3-5VDC.
Specifications:
- Input Voltage: 3 - 5VDC
- Operating Current: 50mA
- Interface: Digital
- Color: Red
- Digit Height: 12.7mm
- Driver chip: 74HC595
Connection:
- VCC +
- GND -
- SDI data
- Shift clock SCLK
- Latch LOAD
