HDMI Extender (RX/TX) via RJ45 CAT5e/CAT6 Cable

HDMI Extender (RX/TX) via RJ45 CAT5e/CAT6 Cable

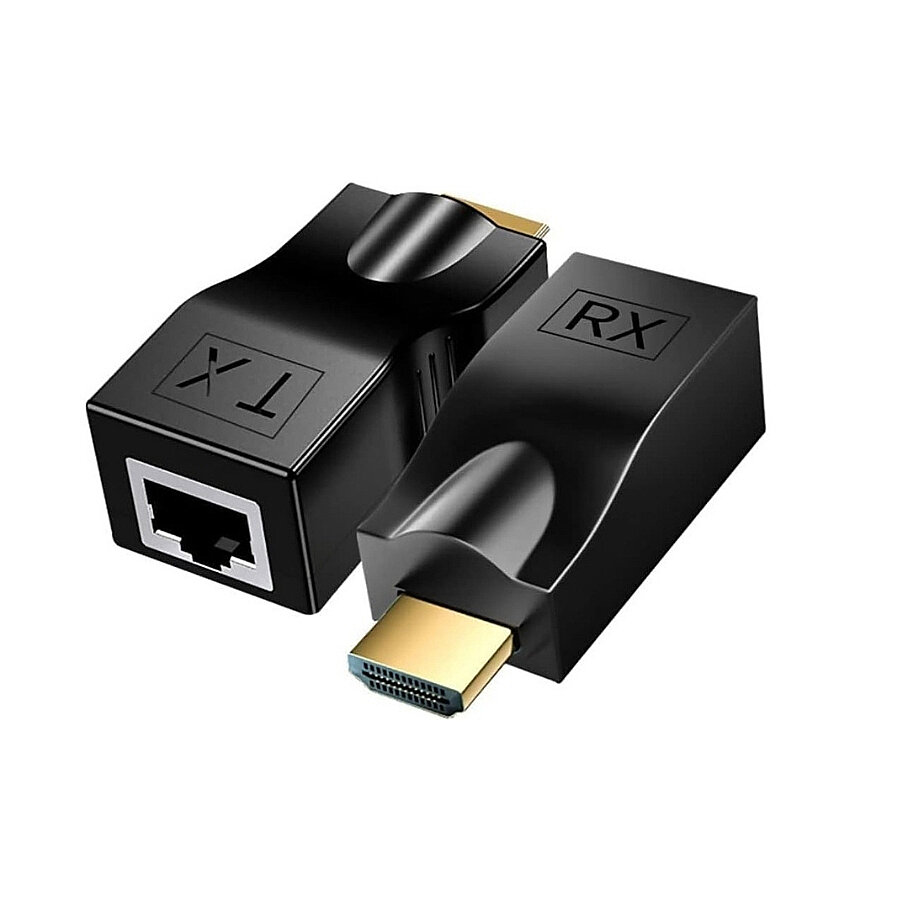

This HDMI extender (RX/TX) via RJ45 CAT5e/CAT6 cable is a CAT-5e/6-based HDTV extender that uses a single CAT-5e/6 cable to transmit 1080p resolution HDTV video up to 30 meters. This device not only overcomes HDTV cable transmission distance limitations but also offers greater flexibility and convenience in cabling thanks to the use of CAT-5e/6 cables.

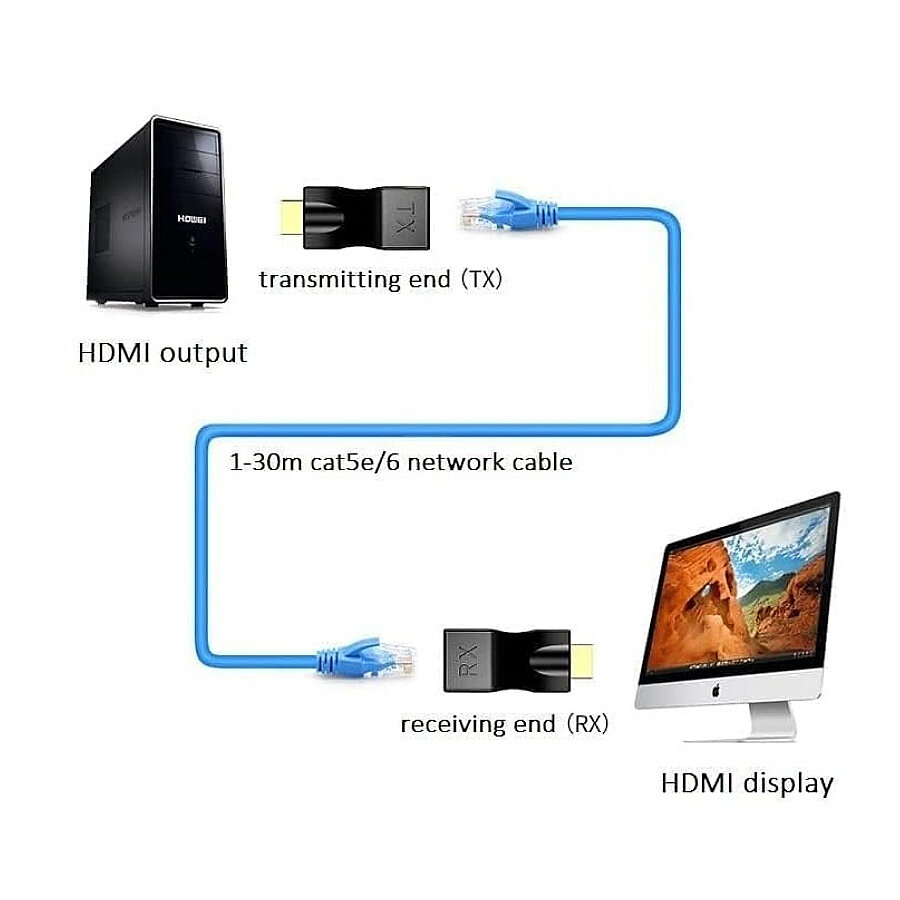

Connection

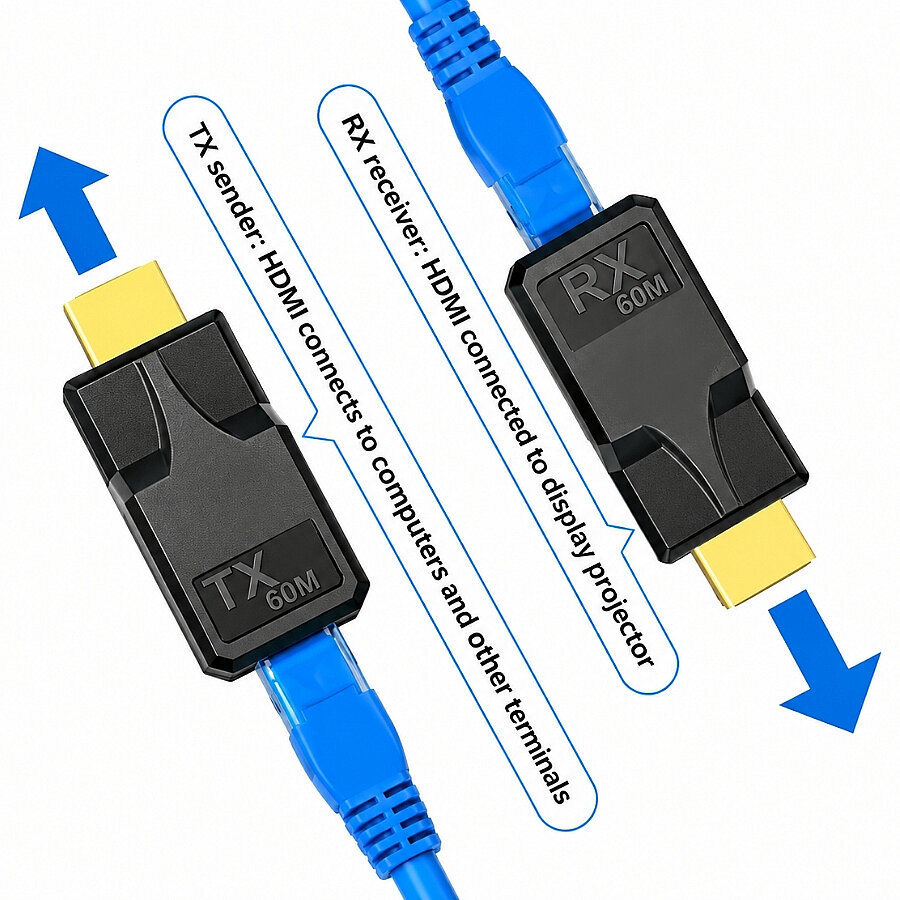

1. Connect the transmitter's HDTV connector to an HDTV signal source that does not require HDCP, such as a computer, laptop, STB, or TV box.
2. Connect a single CAT-5e/6 cable between the transmitter's output and the receiver's input.
3. Connect the receiver's HDTV connector to an HDTV display unit (e.g., HD-LCD, HD-DLP).

Features

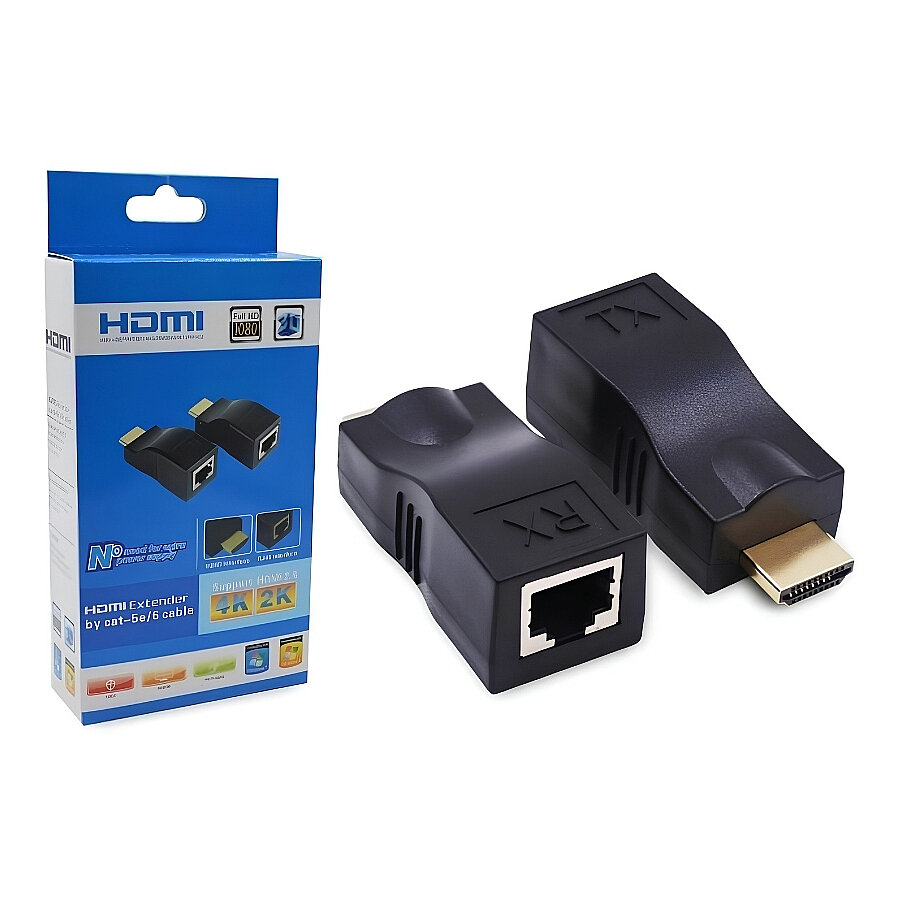

• Supplied as a fully functional module set (a pair) requiring no configuration.
• CAT-5e/6 cable can be used instead of HDTV cable to enable long-distance transmission.
• Complies with the IEEE-568B standard.
• Transmission distance can reach up to 30 meters at 1080p resolution when using CAT-6 cable.

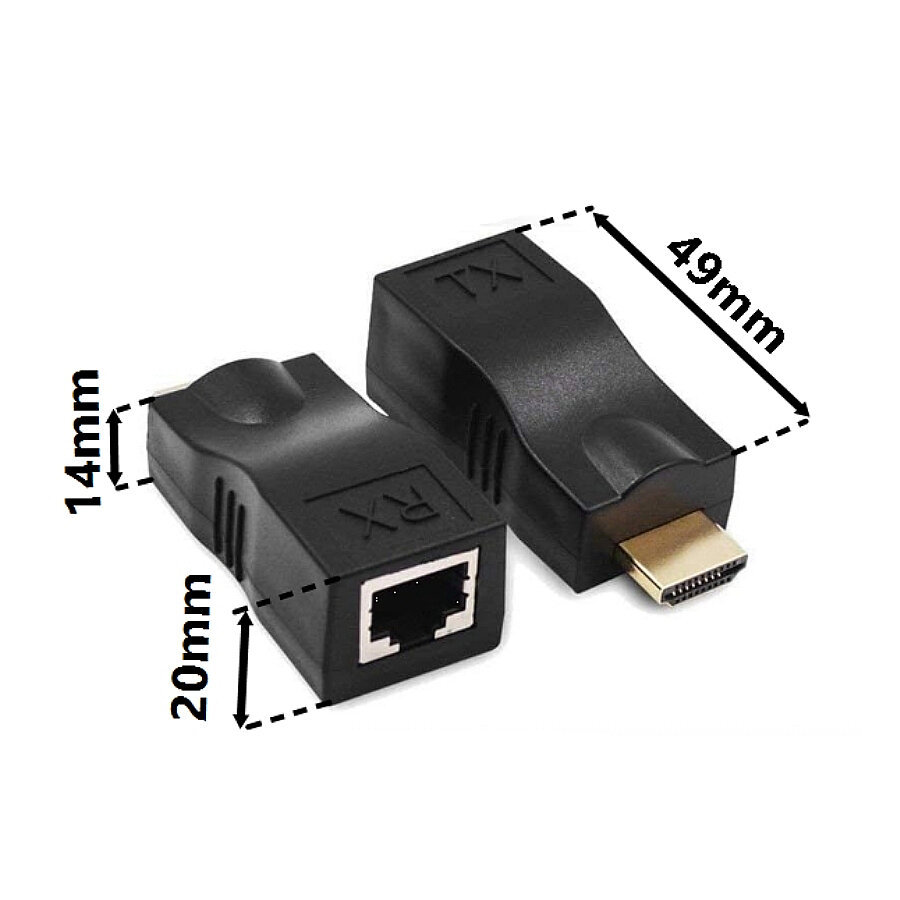

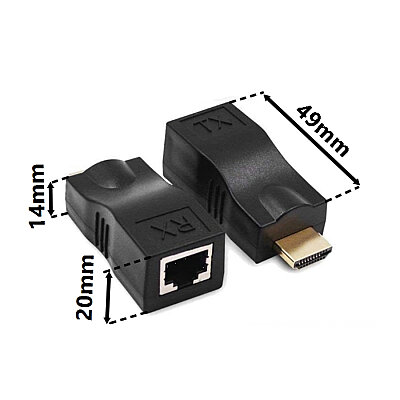

• Compact size.
• No external power supply required.
