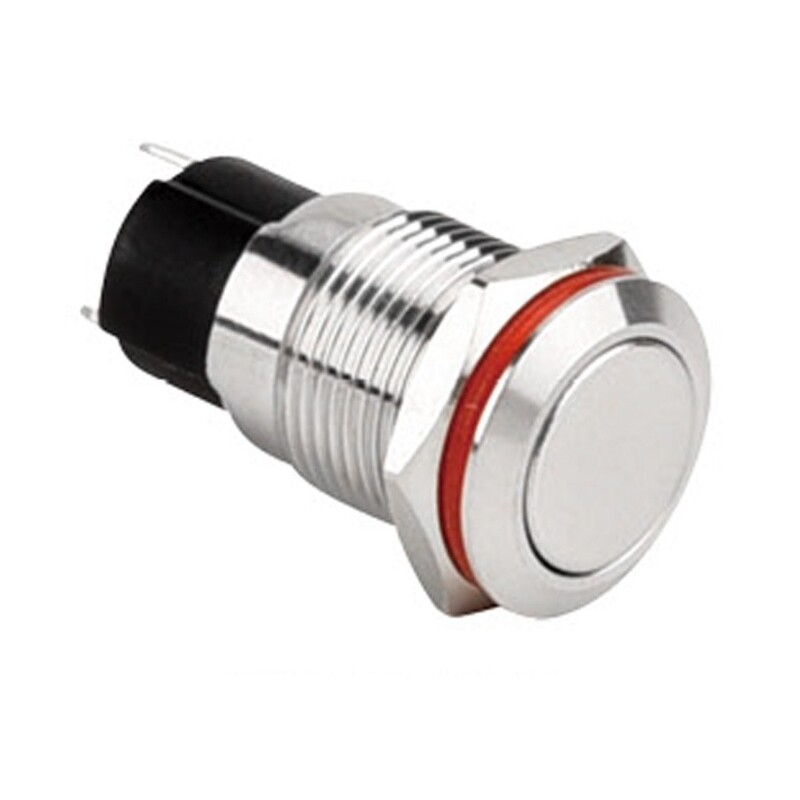

12A-P1 12mm 12-24V Stainless Steel Flat Spring Metal Button

12mm metal button is an IP65 waterproof product that you can use in various industrial applications, electronic projects, mass production projects. . It is made of stainless steel. The product is shipped with a sealing gasket.

Metal buttons are suitable for outdoor and indoor use because they are stainless steel and have IP 65 protection. It is preferred due to these features in places where long-lasting use is required. In addition, as a button pressing structure, they have a much longer lifespan than plastic button types. The spring-loaded model has a lifespan of 500,000 presses, and the key-operated model has a lifespan of 250,000 presses.

12mm Metal Button Types

12mm Metal Button Types can be spring-loaded and key-operated, depending on their usage. They are divided into two as follows. Spring buttons allow voltage to pass as long as they are held down. Models with a switch transmit energy when pressed for the first time, and turn off when pressed again.

The factors to consider when choosing a product are as follows;

Head Type: Protruding or Straight
Light: With or without light
Light Type: With or without Power Icon
Product Type: Key or Spring

This is what you need when choosing a product Details are clearly stated in the product image and name. Please pay attention to the name and image before purchasing.

Technical Specifications:

Operation: Spring-Loaded
Mounting Diameter: 12mm
Material: Stainless Steel
Protection Level: IP65
Voltage: 12-24V
Current: 1.5A
Switch Contacts : 1NO and 1NC
Electrical Working Life: >50000
Compression Life: 500000 (spring model), 250000 (switch model)
Wiring: 26AWG
Operating Temperature: -30 °C ~ 85 °C

For more detailed information, you can access the detailed technical document of the product by clicking the link below.

We can produce for you with special symbols and logos. For special products, you can send an e-mail to info@motorobit.com.

Datasheet

WD12A-P1 12mm Flat Momentary Metal Button
