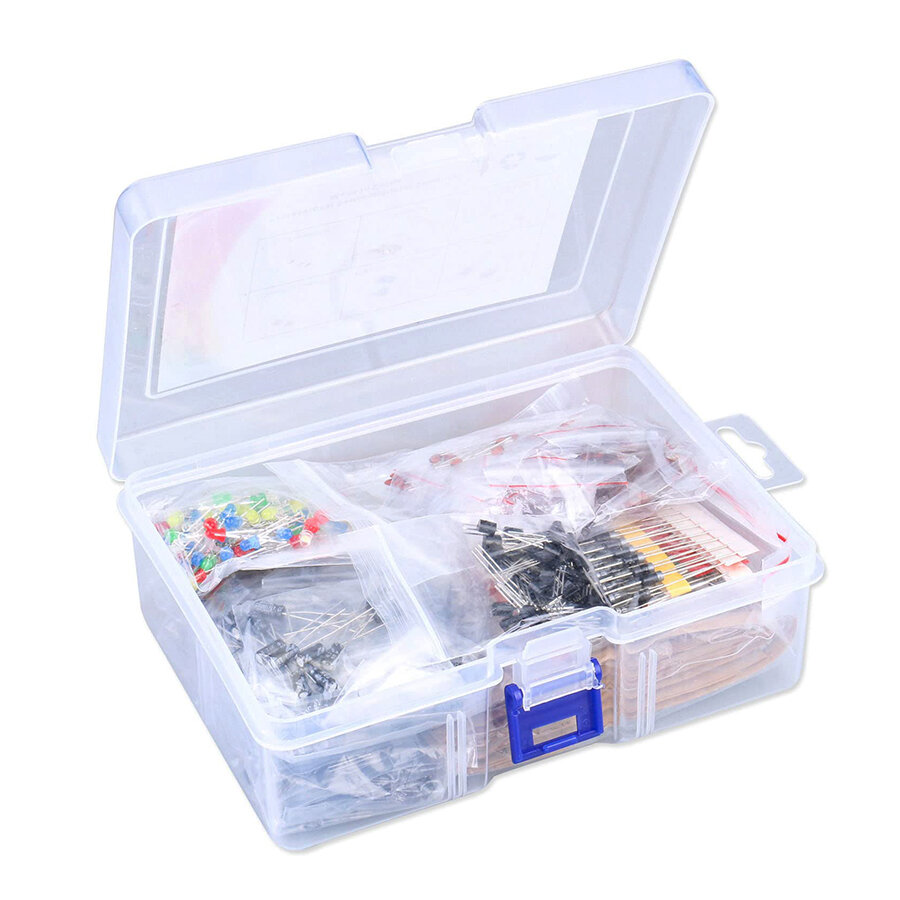

1400-Piece 7-Type Basic Electronic Components Kit
1400-Piece 7-Type Basic Electronic Components Kit
The 1400-Piece 7-Type Basic Electronic Components Kit is a rich-content component set prepared for electronic circuit design, prototyping, education, and repair applications.
Consisting of 7 different component groups in total, this kit offers the most commonly used circuit elements in a single package and is an ideal solution for both hobby electronics enthusiasts and professionals.
The set includes the fundamental building blocks of electronic projects such as resistors, electrolytic capacitors, ceramic capacitors, diodes, and transistors.

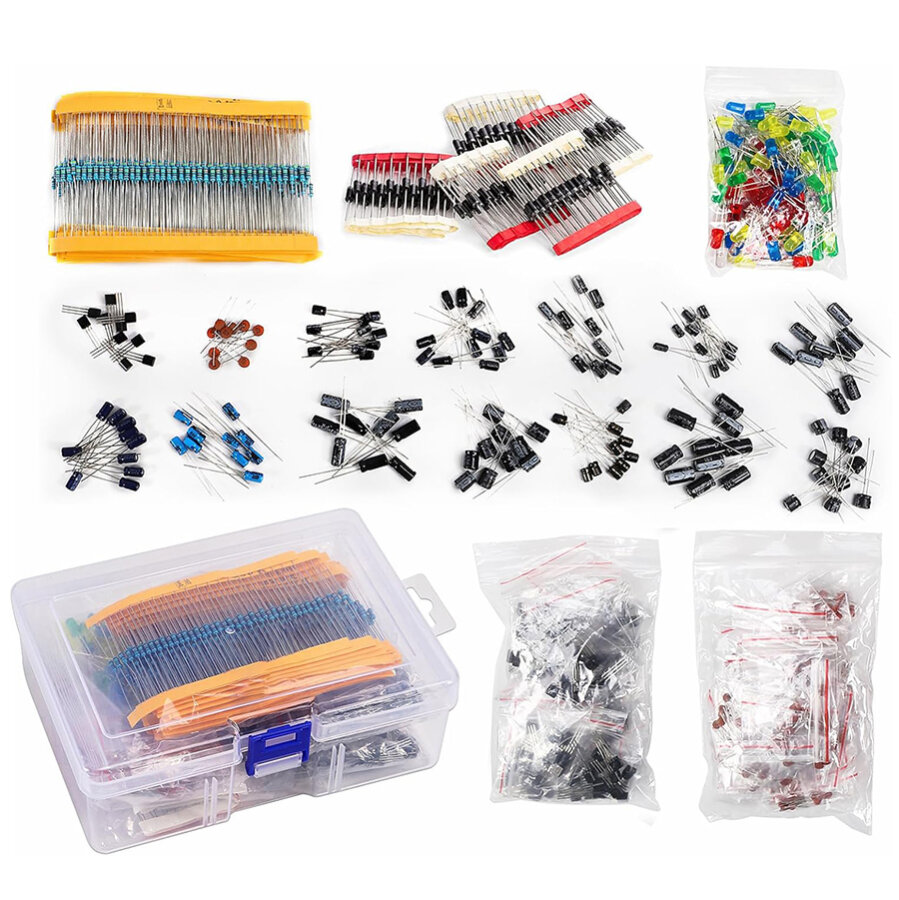

The set contains a total of 1400 components: 100 LEDs, 600 resistors, 120 electrolytic capacitors, 300 ceramic capacitors, 100 diodes, and 180 transistors.
LED Types
| White | 5mm | 20 pcs | 3-3.2V | 20mA |
| Red | 5mm | 20 pcs | 1.8-2V | 20mA |
| Green | 5mm | 20 pcs | 1.8-2V | 20mA |
| Yellow | 5mm | 20 pcs | 2-2.3V | 20mA |
| Blue | 5mm | 20 pcs | 3-3.2V | 20mA |
1/4W Metal Film Resistor Types
The set contains 600 pcs in total (distributed across the resistor values).
0R | 22R | 47R | 100R | 150R | 200R | 220R | 270R | 330R | 470R |
510R | 680R | 1K | 2K | 2.2K | 3.3K | 4.7K | 5.1K | 6.8K | 10K |
20K | 47K | 51K | 68K | 100K | 220K | 300K | 470K | 680K | 1M |
Electrolytic Capacitor Types
| Voltage (V) | Capacitance (µF) | Tolerance | Temperature | Diameter (mm) | Height (mm) | Qty |
|---|---|---|---|---|---|---|
| 50V | 0.22 µF | ±20% | 105°C | 4 | 7 | 10 |
| 50V | 0.47 µF | ±20% | 105°C | 4 | 7 | 10 |
| 50V | 1 µF | ±20% | 105°C | 4 | 7 | 10 |
| 50V | 2.2 µF | ±20% | 105°C | 4 | 7 | 10 |
| 50V | 4.7 µF | ±20% | 105°C | 4 | 7 | 10 |
| 25V | 10 µF | ±20% | 105°C | 4 | 7 | 10 |
| 16V | 22 µF | ±20% | 105°C | 4 | 7 | 10 |
| 16V | 33 µF | ±20% | 105°C | 4 | 7 | 10 |
| 16V | 47 µF | ±20% | 105°C | 4 | 7 | 10 |
| 16V | 100 µF | ±20% | 105°C | 5 | 7 | 10 |
| 16V | 220 µF | ±20% | 105°C | 5 | 7 | 10 |
| 16V | 470 µF | ±20% | 105°C | 6 | 11 | 10 |
Diode Types
- 25x 1N4148
- 25x 1N4007
- 10x 1N5819
- 10x 1N5399
- 10x FR107
- 10x FR207
- 5x 1N5408
- 5x 1N5822
Transistor Types
- 10x S9012
- 10x S9013
- 10x S9014
- 10x S9015
- 10x S9018
- 10x A1015
- 10x C1815
- 10x A42
- 10x A92
- 10x A733
- 10x C945
- 10x S8050
- 10x S8550
- 10x 2N5401
- 10x 2N5551
