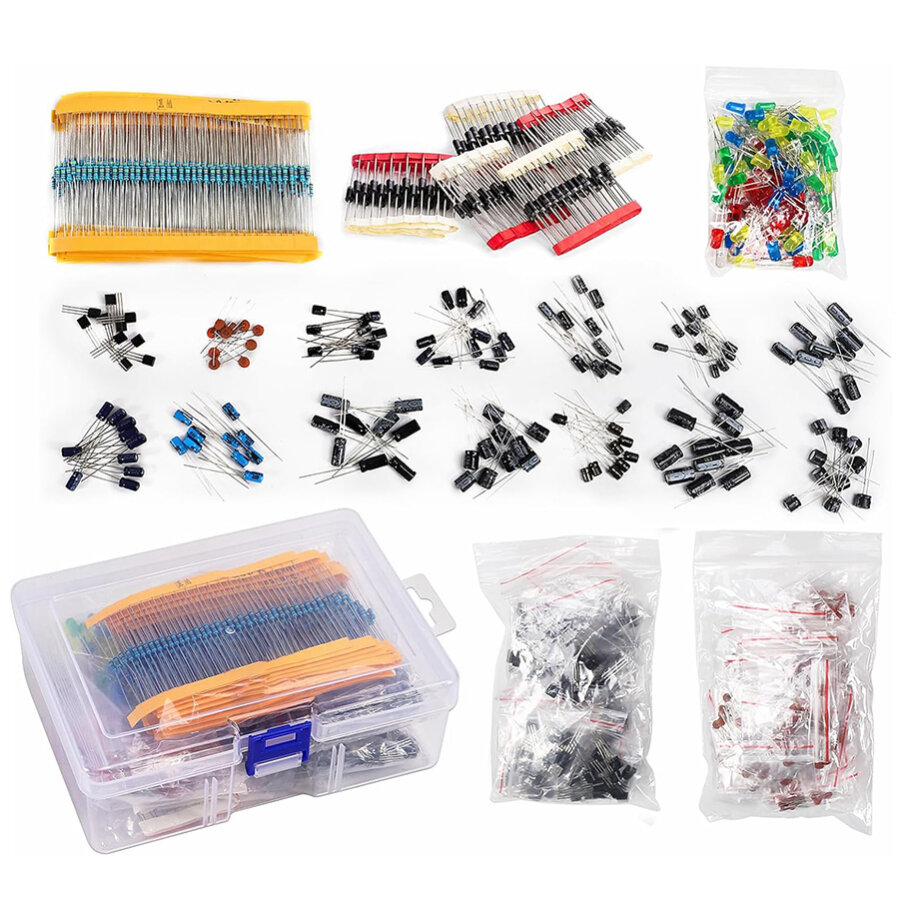

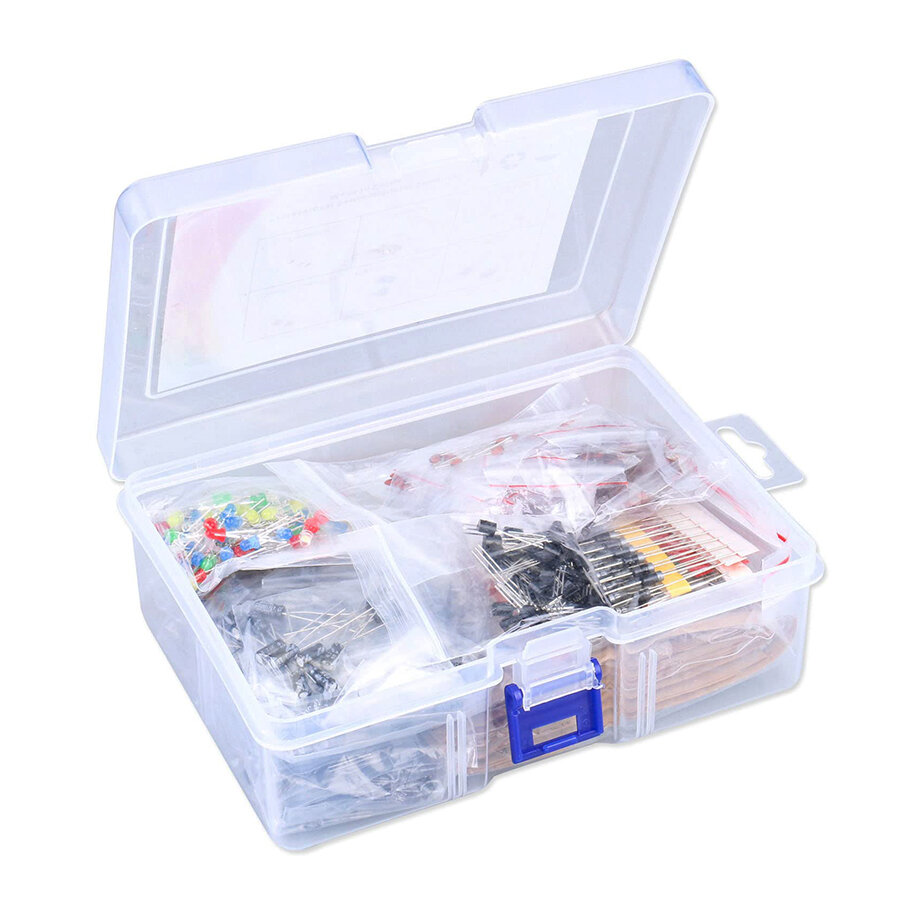

1500-Piece 7-Type Basic Electronic Components Kit
1500 Piece 7 Types of Basic Electronic Components Set
The 1500 Piece 7 Types of Basic Electronic Components Set is a comprehensive component kit designed for electronic circuit design, prototyping, education, and repair applications.
This set, consisting of 7 different component groups in total, offers the most frequently used circuit elements in a single package and is an ideal solution for both hobby electronics enthusiasts and professionals.
The set includes basic building blocks for electronic projects such as resistors, electrolytic capacitors, ceramic capacitors, diodes, and transistors.
The set includes There are exactly 1500 components, including 200 LEDs, 600 resistors, 120 electrolytic capacitors, 300 ceramic capacitors, 100 diodes, and 180 transistors.
LED Types
| White | 3-5mm | Each 20 Pieces | 3-3.2V | 20mA |
| Red | 3-5mm | Each 20 Pieces | 1.8-2V | 20mA |
| Green | 3-5mm | Each 20 Pieces | 1.8-2V | 20mA |
| Yellow | 3-5mm | Each 20 Pieces | 2-2.3V | 20mA |
| Blue | 3-5mm | Each 20 Pieces | 3-3.2V | 20mA |
1/4W Metal Film Resistor Types
The set contains 600 pieces of each resistor type.
10R | 22R | 47R | 100R | 150R | 200R | 220R | 270R | 330R | 470R |
510R | 680R | 1K | 2K | 2.2K | 3.3K | 4.7K | 5.1K | 6.8K | 10K |
20K | 47K | 51K | 68K | 100K | 220K | 300K | 470K | 680K | 1M |
Electrolytic Capacitor Types
| Voltage (V) | Capacitance (µF) | Tolerance | Temperature | Diameter (mm) | Length (mm) | Qty |
|---|---|---|---|---|---|---|
| 50V | 0.22 µF | ±20% | 105°C | 4 | 7 | 10 |
| 50V | 0.47 µF | ±20% | 105°C | 4 | 7 | 10 |
| 50V | 1 µF | ±20% | 105°C | 4 | 7 | 10 |
| 50V | 2.2 µF | ±20% | 105°C | 4 | 7 | 10 |
| 50V | 4.7 µF | ±20% | 105°C | 4 | 7 | 10 |
| 25V | 10 µF | ±20% | 105°C | 4 | 7 | 10 |
| 16V | 22 µF | ±20% | 105°C | 4 | 7 | 10 |
| 16V | 33 µF | ±20% | 105°C | 4 | 7 | 10 |
| 16V | 47 µF | ±20% | 105°C | 4 | 7 | 10 |
| 16V | 100 µF | ±20% | 105°C | 5 | 7 | 10 |
| 16V | 220 µF | ±20% | 105°C | 5 | 7 | 10 |
| 16V | 470 µF | ±20% | 105°C | 6 | 11 | 10 |
Diode Types
- 25x 1N4148
- 25x 1N4007
- 10x 1N5819
- 10x 1N5399
- 10x FR107
- 10x FR207
- 5x 1N5408
- 5x 1N5822
Transistor Types
- 10x S9012
- 10x S9013
- 10x S9014
- 10x S9015
- 10x S9018
- 10x A1015
- 10x C1815
- 10x A42
- 10x A92
- 10x A733
- 10x C945
- 10x S8050
- 10x S8550
- 10x 2N5401
- 10x 2N5551
- 10x 2N2222
- 10x 2N3904
- 10x 2N3906
