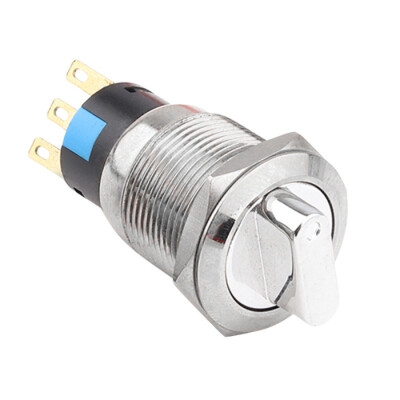

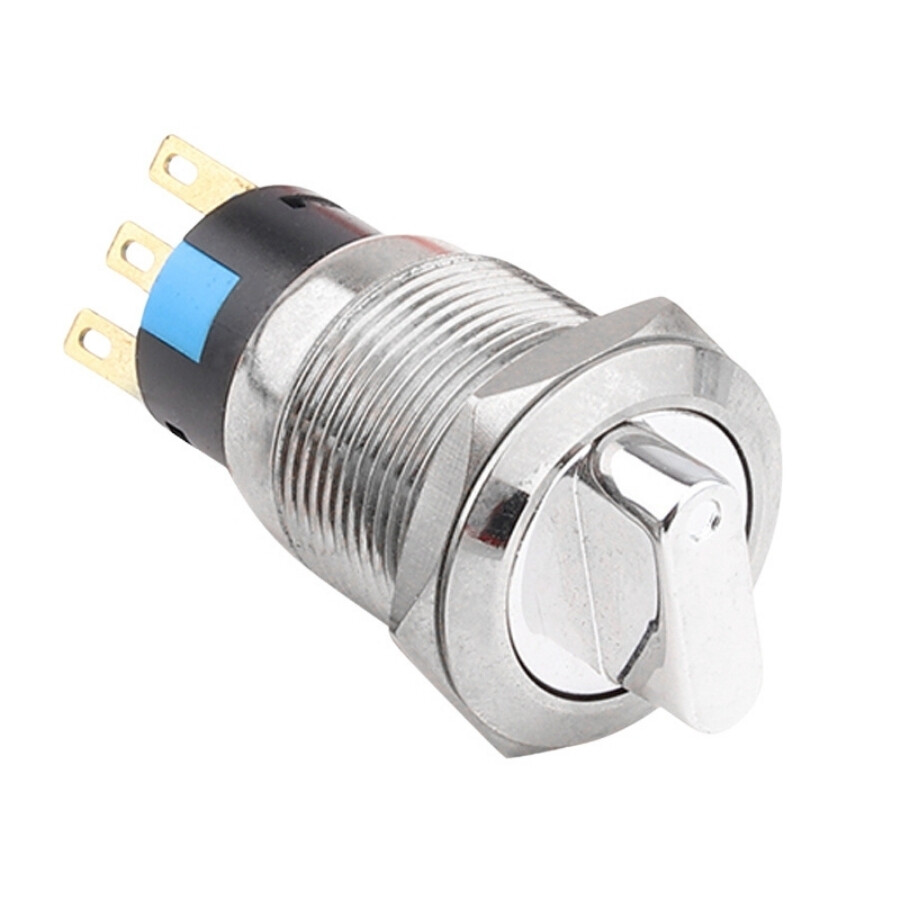

19X-P1 19mm Permanent Latch Button 0-1
19X-P1 19mm Permanent Latch Button 0-1. It is a product that can be opened and closed by turning the latch on it. When the latch button is turned, it opens the NO terminal located behind it and closes the NC terminal. This situation does not change until the switch is returned to its previous position.
Latch Button is a product with IP66 waterproofness that you can use in various industrial applications, electronics projects and mass production projects. It is made of stainless steel. The product is shipped with a sealing gasket.
Since it is stainless steel and has IP 66 protection, the Latch Button is suitable for outdoor and indoor use. It is preferred due to these features in places where long-lasting use is required.
Technical Specifications:
- Switching Voltage: 250V AC/DC Max.
- Current: 3A Max.
- Contact: 1NO 1NC

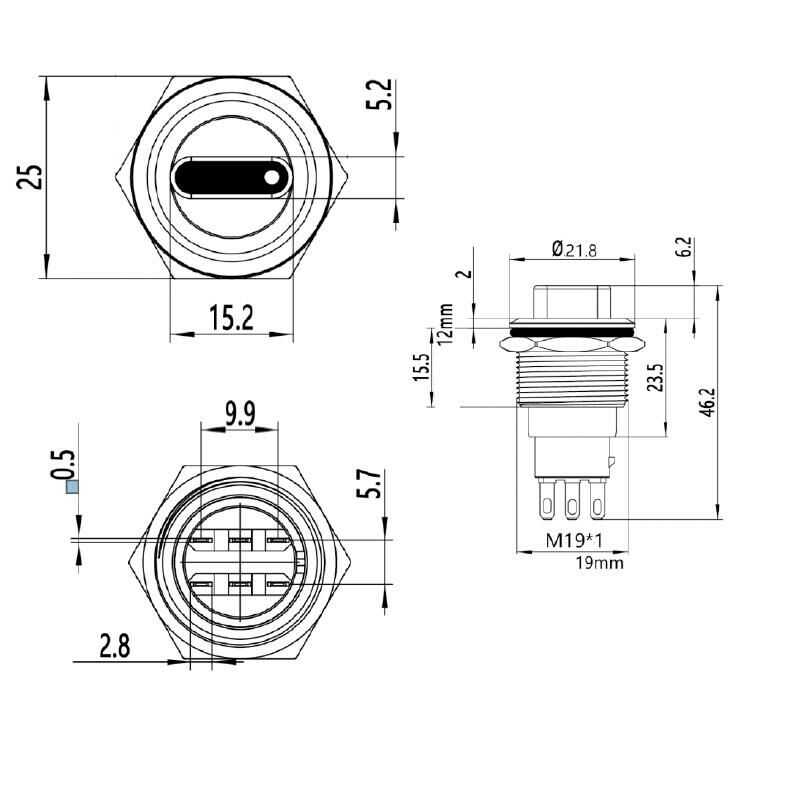

- Mounting Diameter: 19mm
- Material: Stainless Steel
- Waterproof Level: IP66
- Wiring: 20AWG
- Insulation resistance: ≥ 1000mΩ
- Operating Temperature: -30 °C ~ 85 °C
For more detailed information, click on the link below to find detailed information about the product. You can access the technical documentation.
