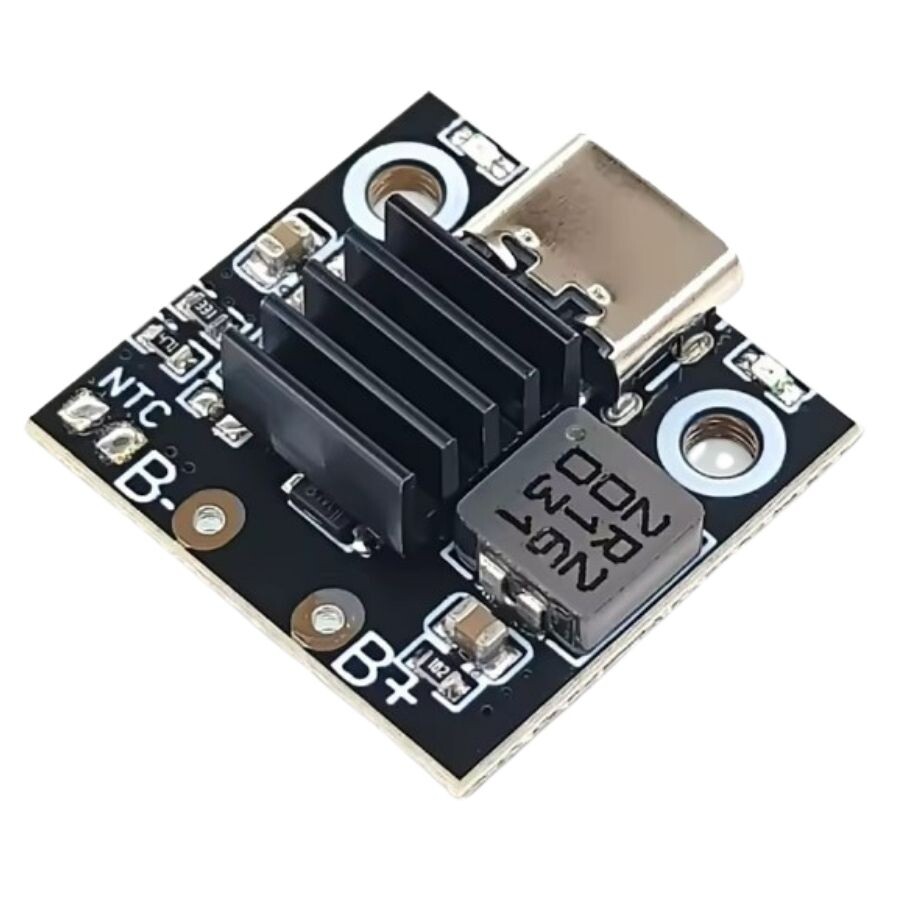

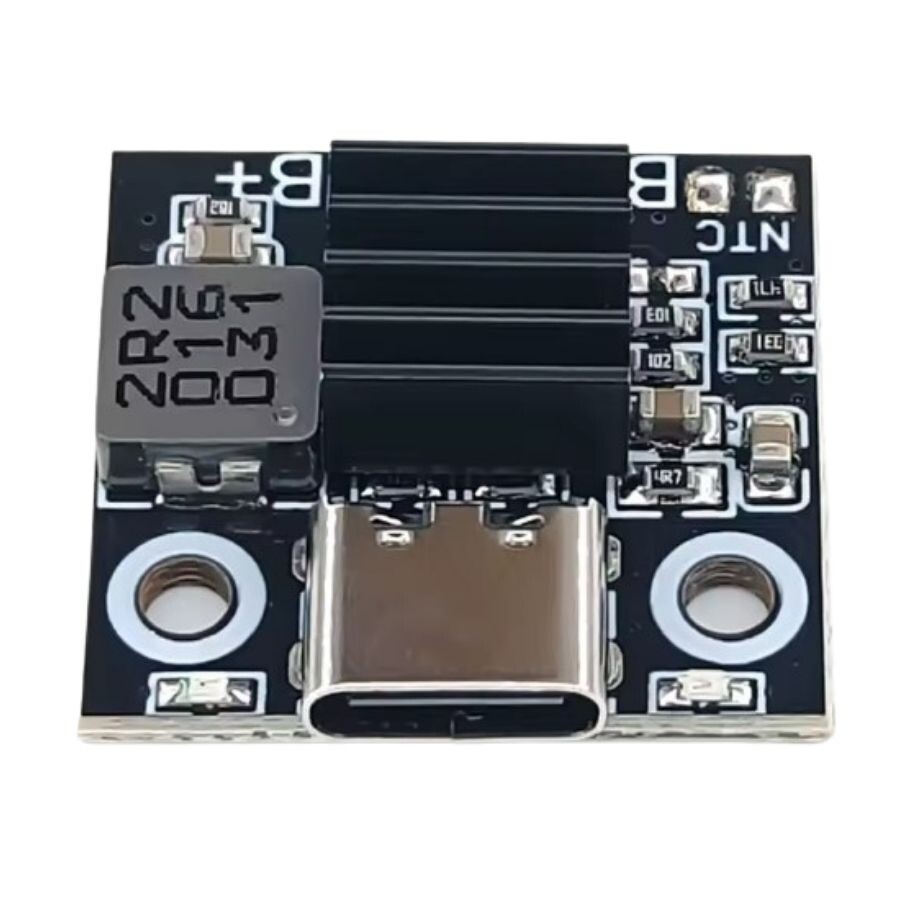

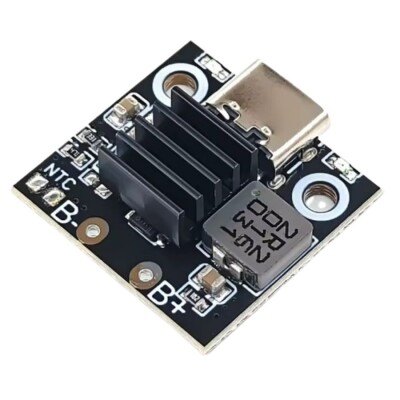

1S 3.6A Type-C Li-ion & Lipo Battery Charging Circuit
The 1S 3.6A Type-C Li-ion & Lipo Battery Charging Circuit is a charging module for 5V rechargeable lithium-ion batteries. It features up to 93% output efficiency, automatic output and current recognition, and adapter adaptation. Thanks to its low power consumption, it does not require a feedback diode. The module has multiple protection features against overcharging; an output short-circuit protection board and over-temperature protection are also available. Operating temperature range: -40°C to 85°C.
Charging indicator: Red light indicates charging, blue light indicates full charge.
Specifications
- Supply Voltage: 5-20VDC (Type-C)
- Charging Current: 3.6A
- Supported Battery: 1S Lithium Ion
- Overcurrent, overvoltage and short circuit protection
- Mounting Hole Diameter: 2.6mm
- Distance Between Mounting Holes: 16mm
- Dimensions: 22x21mm
