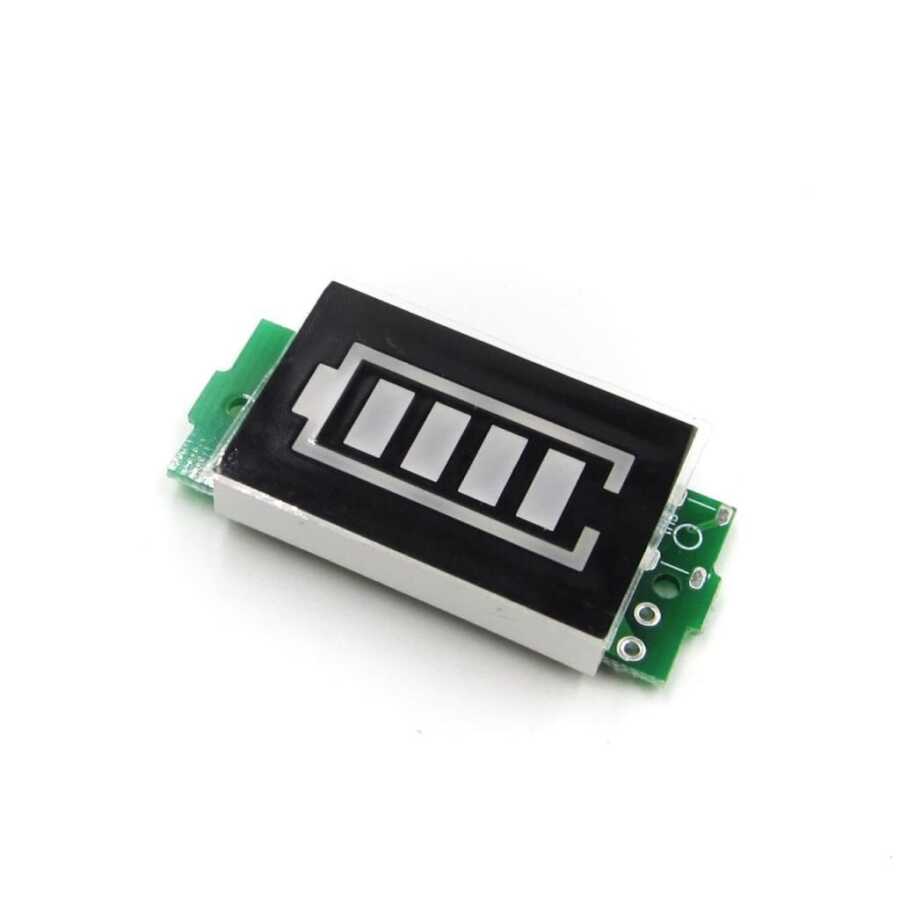

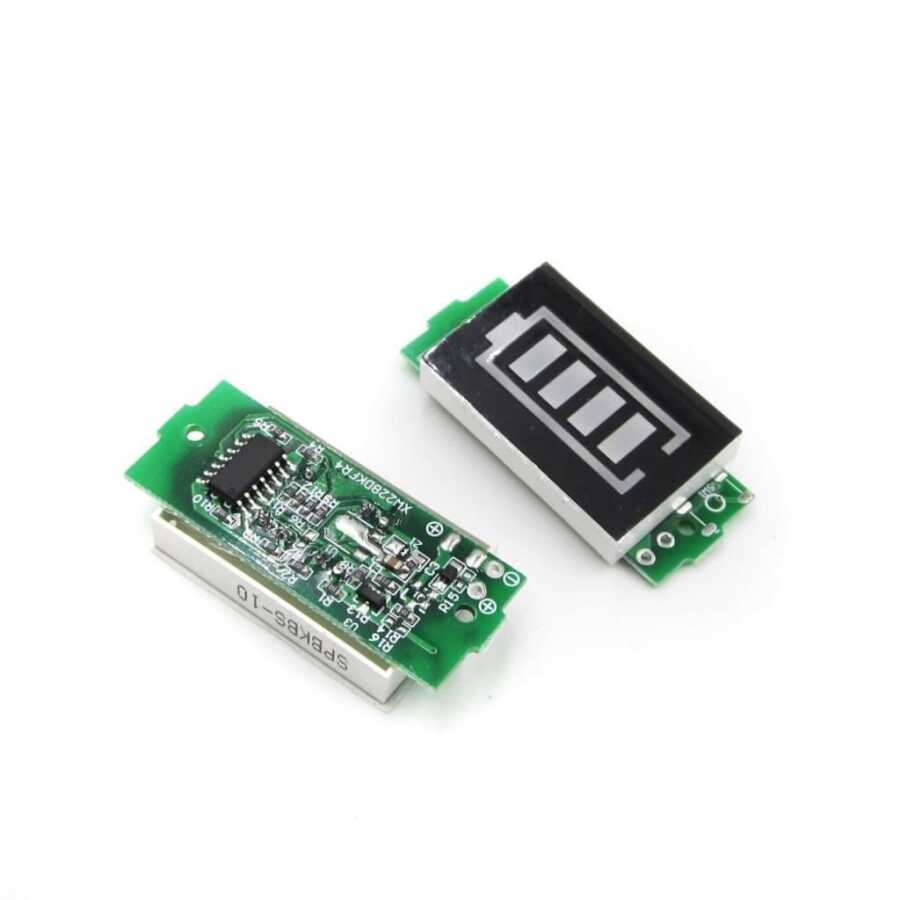

1S LiPo Battery Capacity Indicator
This lipo battery capacity indicator allows you to instantly see the status of your battery. Compatible with 3.7V 1S lipo batteries.

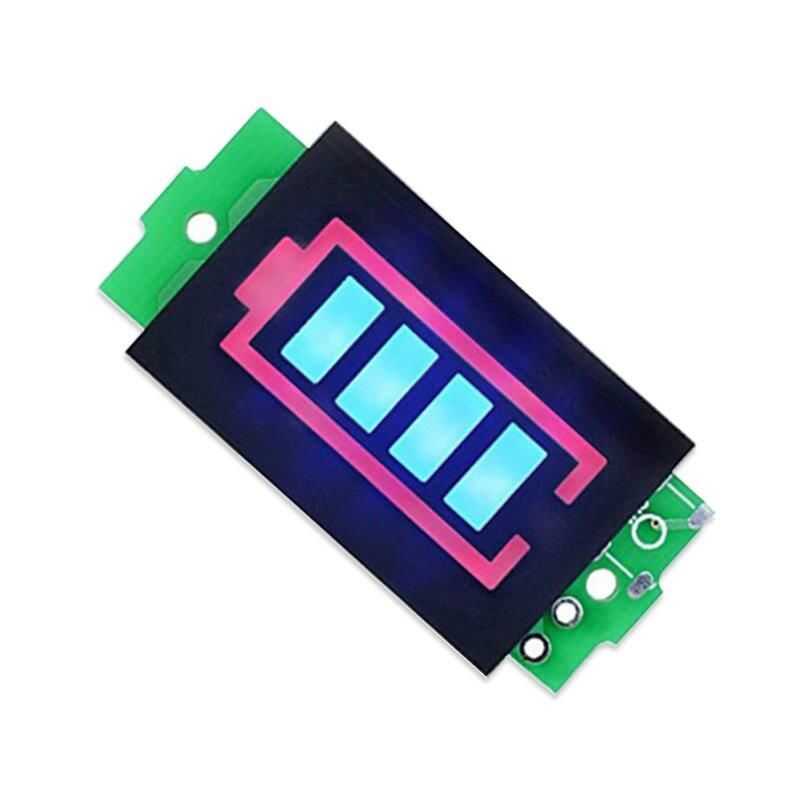

Display Battery Indicator :
- Under 3.3V, only the red battery frame lights up.
- 1 bar lights up between 3.3V – 3.5V.
- 2 bars light up between 3.5V – 3.7V.
- 3 bars light up between 3.7V – 3.9V
- 4 bars light up above 3.9V.
Connection:
Black cable is connected to the "-" end.
Red cable " It is connected to the +" end.
After connecting the positive and negative terminals of the test panel to the positive and negative side of the tested battery, it will show the battery level.
Technical Specifications
- Compatible with 3.7V 1S lipo batteries
- Dimensions: 45mm x 20mm x 8mm
