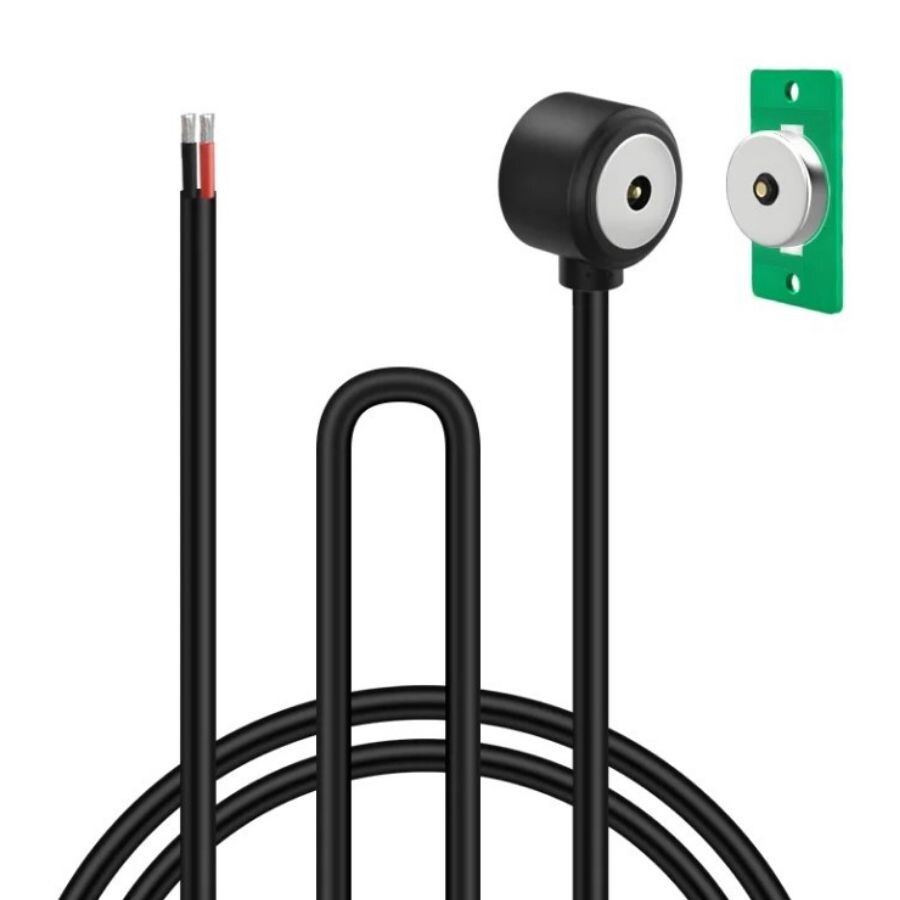

2-Pin 15mm 90C Wired PCB Pogo Pin Magnetic Connector Set

2-Pin 15mm 90C Wired PCB Pogo Pin Magnetic Connector Set

2-Pin 15mm 90C Wired PCB Pogo Pin Magnetic Connector Set has a current carrying capacity of 10A in the range of 5-36V. It is sent as a Male - Female set. When the connector parts come close to each other, their magnets stick directly to each other.

Features:

• Current: 10A
• Voltage: 5-36V
• Magnet Material: N45 NdFeB
• Magnet Strength: 600gf / 60N
• Cable Thickness: 16AWG
• Cable Length: 1m
• Pogo Size: 15x5mm (Excluding Pin)
• Card Size: 27x16mm
