20-LED 5730 SMD 5V Type-C LED Module

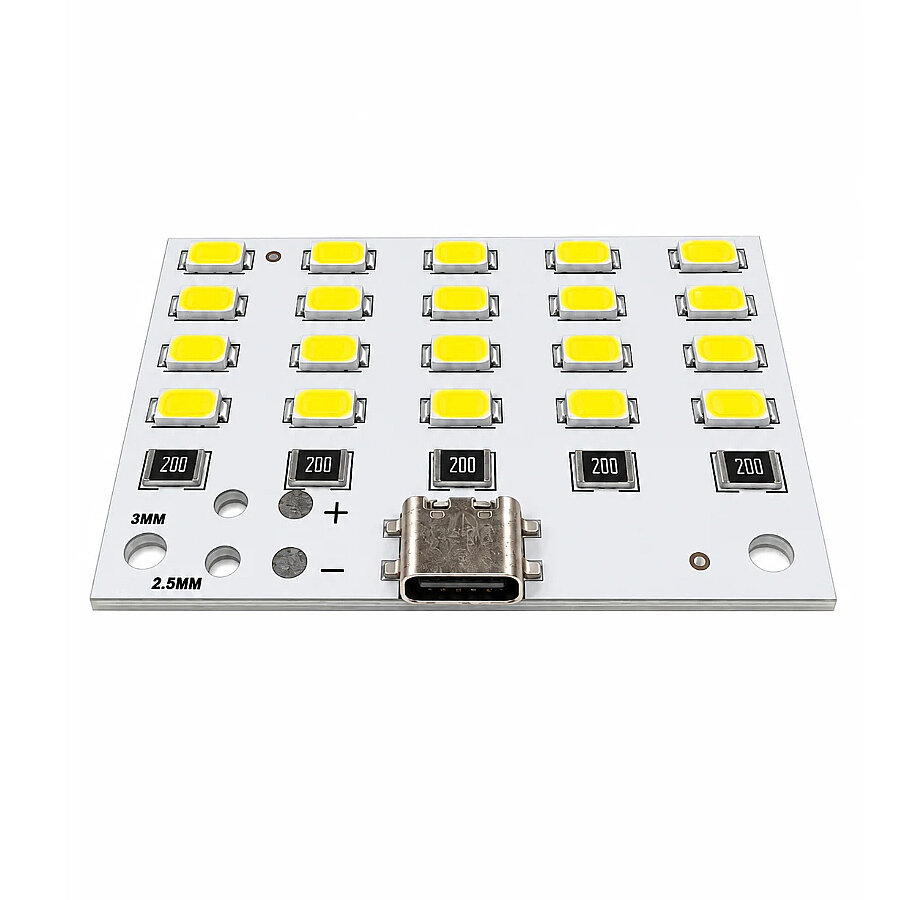

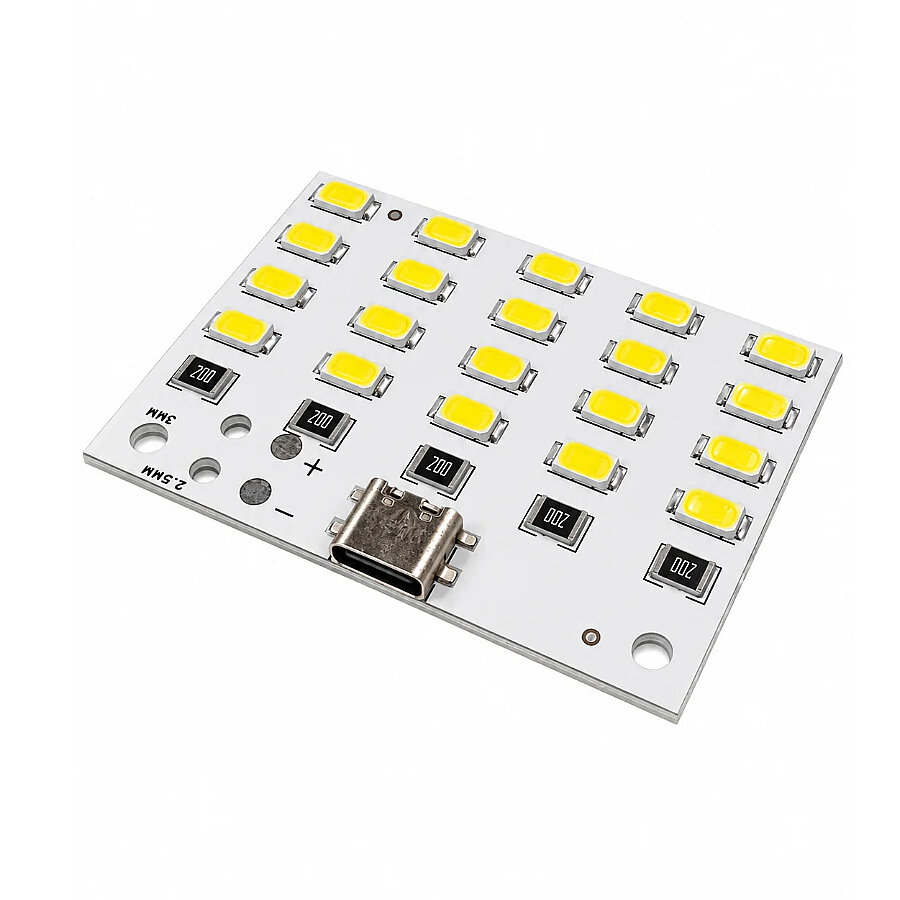

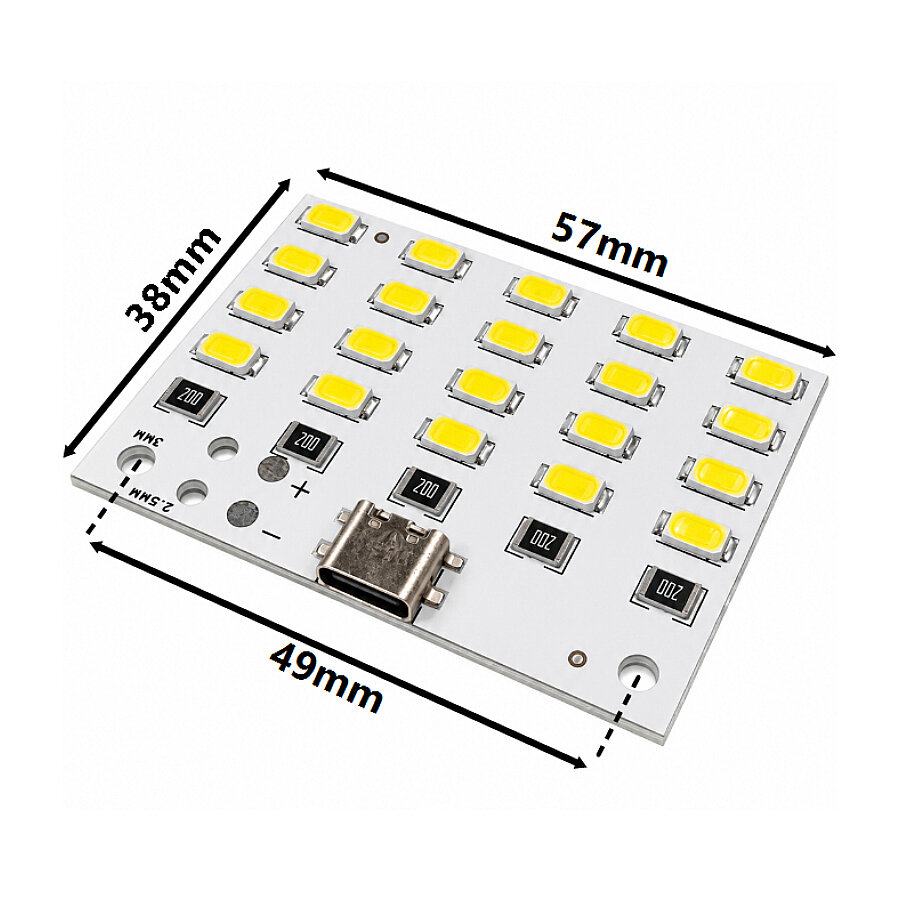

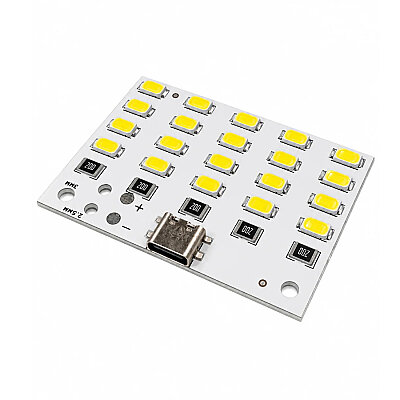

The 20-LED 5730 SMD 5V Type-C LED Module is a compact lighting board featuring 20 high-brightness 5730 SMD white LEDs. Operating on 5V DC, the module can be easily powered by common sources such as power banks or computer USB ports thanks to its Type-C connection.
To ensure more effective heat dissipation, the module utilizes an aluminum-based PCB instead of a standard FR4 PCB. The aluminum base helps distribute the heat generated by the LEDs across the board surface more efficiently. Therefore, when used for extended periods in fully enclosed, airtight spaces lacking heat ventilation, the operating temperature should be monitored.
Specifications
- Operating Voltage: 5V DC
- Operating Current: Approx. 300mA
- Power Consumption: Approx. 1.5W
- Power Input: Type-C
- Number of LEDs: 20
- LED Type: 5730 SMD LED
- Light Color: White
- Alternative Power Input: +/- solder pads on the PCB
