220V Mini Motion PIR Sensor - Automatic Lamp Sensor

220V Mini Motion PIR Sensor - Automatic Lamp Sensor

The 220V Mini Motion PIR Sensor - Automatic Lamp Sensor detects day and night. When the product detects motion in the dark, it activates the output. It is a motion-based sensor. After detecting motion, it keeps the load on for 45 seconds. This means the lamp operates for 45 seconds. Then it automatically turns off.

You can use it in applications with power levels below 40W. Switching at high power may damage the product and damage connected devices. Connect 220V to long cables. Connect the load and lamp to short cables. It is important to avoid incorrect connections. Make sure the power is off when making connections.

Note:Use with power levels below 40W. LED or energy-saving bulbs, etc., may be used. Switching at high power levels will damage the product.

Features

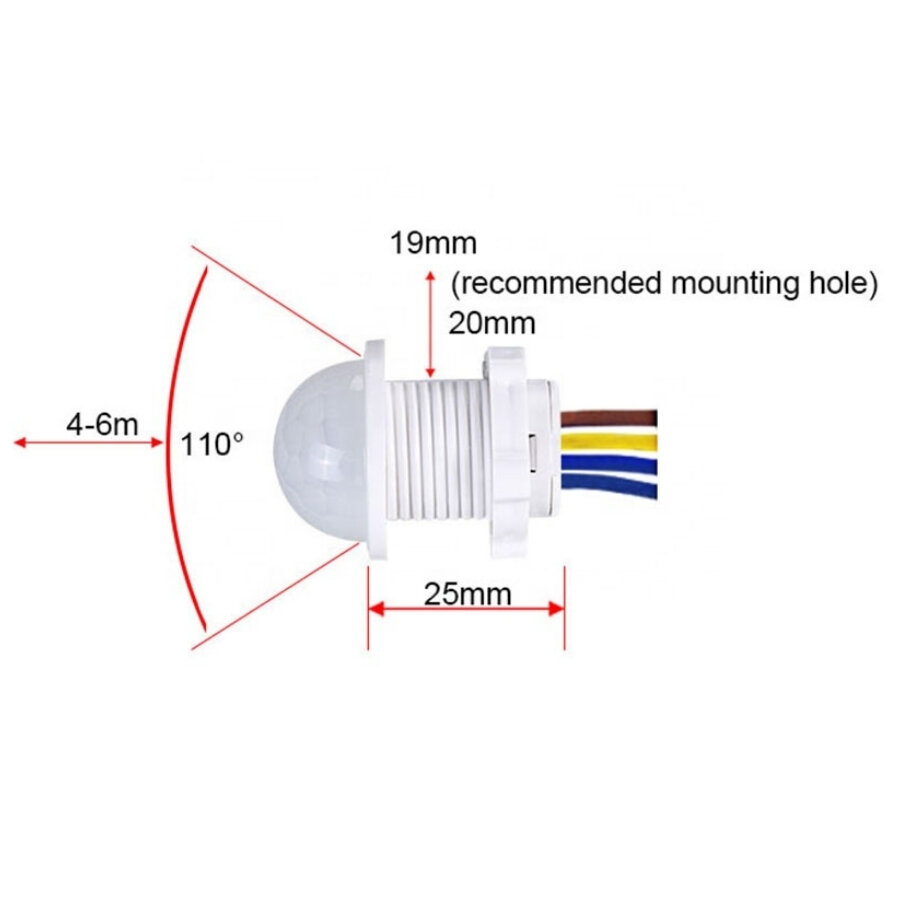

• Recommended mounting hole diameter: approximately 20 mm

• Detection range: approximately 4-6 m

• Delay time: approximately 45 seconds

• Illumination angle: 110°

• Operating voltage: 110-240 V

• Power: ≤40 W

• Operating temperature: -20-45 ℃
