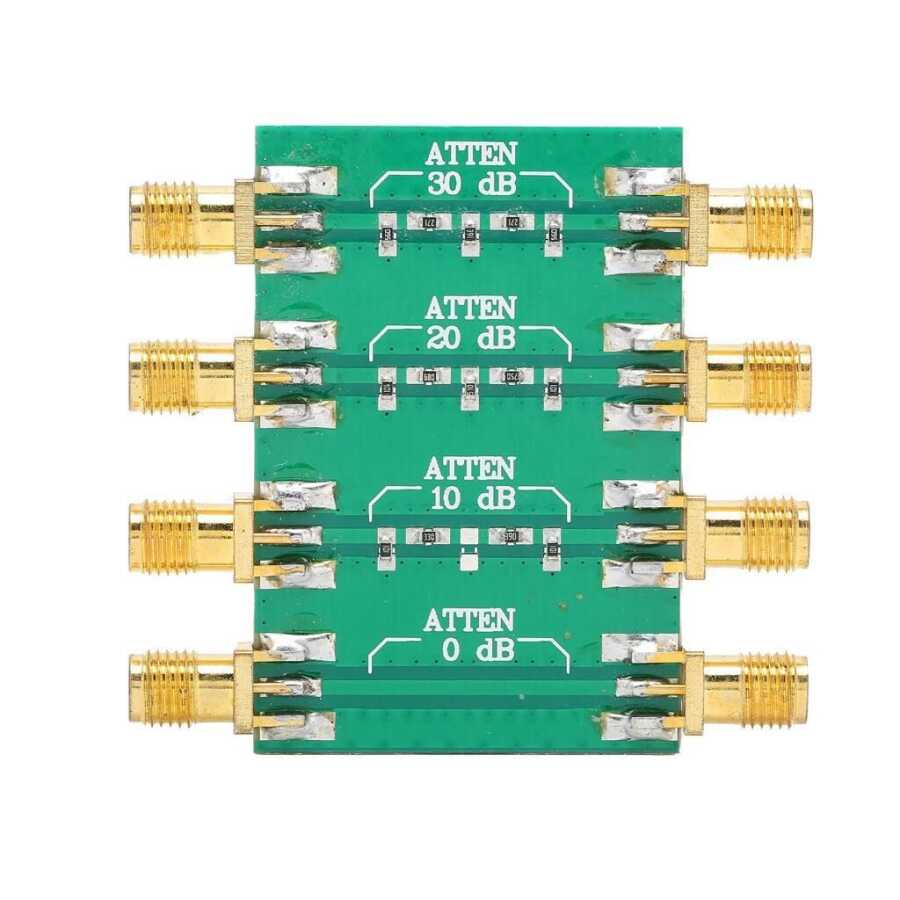

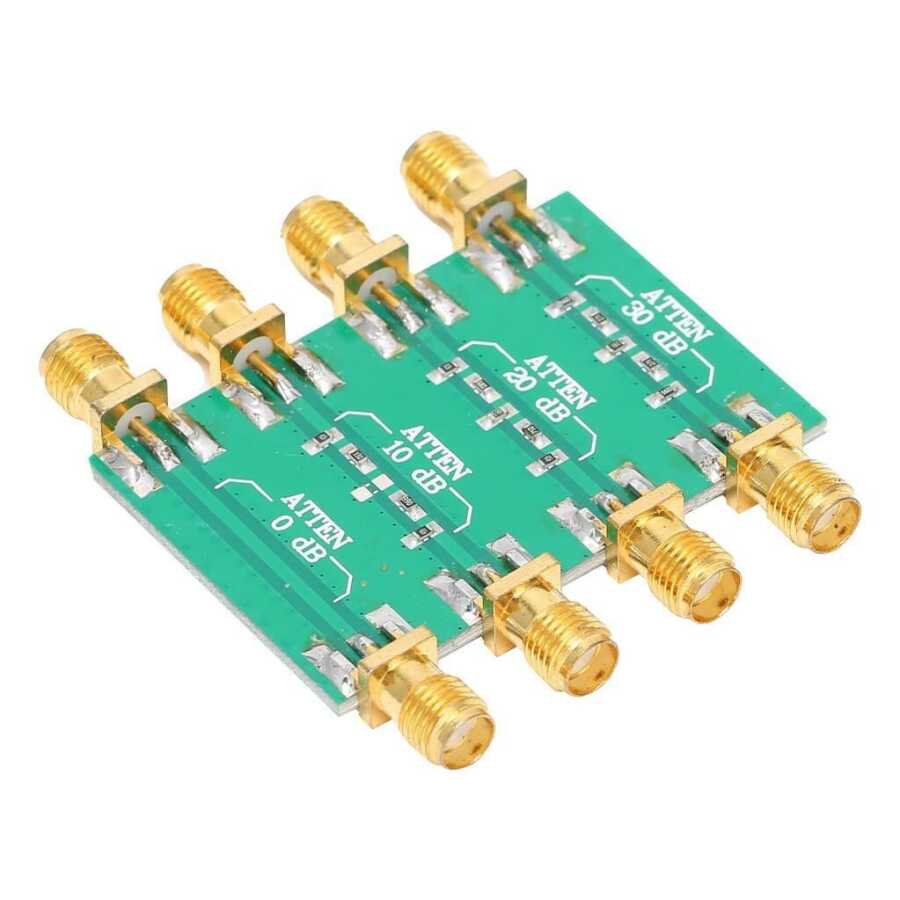

23DBm DC 4.0GHz 200mW RF Fixed Attenuator

Both inputs are implemented in differential circuits, so that the input signals are none and only the multiplication signal appears at the output. Double-balanced mixers are more complex and require higher excitation levels than unbalanced and mono-balanced designs. Standard SMA female connectors are suitable for connecting most devices.

Specifications

Frequency range: DC - 4.0GHz

Maximum power: 23dBm (200mW)

Standing wave ratio: ≤ 1.20

System impedance: 50Ω

RF interface: SMA dual female

Direct: 0dB (reference)

Level 1: 10 ± 0.8 dB

Level 2: 20 ± 1.1 dB

Level 3: 30 ± 1.5dB
