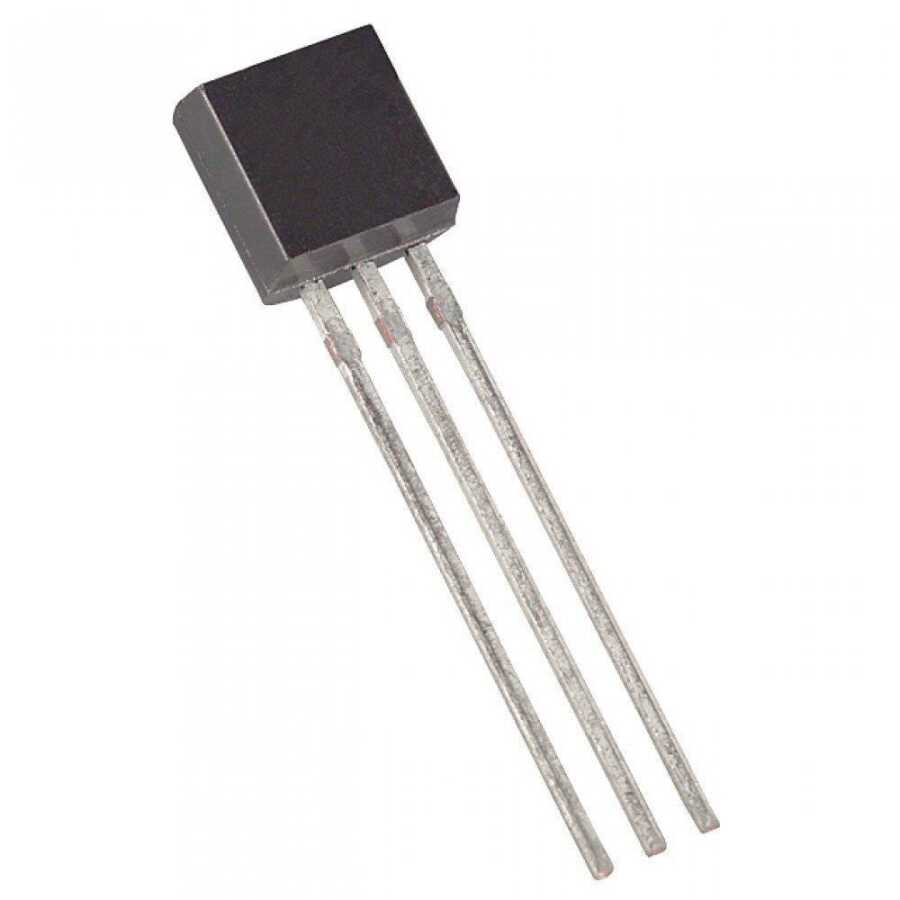

2N3906 - TO92 PNP Transistor

2N3906 is a widely used transistor. This is also a famous transistor among hobbyists and students because it has been used in a wide variety of electronic hobby and educational projects. The transistor is manufactured to perform general purpose tasks in electronic circuits, so it can be used for any general purpose requirement in electronic circuits that fall within the maximum specification values. The transistor's maximum collector current is 200mA, so it can be used to drive any load that drops below 200mA or 0.2A. Additionally, its maximum collector loss value and DC current gain value make it ideal for use in a wide variety of simple audio frequency applications.

Equivalent Transistors:

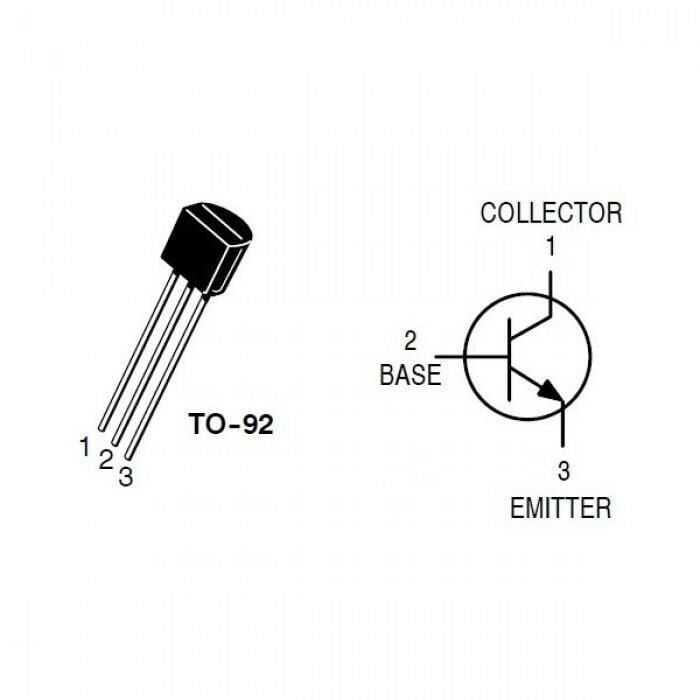

BC557 , 2N2907, BC556 , A1015, C945 , 2N4403, 9014 , BC527, BC558, 2N3906 may differ from BC559 (pin configuration of equivalent transistors, so in It is always advisable to confirm the pin configuration of the transistor if you are changing the circuit.

Areas of Use

Switching loads below 200mA
Audio amplifier
Audio Preamplifier
Sensor circuits

Product Code	2N5457
Transistor Type	N Channel JFET
Breakdown Voltage (Max)	40V
Collector Current (Ic) (Max)	200mA
Power - Max	625mW
Package Type	TO-92

2N3906 Datasheet
