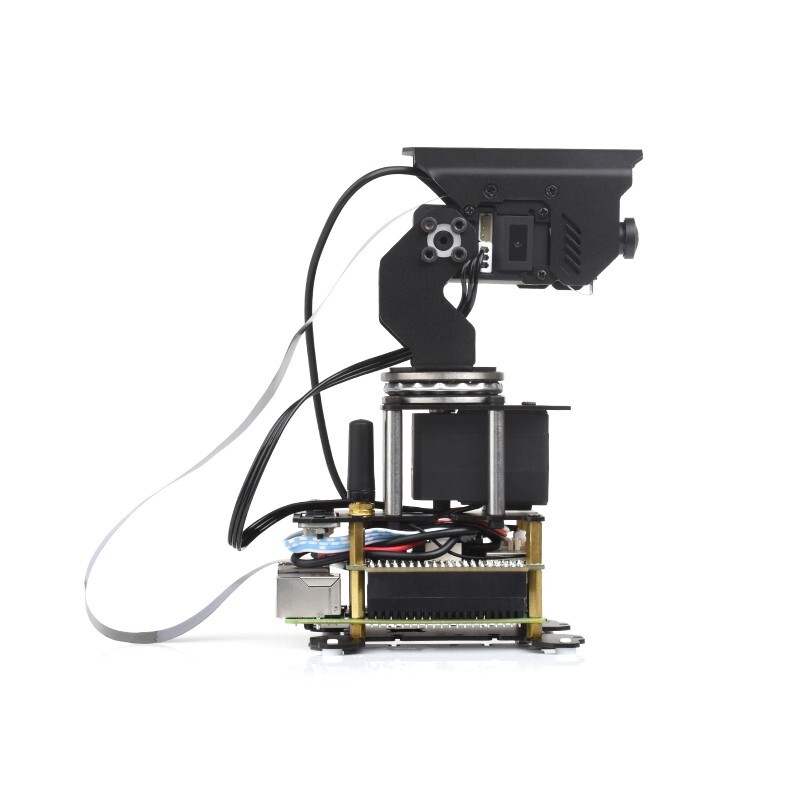

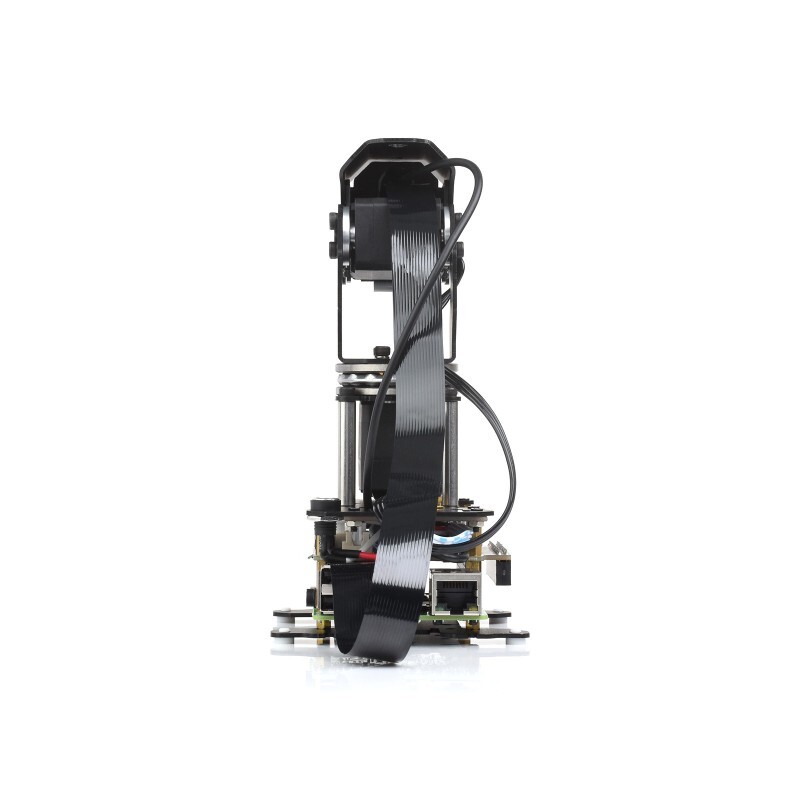

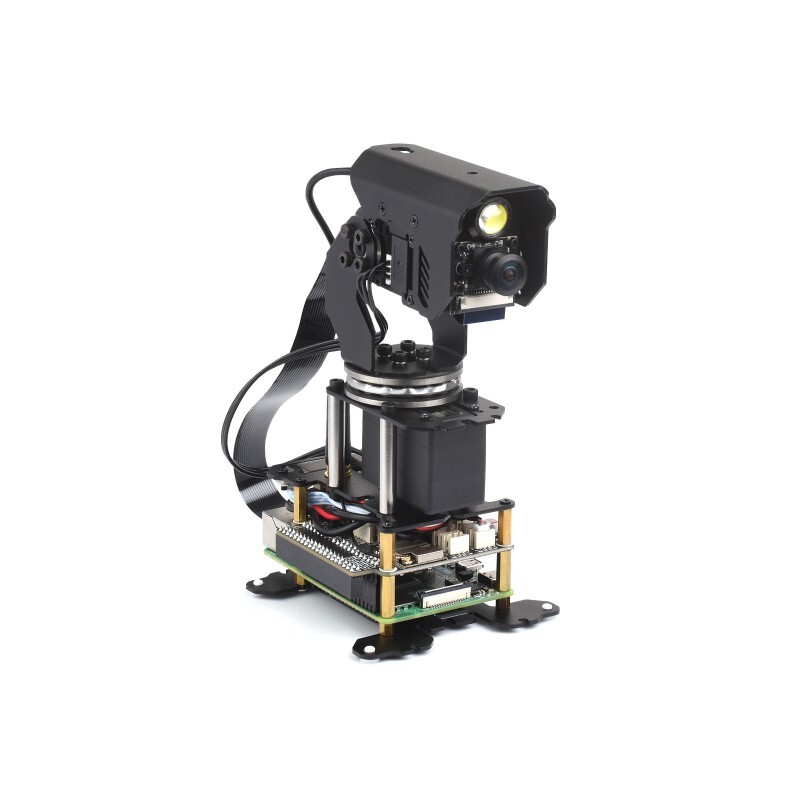

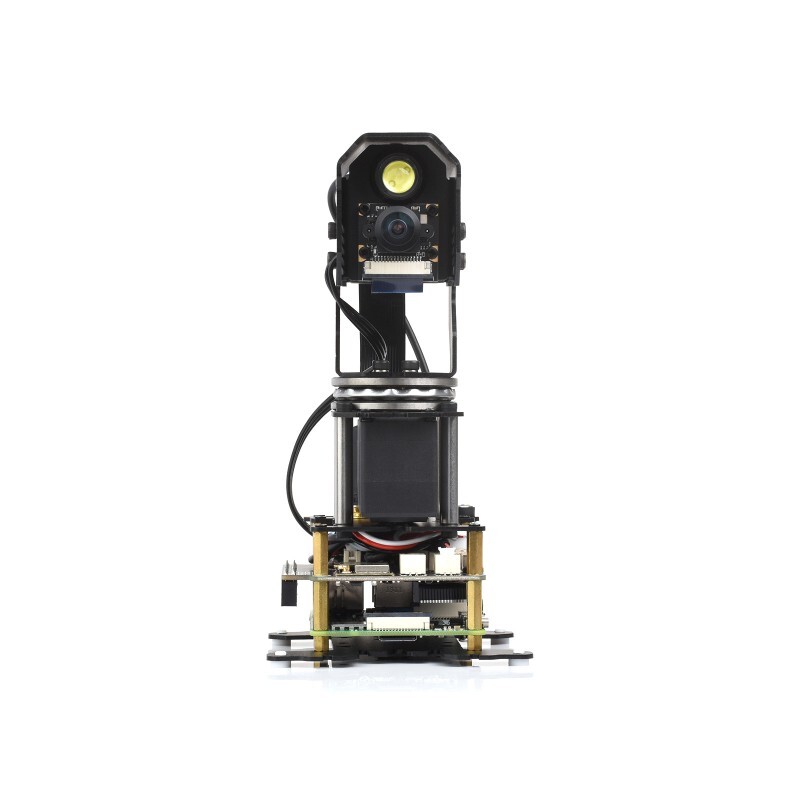

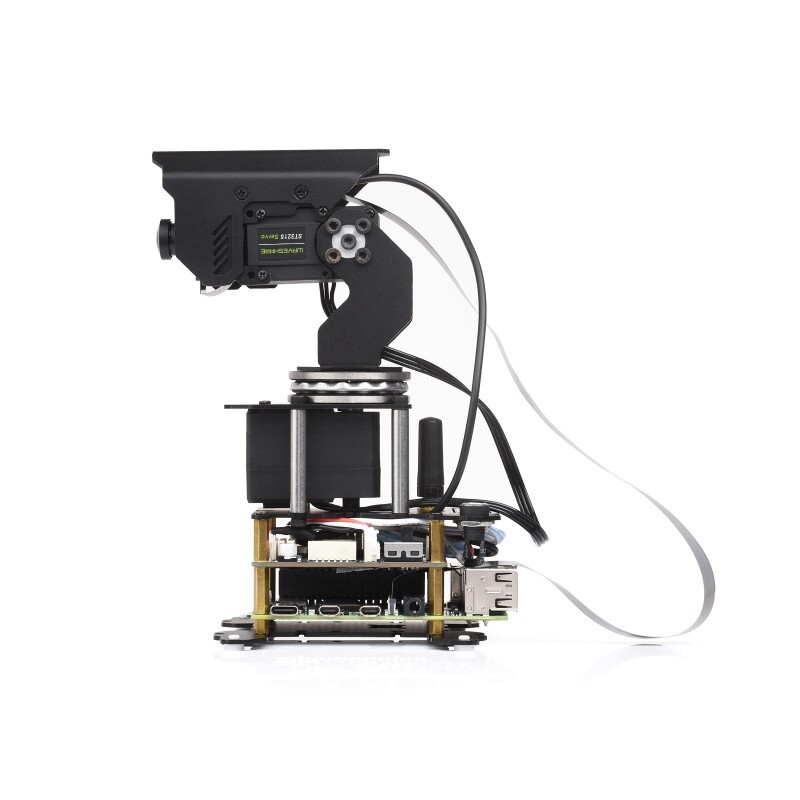

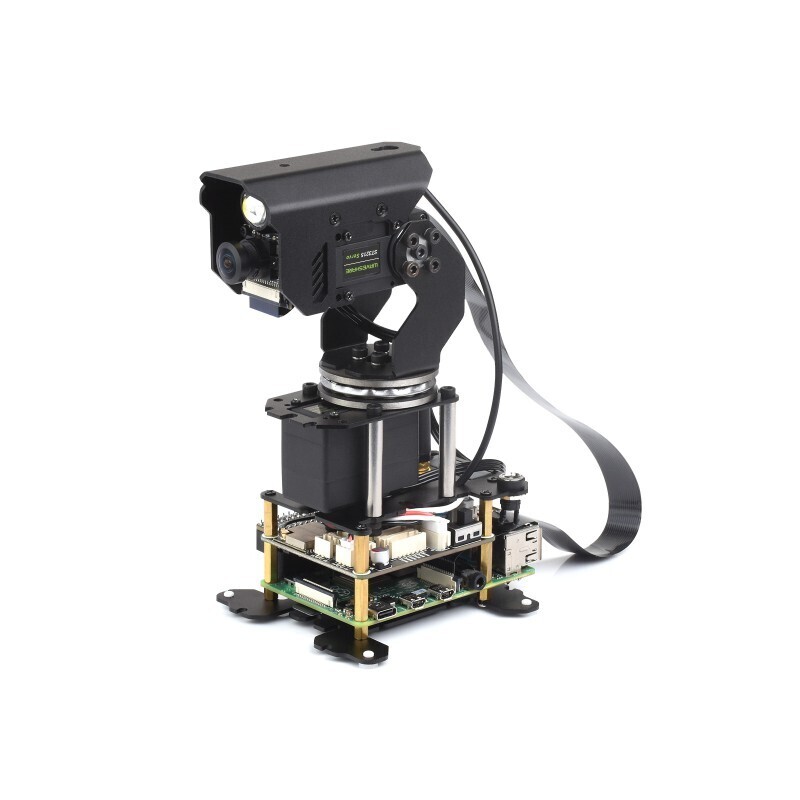

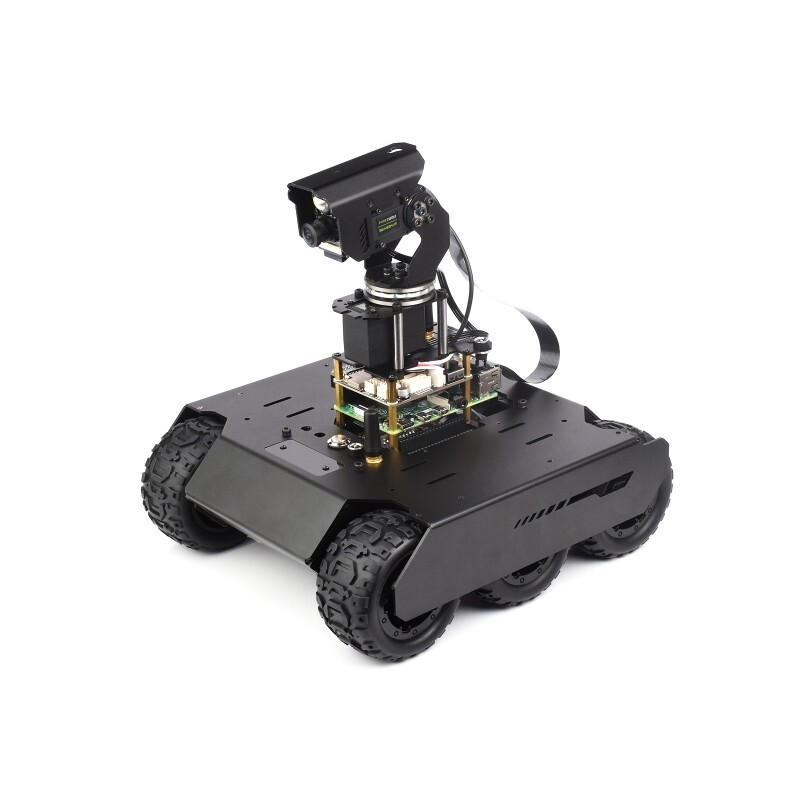

360° Omnidirectional High Torque 2-Axis Expandable Pan-Tilt Camera Module
360° Omnidirectional High Torque 2-Axis Expandable Pan-Tilt Camera Module
The 360° Omnidirectional High Torque 2-Axis Expandable Pan-Tilt Camera Module achieves a wide rotation range on both the horizontal PAN axis (±180°, total 360°) and the vertical TILT axis (-45° to 90°, total 135°) using high-torque 2-DOF bus servo motors, significantly expanding the camera's coverage area.
Based on the Generic Driver for Robots, it integrates seamlessly with Raspberry Pi 4B/5, offering enhanced hardware flexibility. An open-source WEB control demo allows users to effortlessly control the pan-tilt via Google Chrome, enabling adjustments to the pan-tilt's orientation and image capture functions. Beyond basic photo and video capabilities, this pan-tilt camera also features face and motion detection, offering a smarter and more precise tracking experience. Not only are the pan-tilt slave computer demos open source, but the Raspberry Pi camera functionality demos are also open source, allowing users to perform secondary development according to their specific requirements.
Both joints utilize a high-precision bus servo direct drive solution equipped with 360° 12-bit magnetic encoders for angle sensing, facilitating closed-loop control by transmitting joint angles, load, and other information. Despite using compact bus servos, they achieve a maximum joint torque of 30 kg.cm, ensuring the seamless integration of the pan-tilt camera module into various projects.
Features
- SKU: 26519
- DOF: 2
- Driving method: TTL Serial bus servo
- Servo Rotation Speed: 40 rpm
- Joint Angle Sensor: 12-bit 360° magnetic encoder
- Servo Torque: 30 kg.cm at 12V
- Joint Feedback Information: servo status, joint angle, rotation speed, joint load, servo voltage, servo current, servo temperature, and servo operating mode
- Main Control: ESP32-D0WD-V3
- Wired Control Mode: USB, UART
- Host Support: Raspberry Pi 4B, Raspberry Pi 5
- LED Power: <1.5W
- Weight: 441 g
- DEMO: Real-time video transmission, zoom, face detection (OpenCV), motion detection (OpenCV), photo taking, video recording, video review, detection condition setting, detection action setting, LED control, pan-tilt control, and serial bus servo setting
Package Contents
- Bearing holder x1
- Servo mounting plate (2 pieces) x1
- Pan-Tilt metal kit (3 pieces) x1
- Chassis mounting plate (2 pieces) x1
- LED fill light with PH2.0 male plug x1
- RPi Camera (G) (with cable) x1
- ST3215 Servo (with cable and screws) x2
- 3PIN servo connection cable ~300mm x2
- FFC 15PIN cable ~600mm x1
- Push ball bearing x1
- 2.4G antenna x1
- DC5521 - XH2.54 male cable ~15cm x1
- PH2.0 dual plug 4PIN cable ~20cm x1
- IPEX 1 - SMA adapter cable ~17cm x1
- 0.91 inch OLED x1
- General Driver for Robots x1
- 5.3cm transparent suction cup x5
- 12V 5A Power supply x1
- Screwdriver x1
- Jetson Nano Adapter (C) x1
- 2*5PIN cable ~9cm x1
- USB Type-A male to Type-C male cable ~1m x1
- Mini cross switch case x1
- Picatinny rail (with switch) x1
- Switch x1
- FFC 15PIN black cable ~400mm x1
- Pi5 Camera Cable 500mm x1
- Silicone non-slip feet x8
- Screw pack x1
