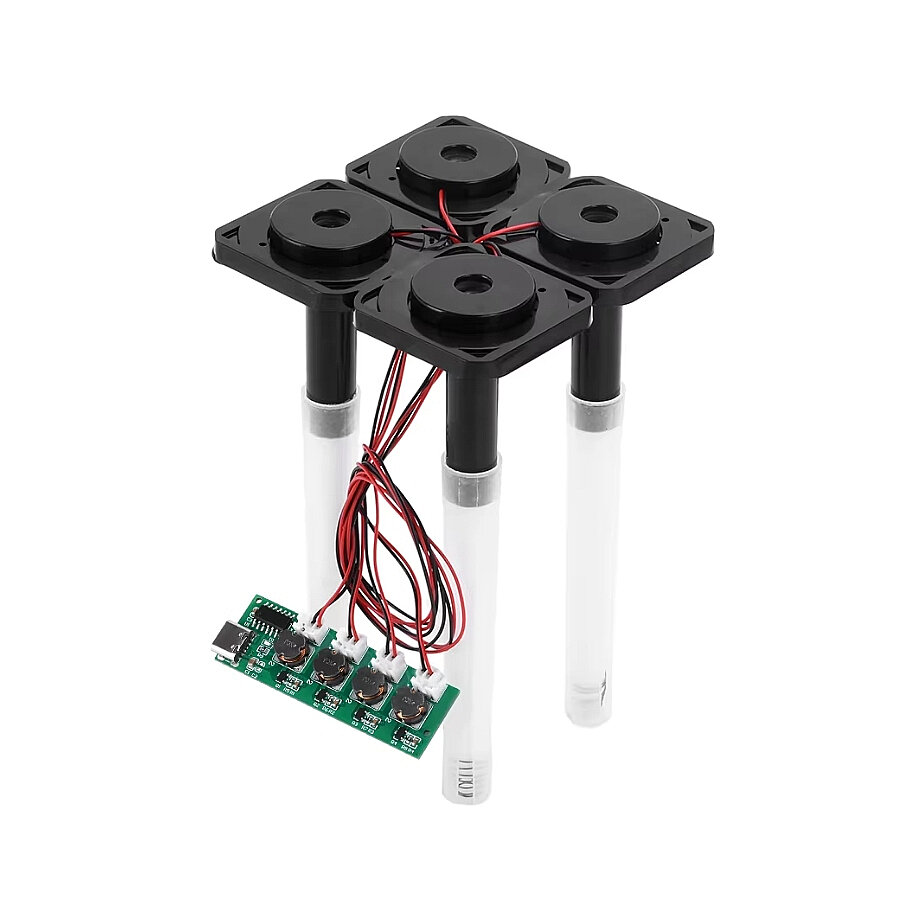

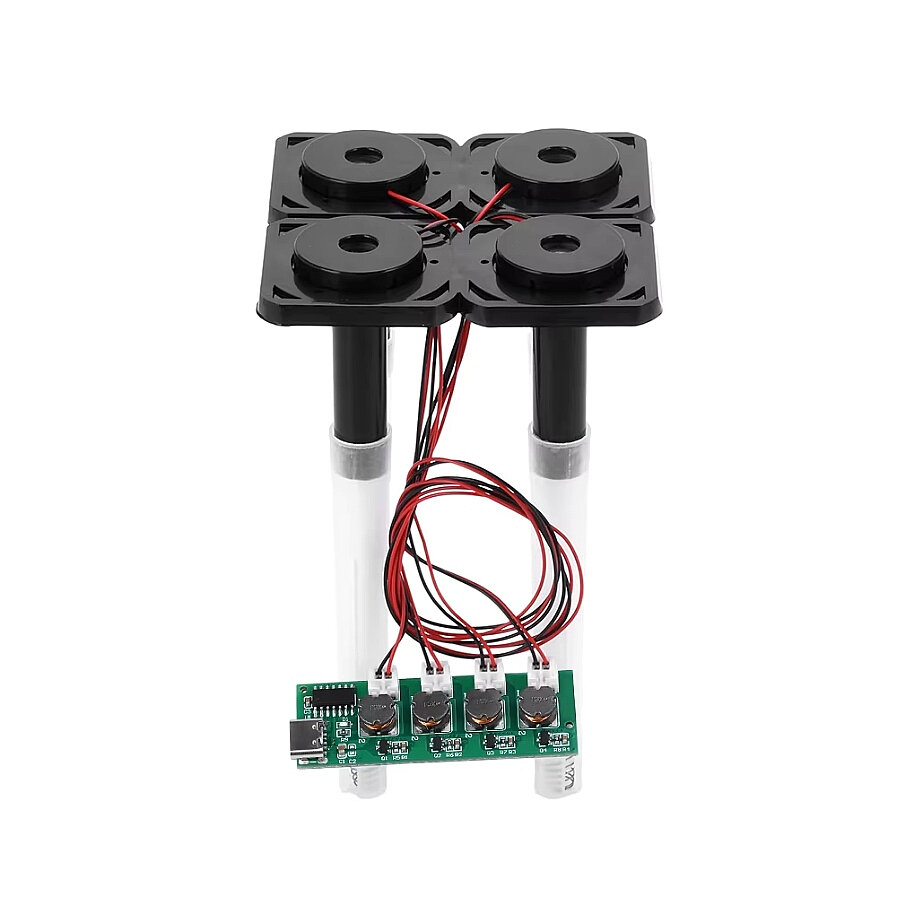

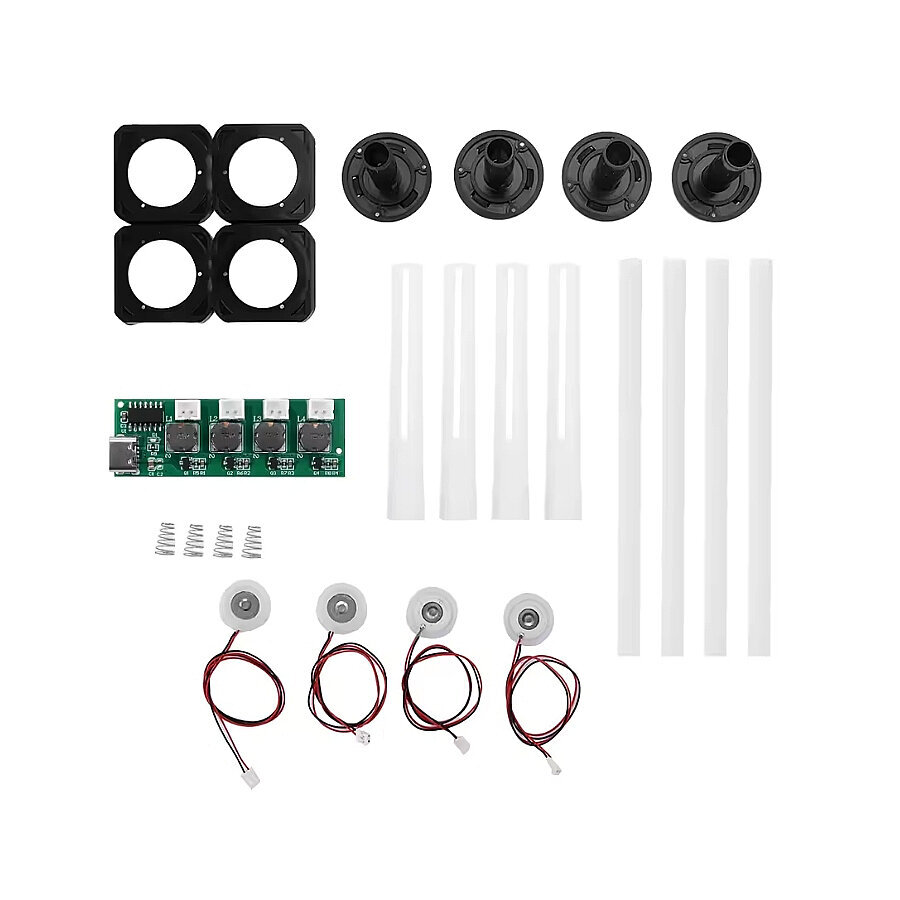

4-Stage Ultrasonic Mist Generator Humidity Module
The 4-Stage Ultrasonic Mist Generator Humidity (Atomizer) Module is a module that produces vapor (mist) when placed in a small amount of water. You can use it in various electronic projects, incubator construction, or for fun projects.The circuit should not come into contact with water.
Important Note: Do not attempt to use the device without powering it on. All atomizers must be attached while the device is operating. If you don't attach all the atomizers, the circuit board components may be damaged.
Specifications
- Power Supply Input: Type-C
- Rated Voltage: DC5V (power supply)
- Rated Current: 300mA (maximum 2A)
- Power: 2.5-3W
- Atomization Frequency: 108kHz ± 2kHz
- Module: 57x19mm
- Cotton Swab: 7x121mm
- Nebulizer Parameters:
- Driver voltage: 5V
- Resonance frequency: 108-110KHZ ± 5
- Rated power: 2W
- Number of punctures: 1100
- Aperture: 4-5UM
- Outer diameter of silicone sheath: 20MM
- Rubber ring thickness: 3MM
- Steel plate diameter: 16MM
- Line length: 25CM
- Cable terminal: PH2.0
- Card Size: 58.7x19.6mm
