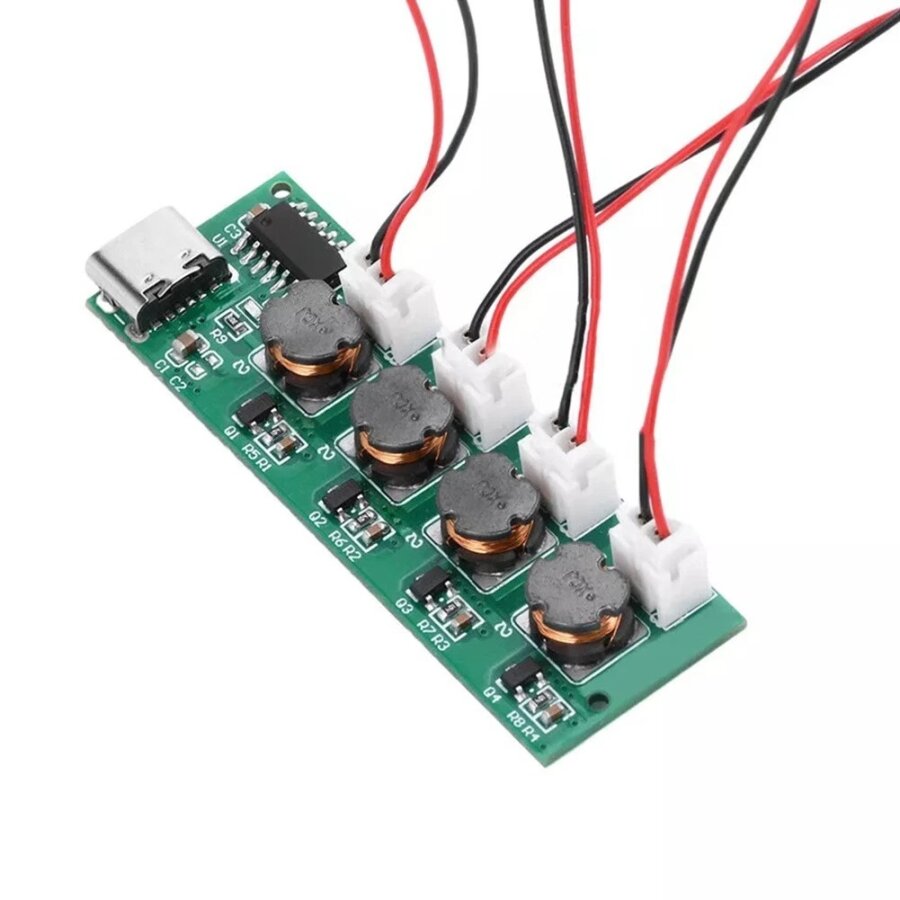

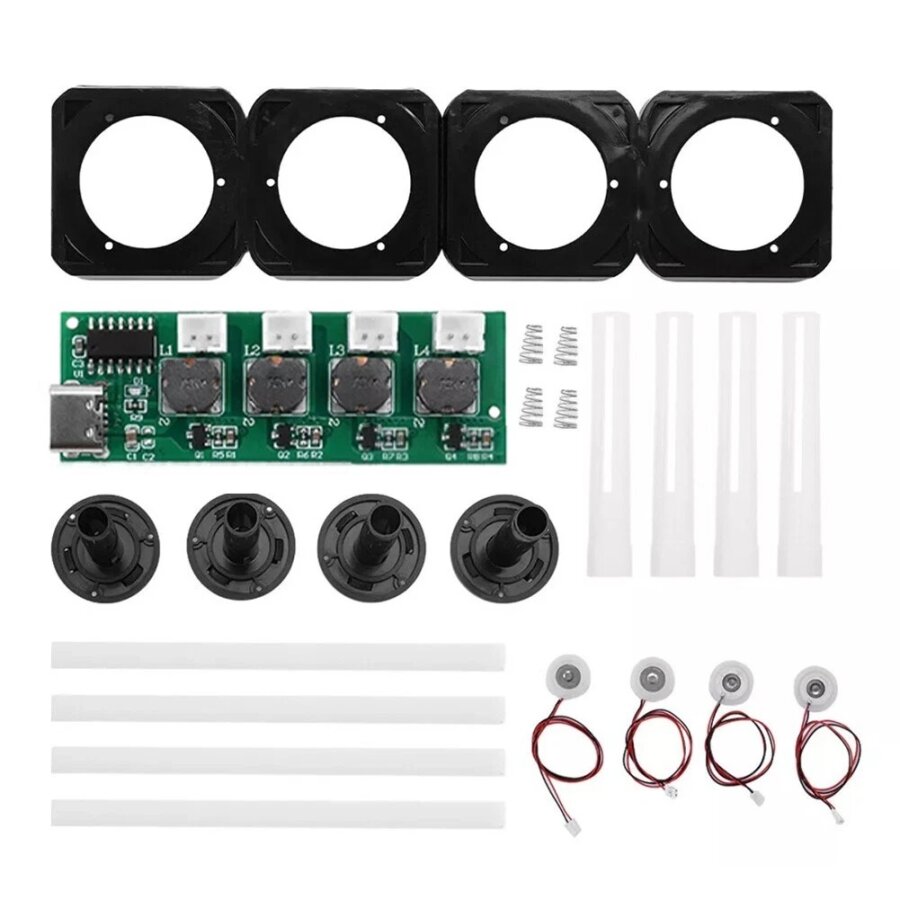

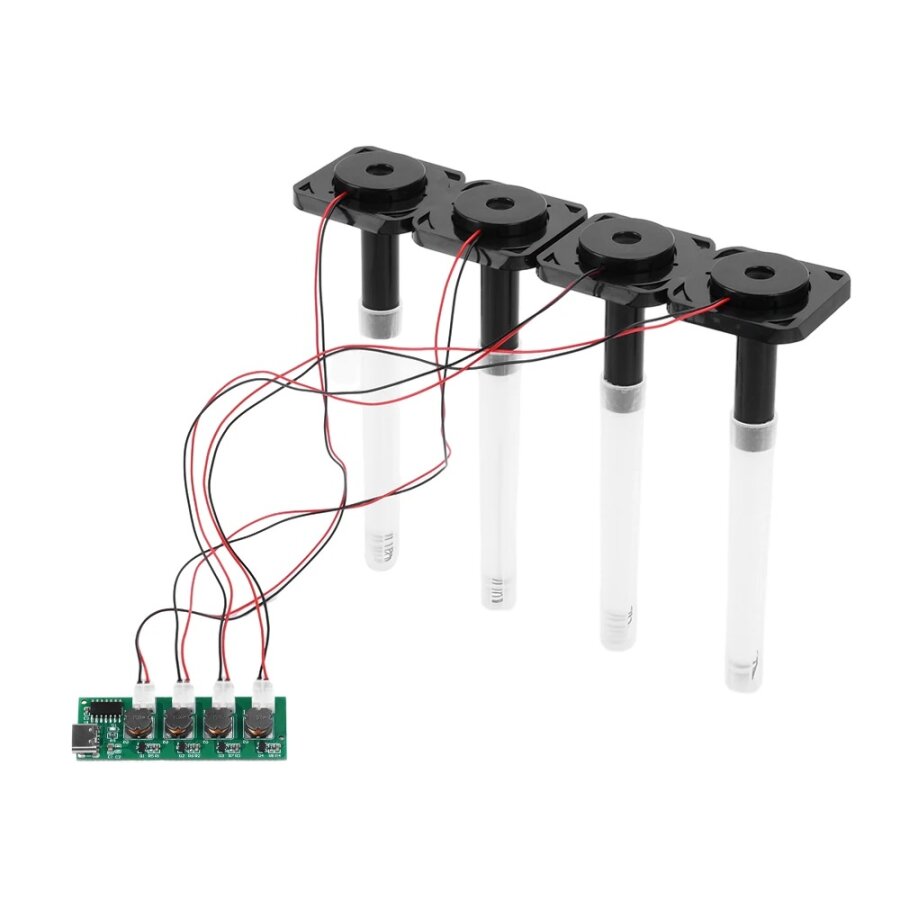

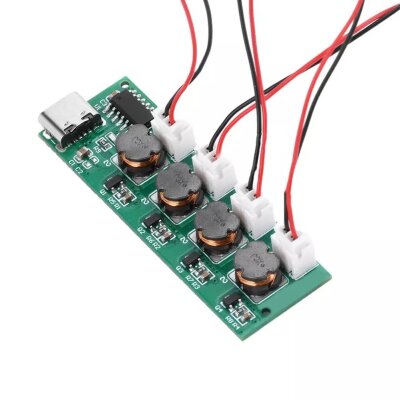

4-Way Horizontal Ultrasonic Atomizer Module

4-Way Horizontal Ultrasonic Atomizer Module

The 4-Way Horizontal Ultrasonic Atomizer Module produces vapor (fog) when placed in water. It's ideal for various electronic projects, incubator construction, or recreational projects. The circuit board should not come into contact with water.

Important Note: Do not attempt to use the device without powering it. All atomizers must be installed while the device is operating. If you do not install all the atomizers, the circuit board components may be damaged.

Features

• Power Input: Type-C
• Rated voltage: DC5V (power supply)
• Rated current: 300MA (maximum 2A)
• Power: 2.5-3W
• Atomization frequency: 108KHZ ± 2KHZ
• Module: 57x19MM
• Cotton swab: 7x121MM
• Nebulizer parameters:

  • Driver voltage: 5V
  • Resonance frequency: 108-110KHZ ± 5
  • Rated power: 2W
  • Puncture count: 1100
  • Diaphragm: 4-5UM
  • Outer diameter of silicone sleeve: 20MM
  • Rubber ring thickness: 3MM
  • Steel plate diameter: 16MM
  • Cable length: 25CM
  • Cable terminal: PH2.0
• Card Size: 58.7x19.6mm
