4N25 Transistor Output Optocoupler IC DIP-6

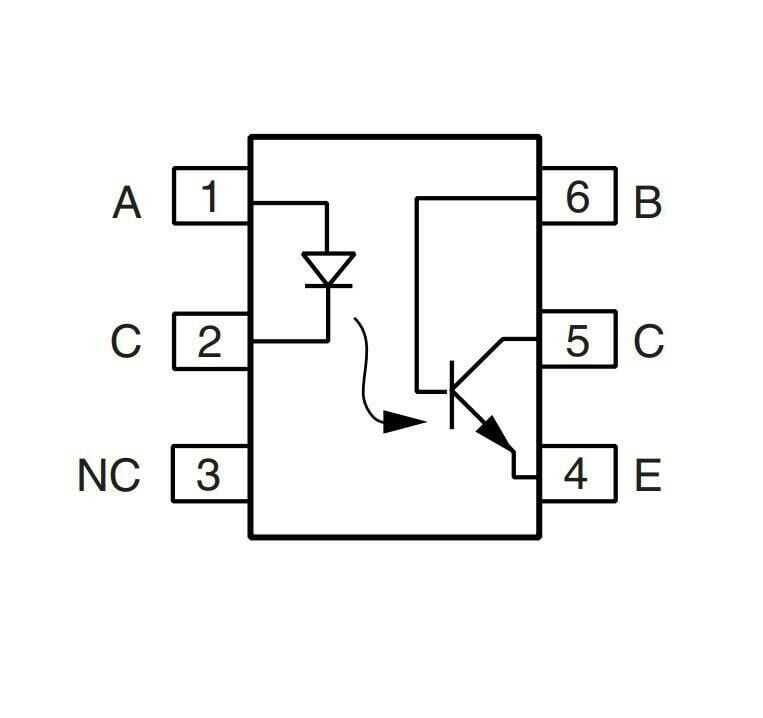

4N25 is a widely used optocoupler / optoisolator / is the photocoupler. It is produced in 6 pin dip package and SMD package. The device consists of one IR LED and a phototransistor / Detector that detects the light coming from one IR LED. Since 4N25 is also connected to the base pin of the detector transistor to pin 6 of the body, the user can control the transistor with two inputs, one from the IR LED light connected to pin1 and pin2, the other controlling the transistor with its base.
Usage Areas
Isolation between two circuits
Output of Microcontrollers
Power supplies and chargers
Digital circuits
Telecommunications Circuits
AC Detector
AC Insulation| Series | 4N25 |
| Max Collector Emitter Voltage | 70V |
| Pd - Power Distribution | 150 mW |
| Output Type | NPN Phototransistor |
| Number of Channels | 1 Channel |
| Package Type | DIP-6 |
