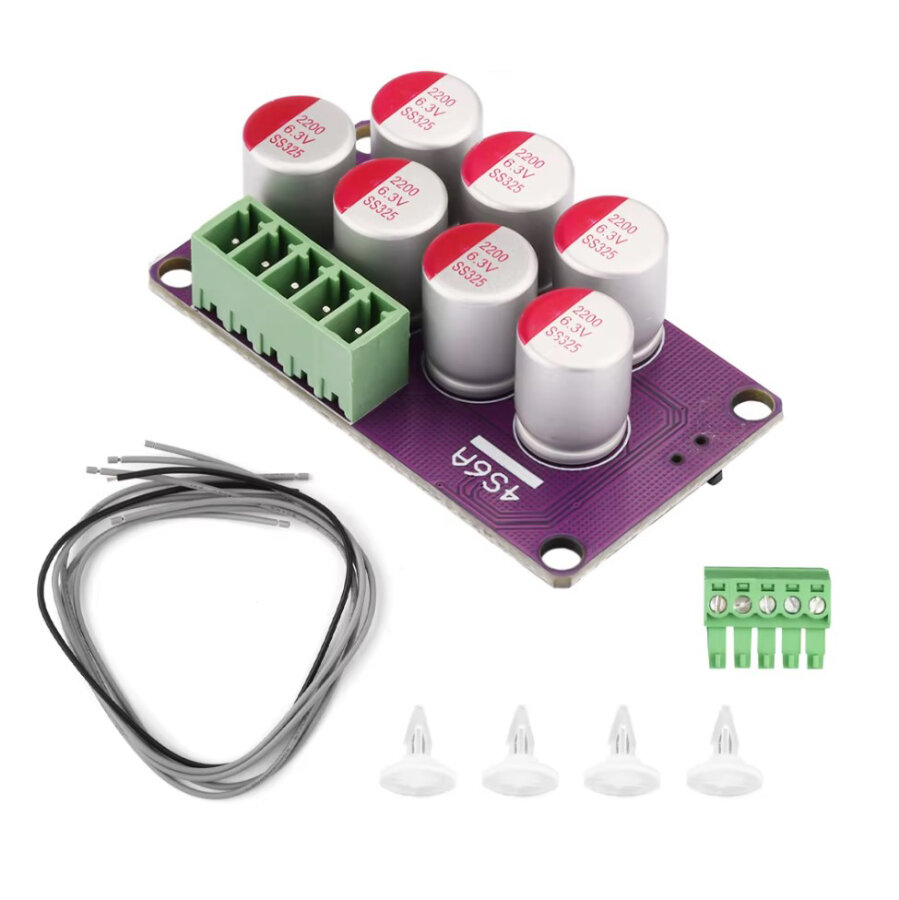

4S 6A Active Balance Circuit - Li-ion Lifepo4 BMS

4S 6A Active Balance Circuit - Li-ion Lifepo4 BMS

The 4S 6A Active Balance Circuit - Li-ion Lifepo4 BMS simplifies complexity by eliminating the need to detect voltage differences between cells. With its advanced energy transfer capabilities and precise control, it ensures efficient energy balancing between battery cells.

Features

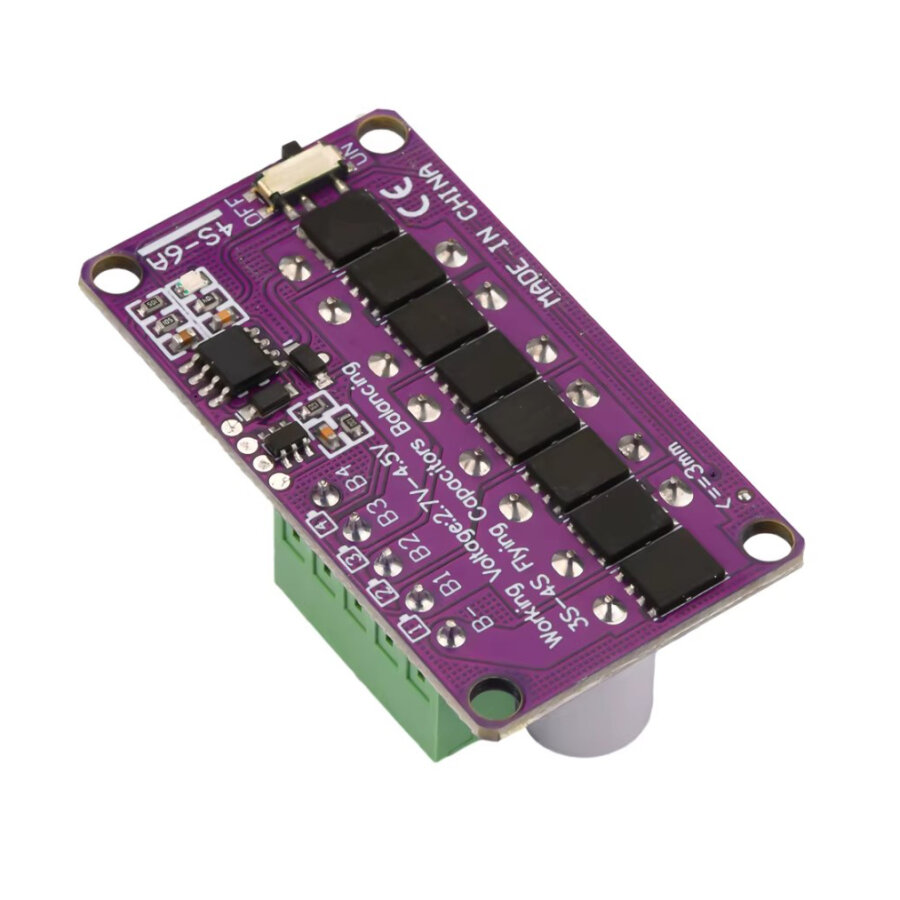

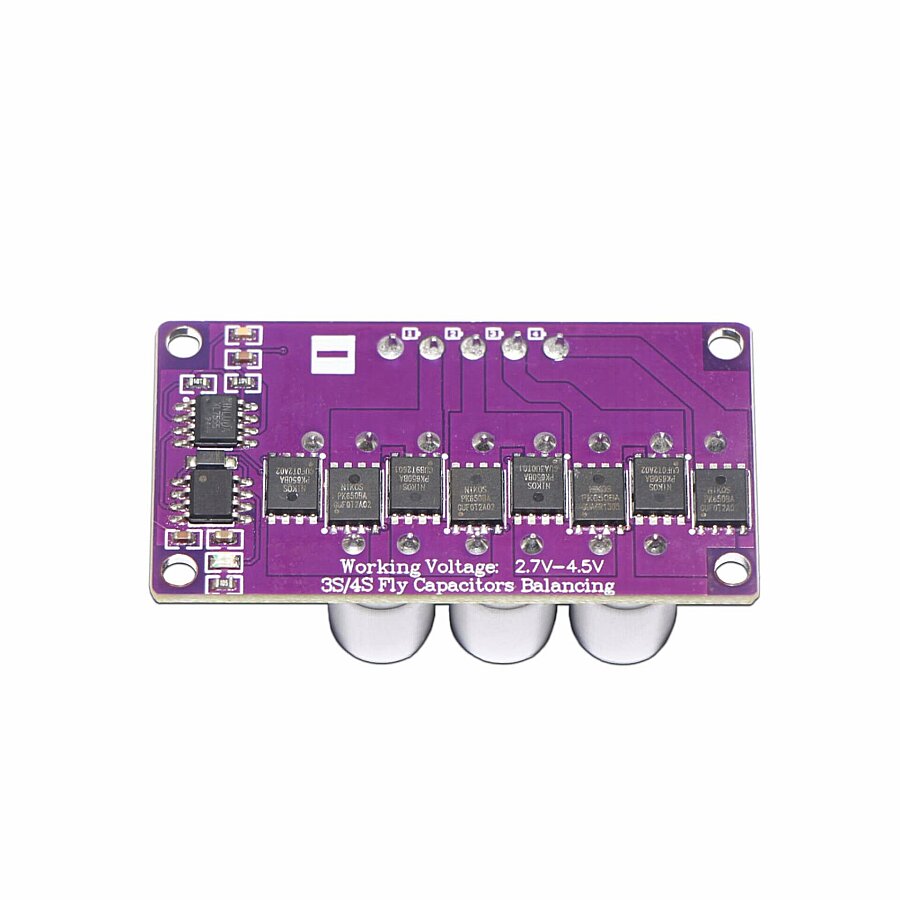

• Active Balancing: Provides superior balancing performance by utilizing energy transfer between adjacent capacitors.
• Low Power Consumption: Minimizes overall circuit power consumption by operating within the energy efficiency range of 1.5-2.5mA.
• Automatic Low Voltage Protection: Protects batteries and prevents overdischarging by automatically shutting down when the voltage drops below 2.5V.
• High Balancing Accuracy: Provides impressive 0.01V accuracy for precise battery management.

Technical Specifications

• Compatible Models: 4S Li-ion, LifePo4 Batteries
• Balance Method: Active Balance
• Maximum Balance Current: 6A
• Equalization Accuracy: 0.1V
• Power Consumption: 1.5-2.5mA
• Low Voltage Protection: Automatically shuts down when the cell voltage drops below 2.5V
• Applicable Voltage Range: 2.5-4.4V for a single cell
