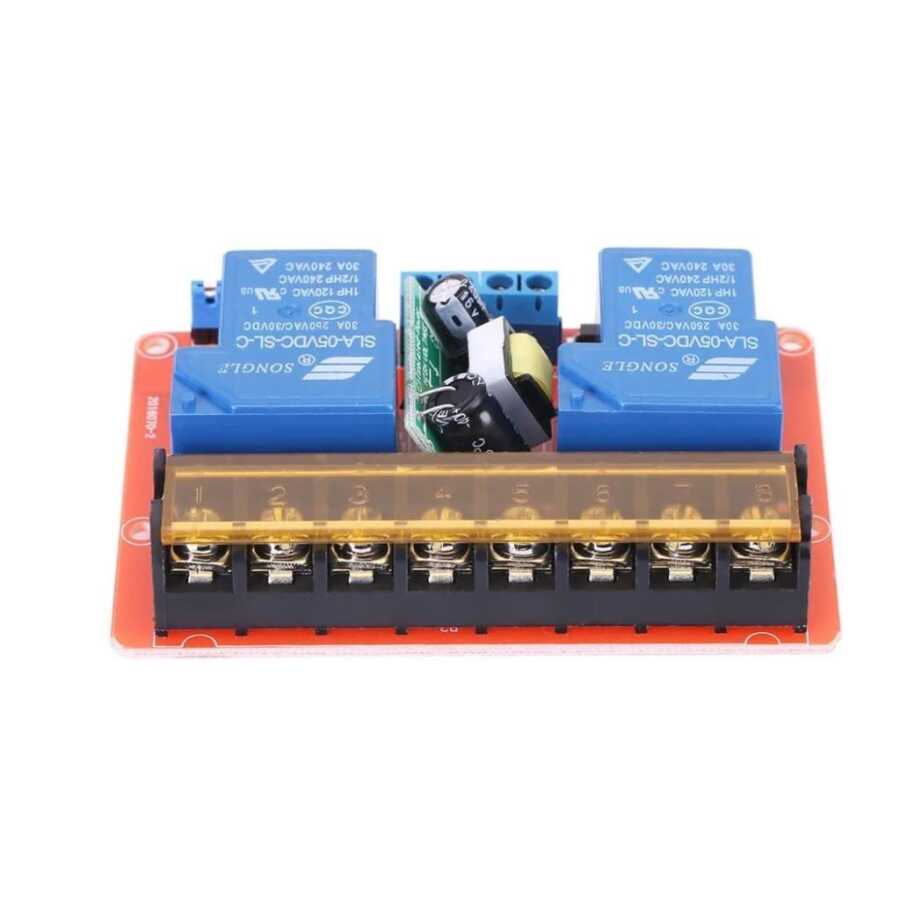

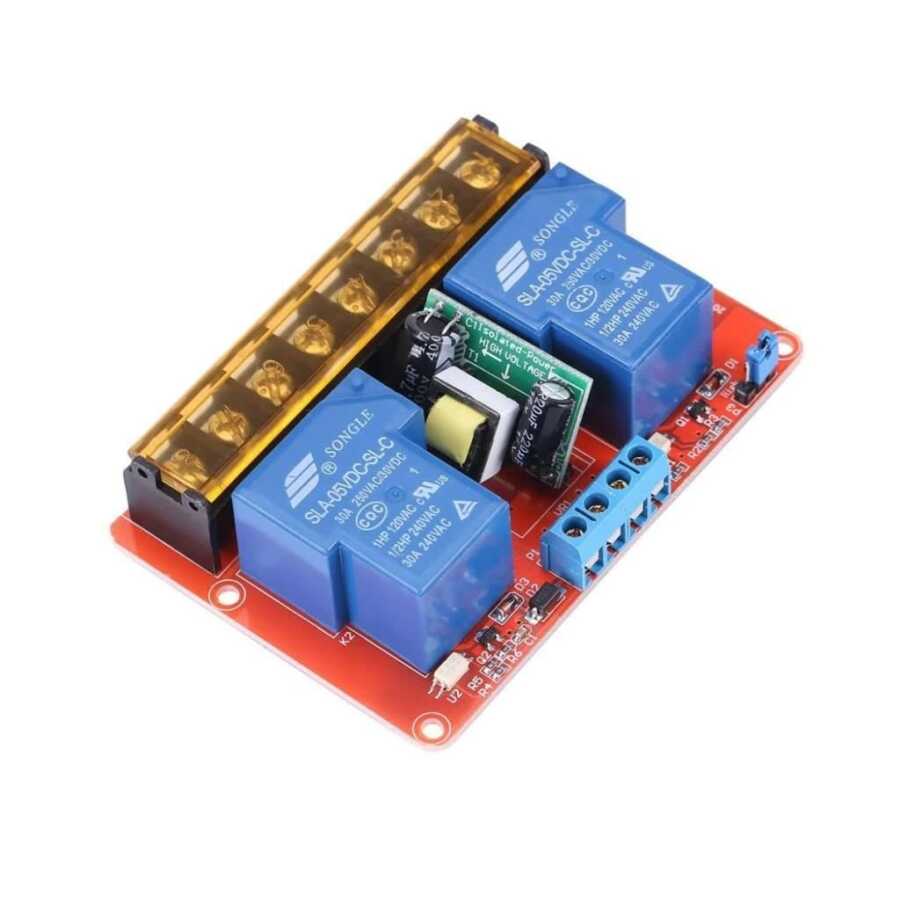

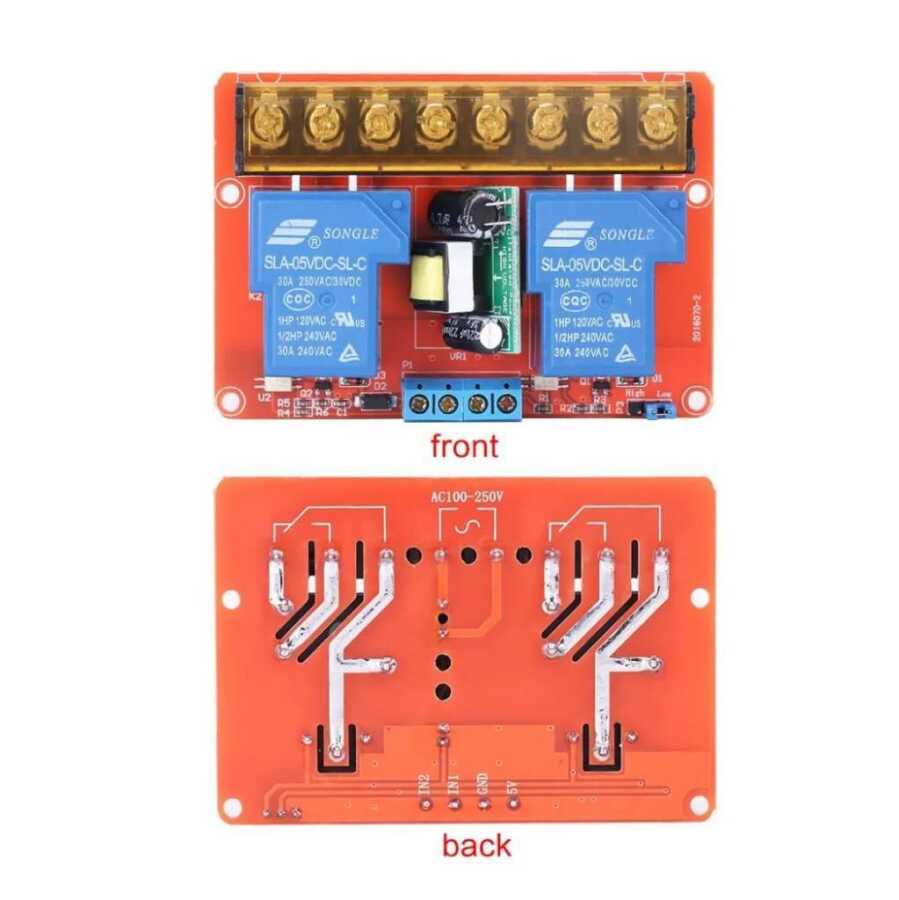

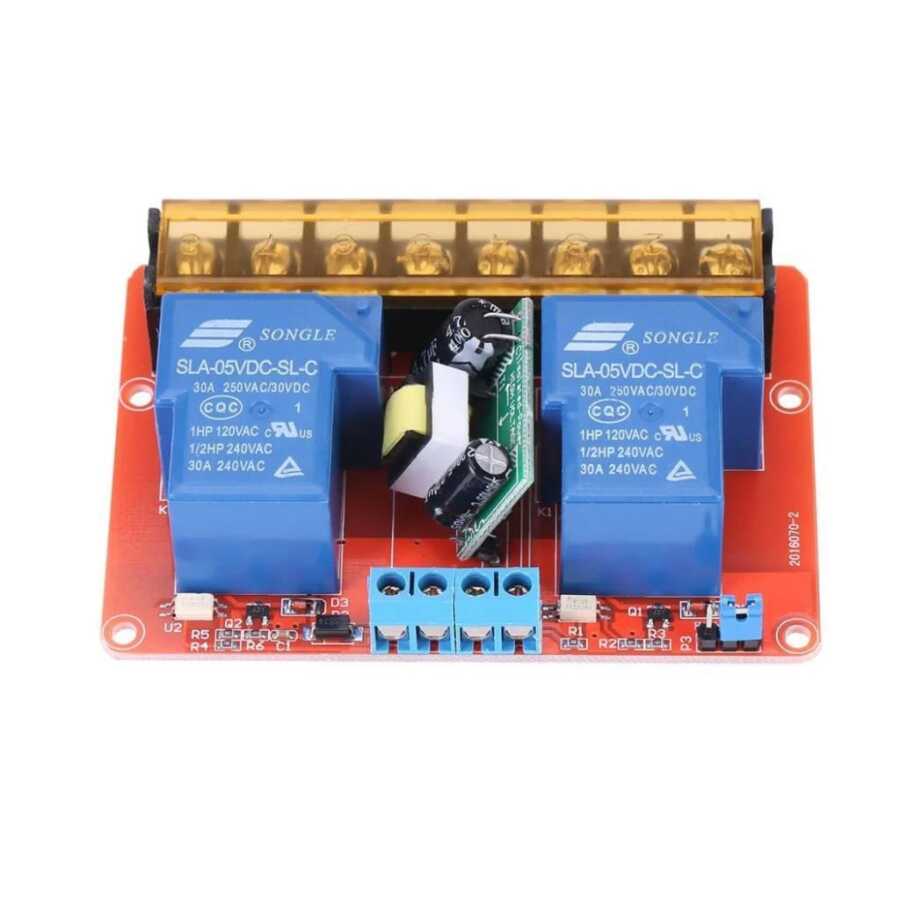

5V 30A 2 Channel High-Low Level Relay Card

It is a 2-channel relay module with high-low level triggering that can control two loads. Easy to use, designed with screw terminals for convenient connection, high or low level trigger can be selected with jumper.

Technical Specifications

Relay: 250V 30A

Load Capacity: 30A, 250V AC/ 30V DC

Input power supply: DC 5V (optional isolation module, AC100-250V power supply)

Input control signal voltage: 0-1V low state relay OFF, 1.5-5V high state relay ON

Operating current: 378mA

Size: 87*60*20.5cm

Trigger Input

DC+: 5V

DC -: GND

CH1: Signal trigger terminal

CH2: Signal trigger terminal
