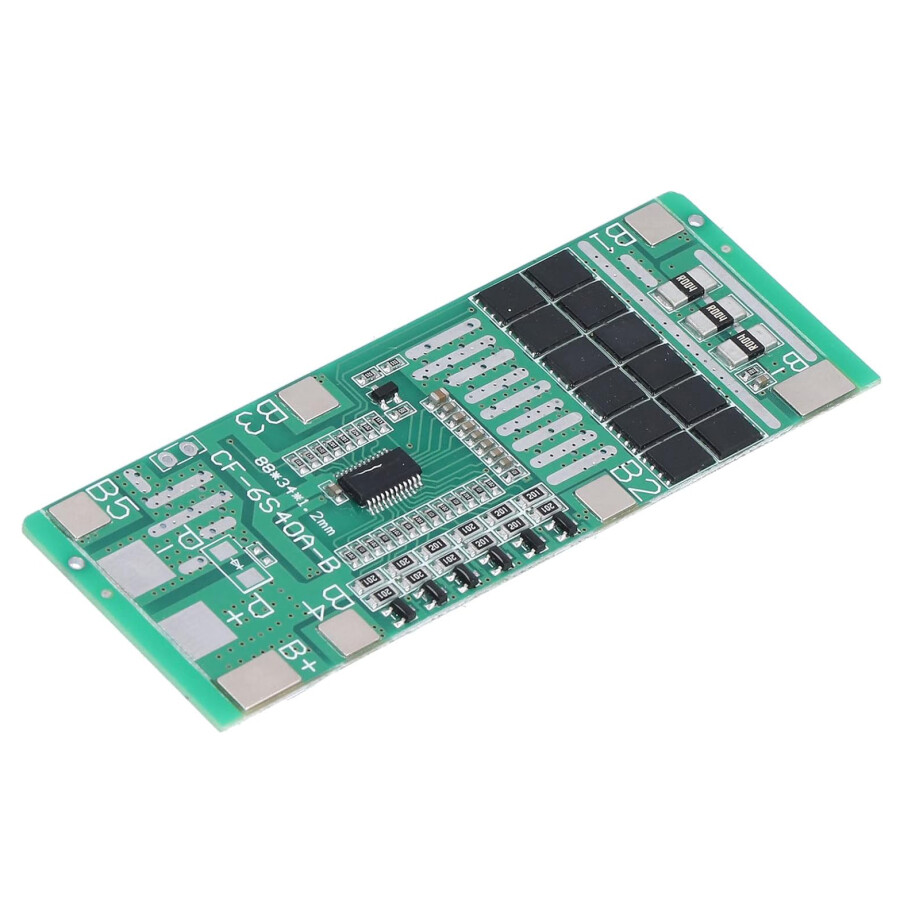

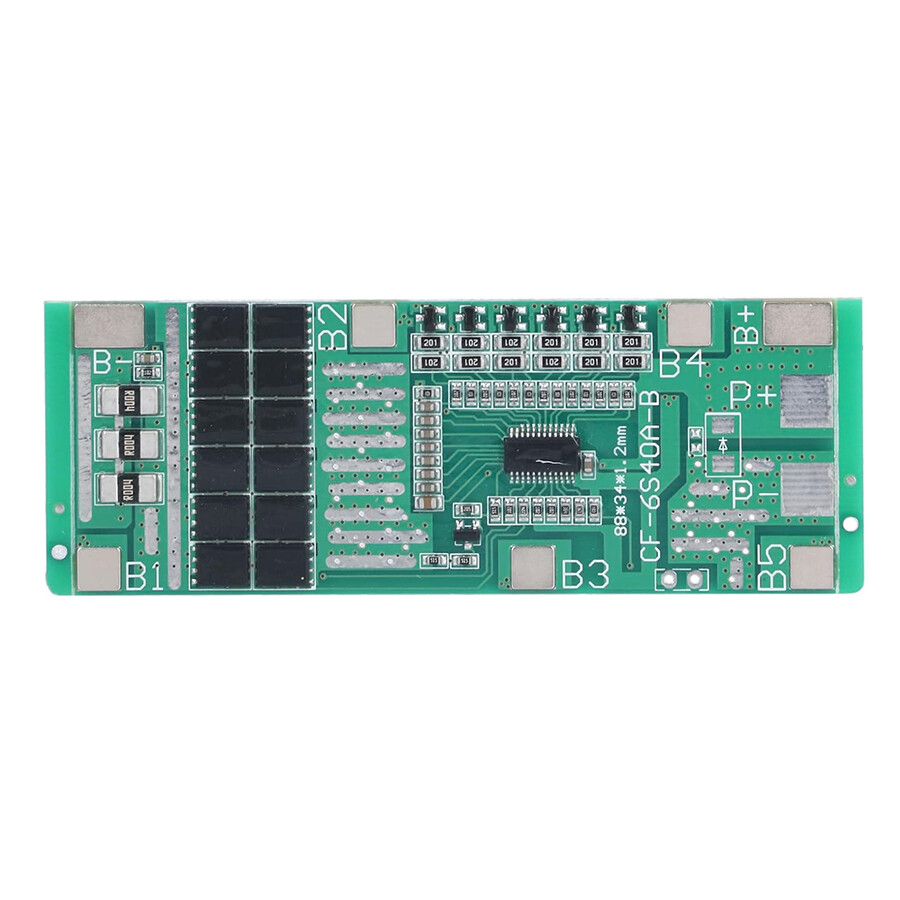

6S 40A LiPo & Lion & 18650 BMS Battery Protective Balance Circuit, BMS (Battery Management System) – is a battery management system designed to monitor the status of batteries, control the charging/discharging process of the battery, etc.

Six batteries (18650) can be connected to this charge-discharge control module at the same time. The module has protection against short circuit, overcharge and overdischarge. One of the functions of the charge controller is to turn off the power supply for the batteries when the maximum capacity of at least one battery is reached. This BMS controller is designed for more than 30,000 hours of operation. The maximum permissible current is 40 A.

If the maximum permissible value of the supply voltage is exceeded, the charge controller activates the "protection" mode. To restore the module, it is necessary to re-apply voltage to the input of the BMS board or wait for the charge controller to automatically disable the protection.

Features

• High current protection board
• Continuous 40A current
• Discharge:
  Continuous Discharge Current: 40A (MAX)
• Charge:
  Charge Voltage: 25.5V
  Charge Current: 10A (MAX)
• Overcharge Protection Voltage: 4.2V
• Operating Temperature Range: -30 + 80 °
• PCB Size: 88x34mm

Connection
