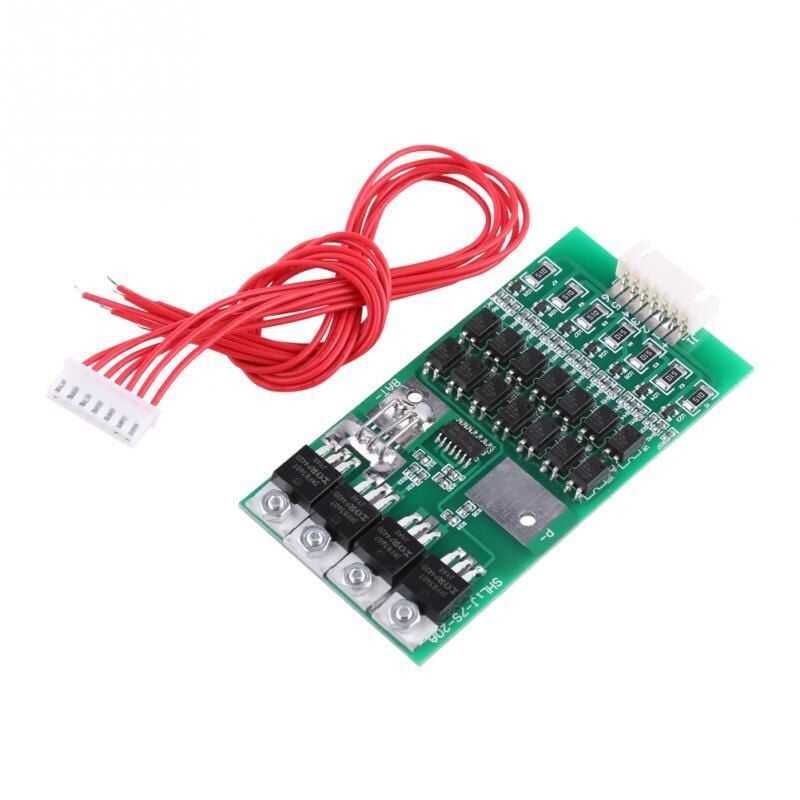

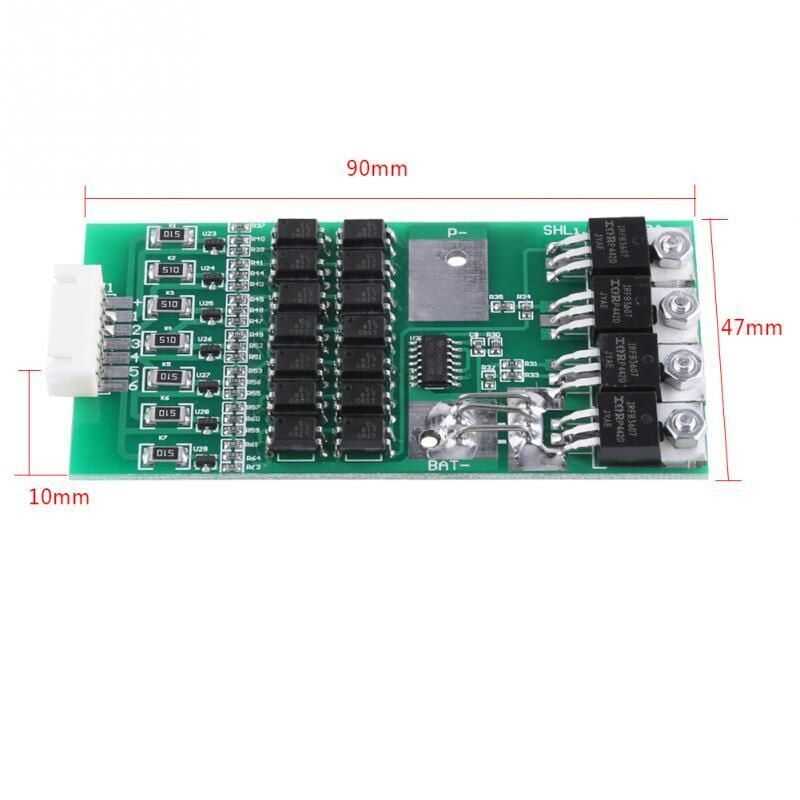

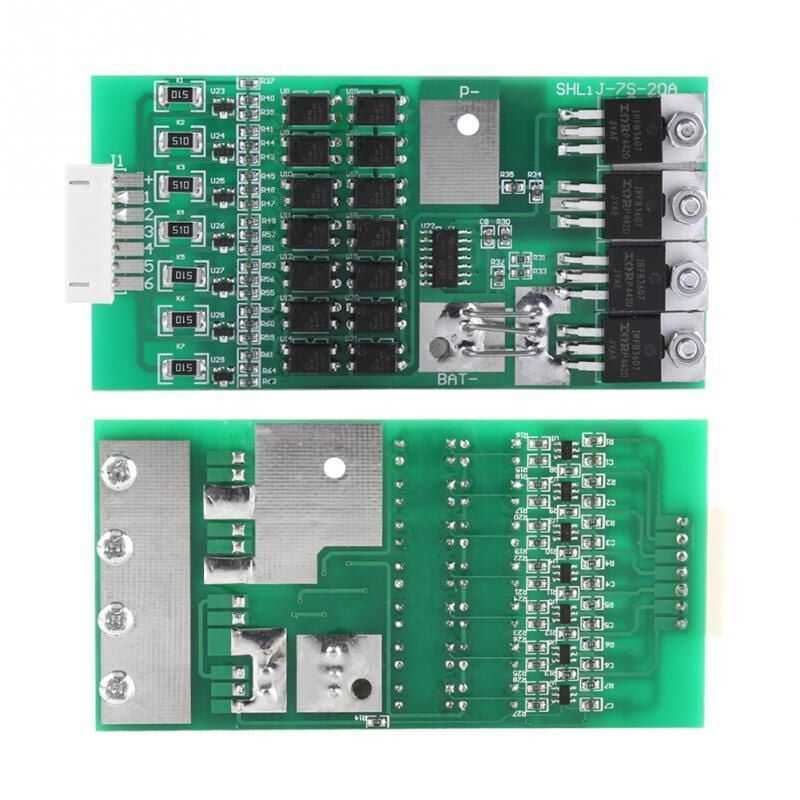

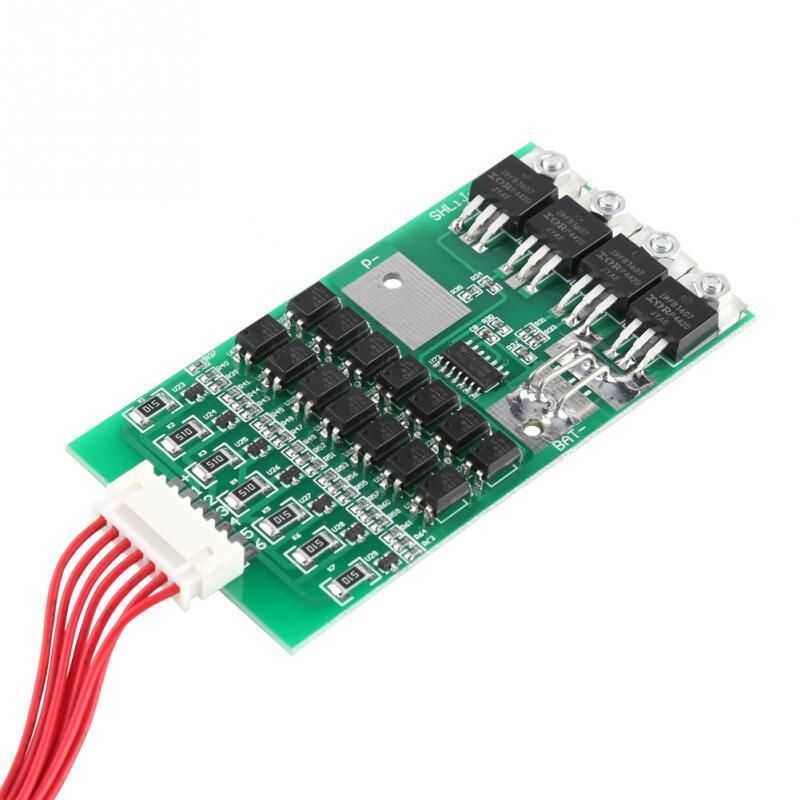

7S 24V 20A Li-ion & 18650 BMS Battery Protective Balance Circuit
This is the charging circuit with which you can charge your rechargeable batteries. It has a charging cut-off feature when the charge is full. It has small size and high amperage capacity and has 20A continuous current. Suitable for power drills, motors or aircraft models that require heavy current load.
Technical Specifications
Supported Battery Type: 7-cell 4.2V Lithium-ion battery
Operating current: 20 A
Static power: <500uA
Overcurrent threshold: 30 A
Stabilization of control focus: 4.18±0.03 V
Overcharge threshold: 4.3±0.05 V
Overcharge time delay: 75mS
Overcharge release: 4.1±0.05 V
Discharge threshold: 2.4±0.08 V
Discharge delay: 5mS
Overcharge protection function: Yes
Discharge protection function: Yes
Overcurrent protection function: Yes
Balanced protection function: Yes
Short circuit protection function: Yes
