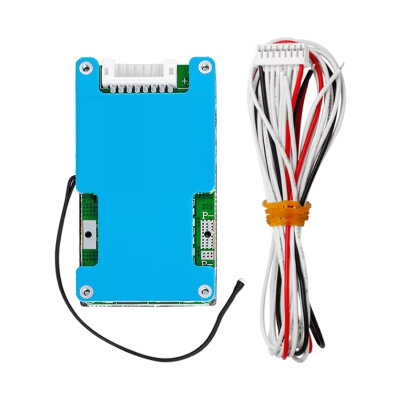

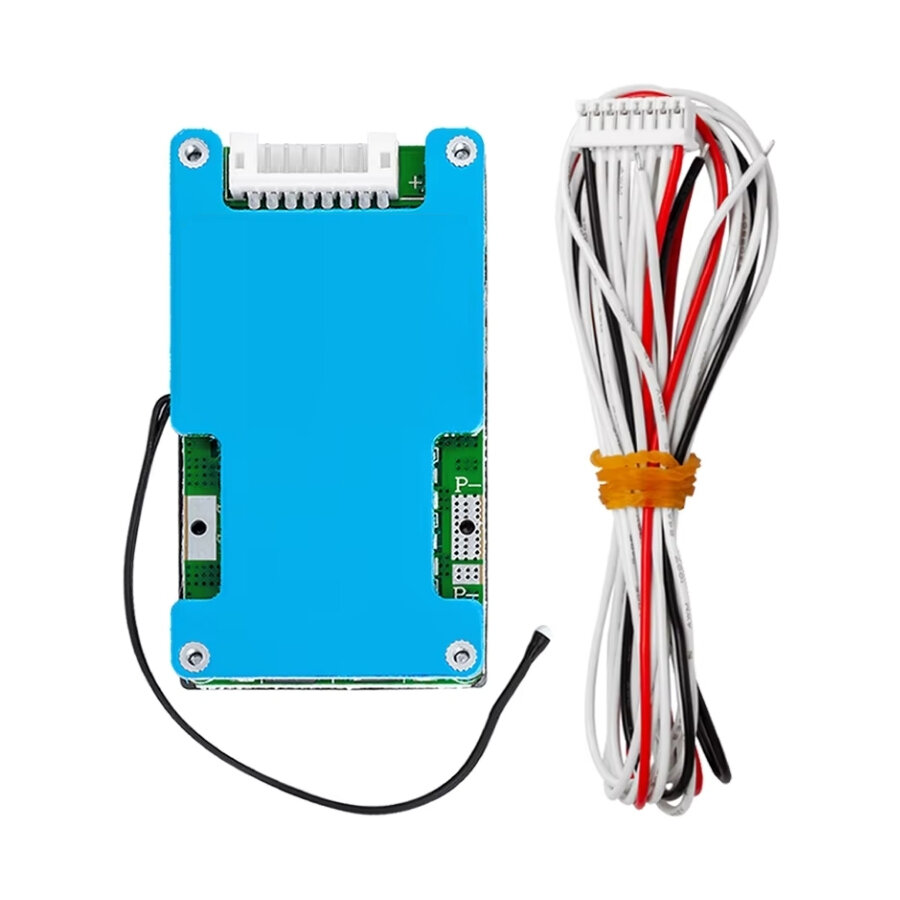

7S 24V 25A LiPo & Lion & 18650 BMS Battery Protector Balancing Circuit

7S 24V 25A LiPo & Lion & 18650 BMS Battery Protector Balancing Circuit

7S 24V 25A LiPo & Lion & 18650 BMS Battery Protector Balancing Circuit,With this module, you can charge your rechargeable batteries while protecting them from high voltage, and also prevent batteries that are about to run out from drawing current, thus preventing them from malfunctioning.

Features

• 25A High Current Support: Handles continuous current up to 25A, suitable for high-power applications. Provides reliable power delivery for demanding devices and systems.
• 7S Configuration: Designed for 7 series lithium-ion cells, provides balanced charging and discharging. Maintains cell balance for enhanced performance and battery life.
• Advanced Protection Features: Includes protection against overcharging, over-discharging, short circuits, and overcurrent. It enhances safety and prevents damage to the battery pack.
• Effective Heat Management: It is manufactured with components that provide effective heat dissipation during operation. It prevents overheating and maintains consistent performance under load.
• Compact and Durable Design: This 7S 25A BMS 18650 battery charging board easily fits into various battery setups and projects.
Its robust construction ensures reliability and long lifespan under various conditions.

Technical Specifications

• Supported Battery Type: 18650, Lithium-Ion
• Number of Cells: 7 cells in series (7S configuration)
• Nominal Voltage: 25.9 V
• Maximum Charging Voltage: 29.4 V (4.2 V per cell)
• Overcharge Protection Voltage: 4.25 V ± 0.05 V per cell
• Overdischarge Protection Voltage: 2.7 V ± 0.05 V per cell
• Charging Current: Up to 25 A
• Balancing Current: 40 A mA
• Dimensions: Approx. 60 mm x 33 mm x 8 mm
• Protection Features;
  • Overcharge
  • Overdischarge
  • Short circuit
  • Overcurrent
  • Overtemperature
