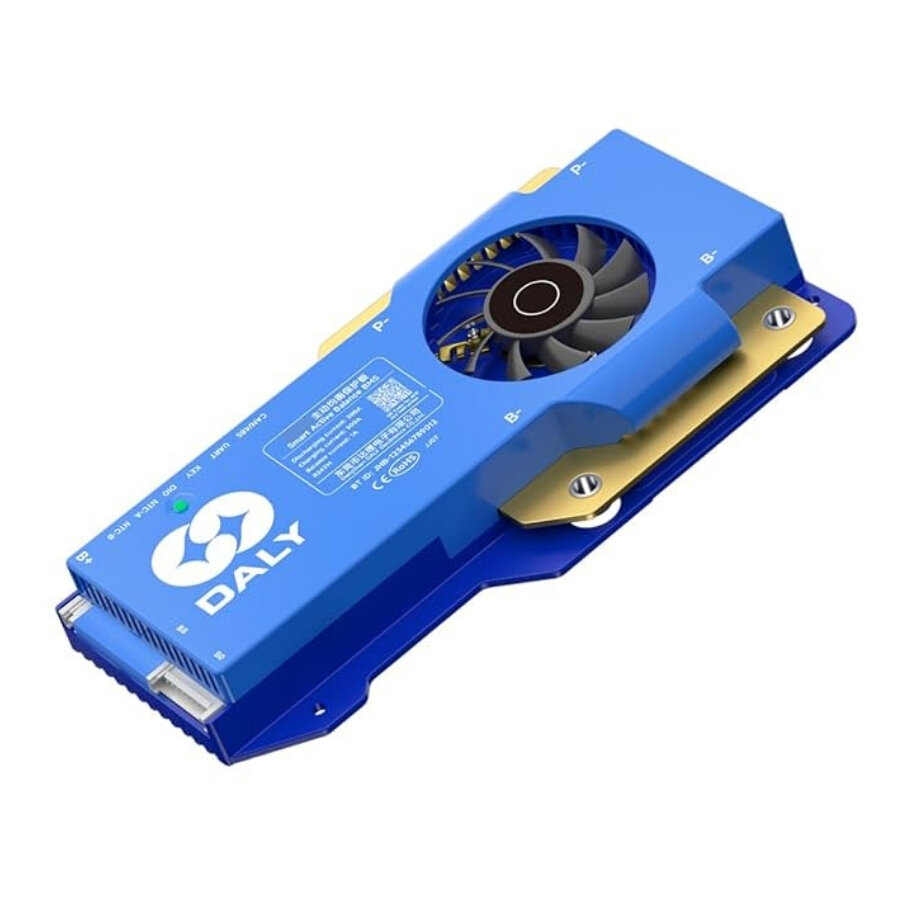

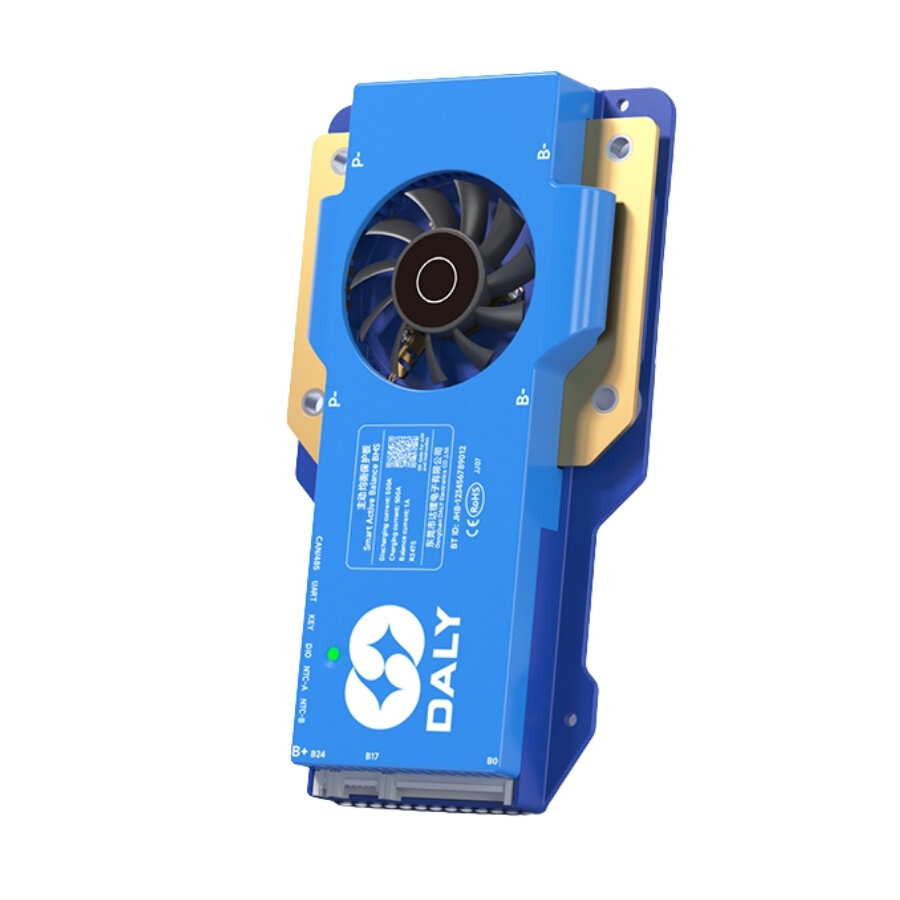

8-24S 300A Daly Smart BMS Active Balance Circuit Li-ion/Lifepo4/LTO - BT+RS485+CAN

8-24S 300A Daly Smart BMS Active Balance Circuit Li-ion/Lifepo4/LTO - BT+RS485+CAN

The 8-24S 300A Daly Smart BMS Active Balance Circuit Li-ion/Lifepo4/LTO - BT+RS485+CAN is a battery management solution that offers high security and performance in energy management systems. With its 300 amp capacity and support for 8s-24s cell structures, it can be used in both residential and industrial projects.

You can monitor and control the system remotely with Bluetooth, CAN, and RS485 connection options. These features make the device a user-friendly and versatile energy management solution.

Thanks to its Bluetooth feature, it can be controlled via mobile devices, allowing you to monitor battery parameters in real time. Data such as voltage, current, and temperature can be easily accessed via a mobile app.

It supports CAN and RS485 connection protocols. These protocols are commonly used as a standard connection method in electric vehicles and renewable energy projects.

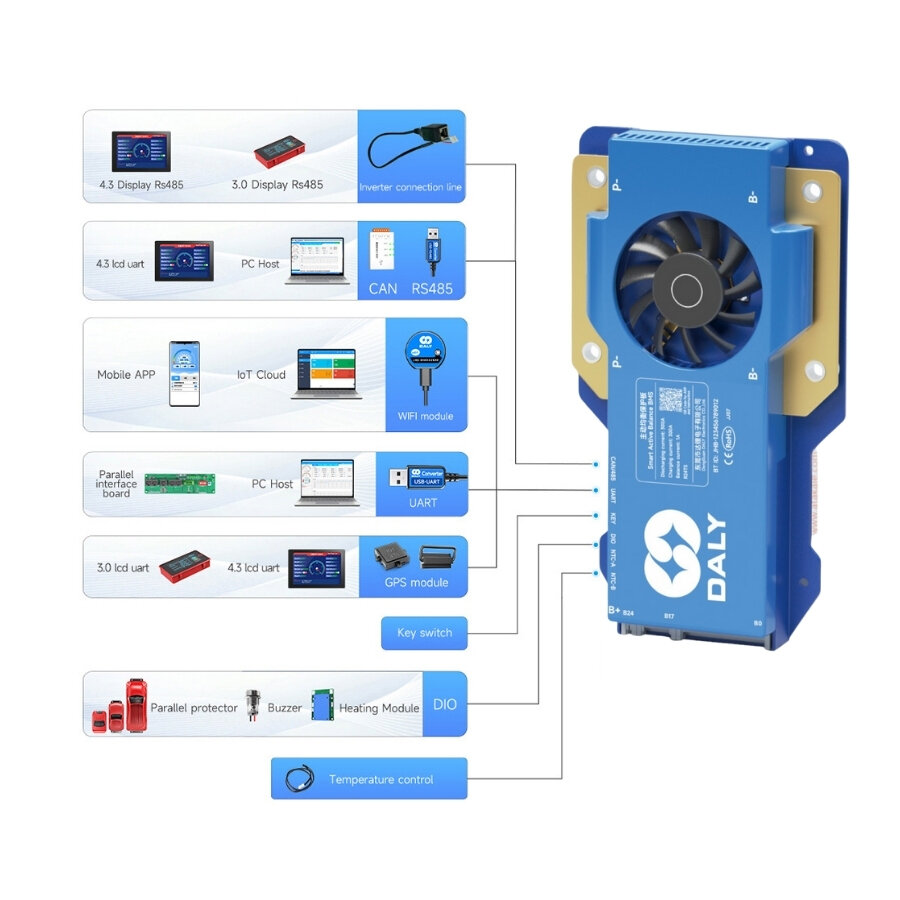

Connection

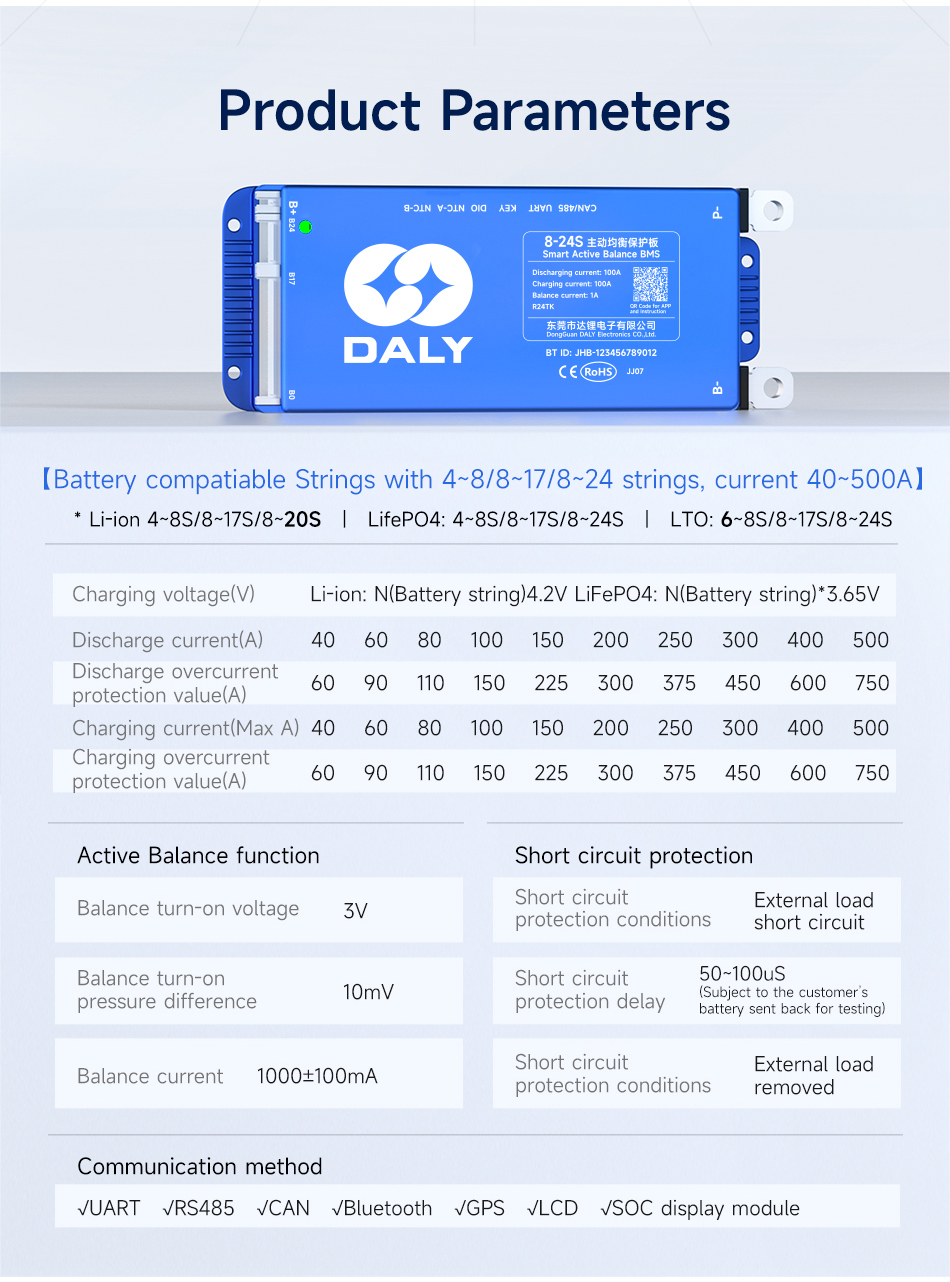

Product Parameters

The product parameter table is common. You can review the values ​​of the relevant product in the table.

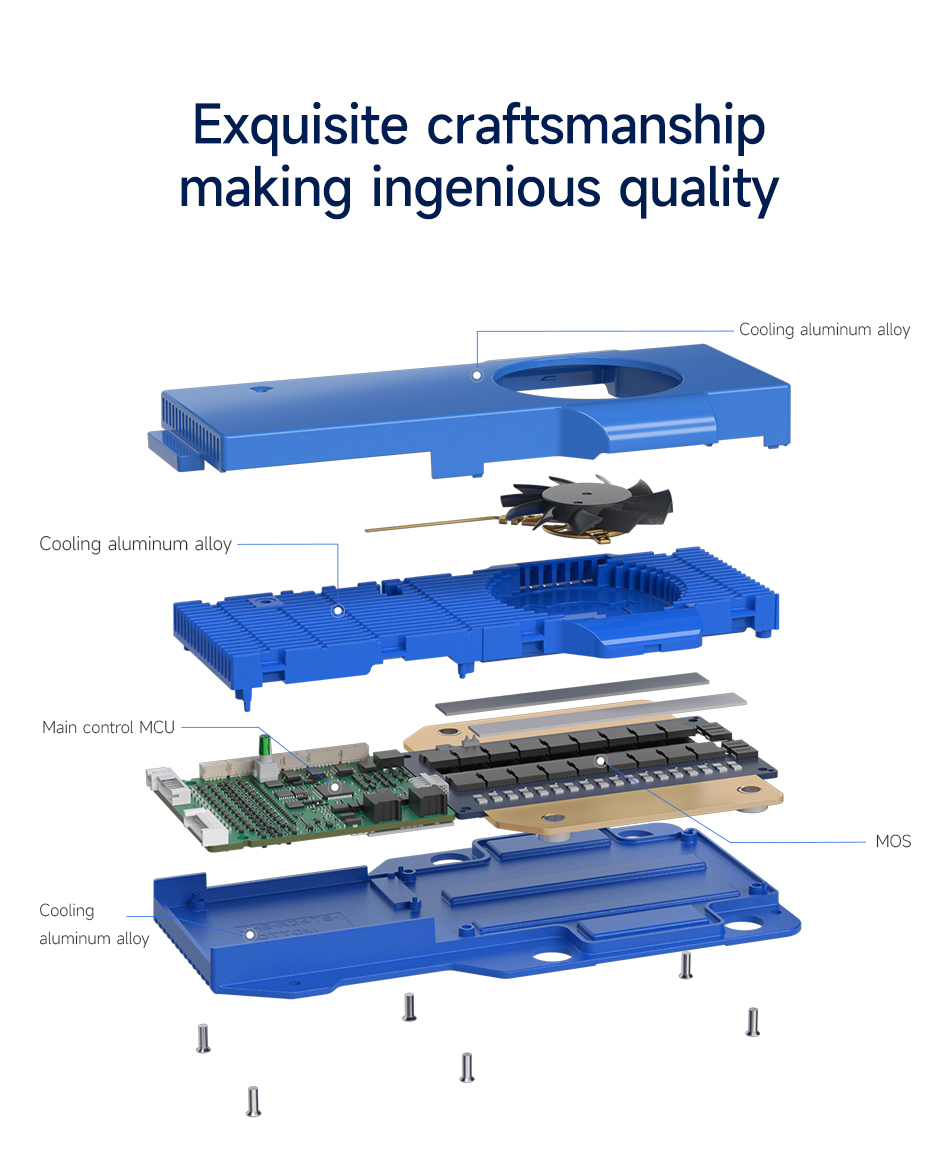

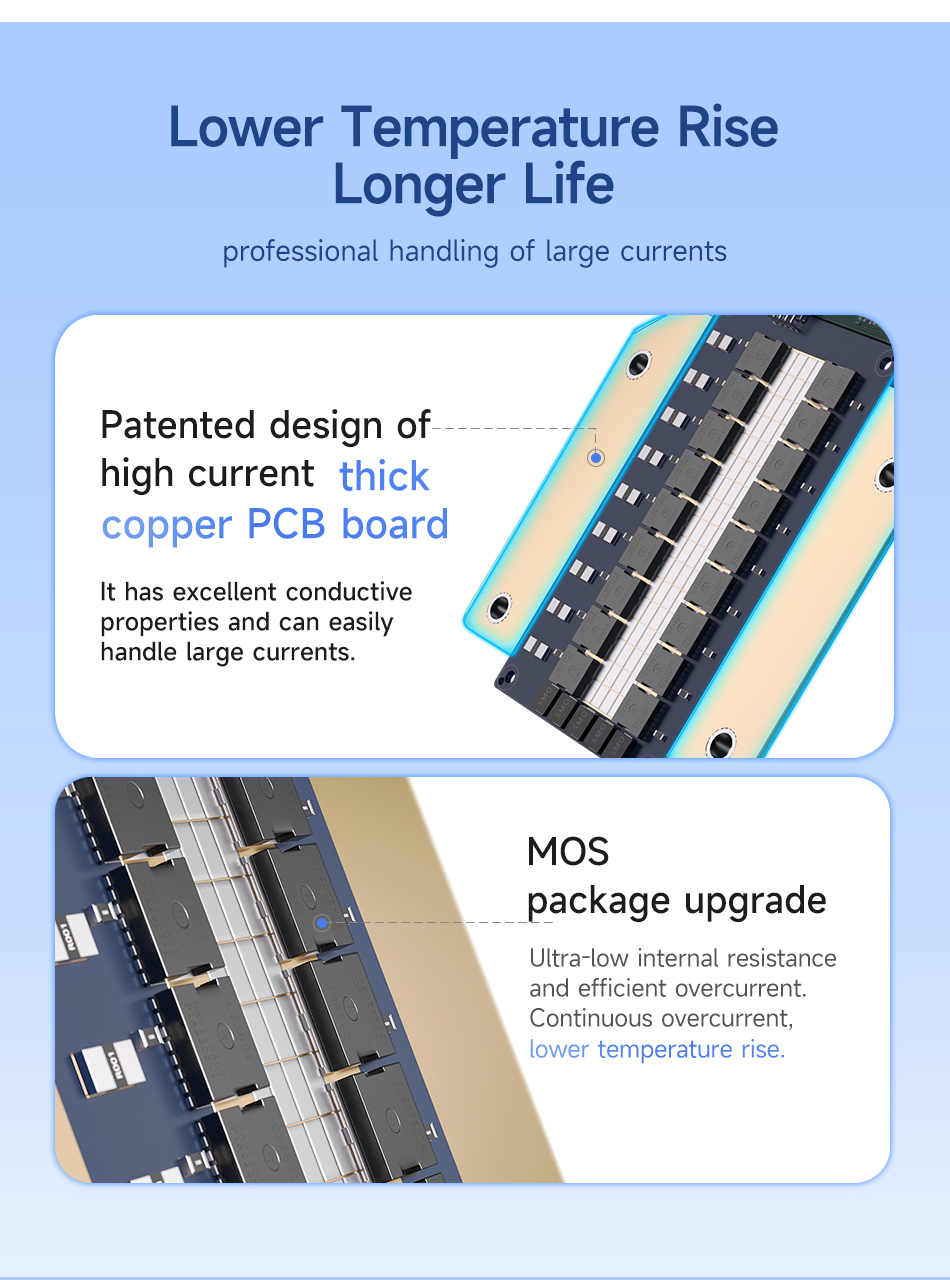

Internal Structure of the Product

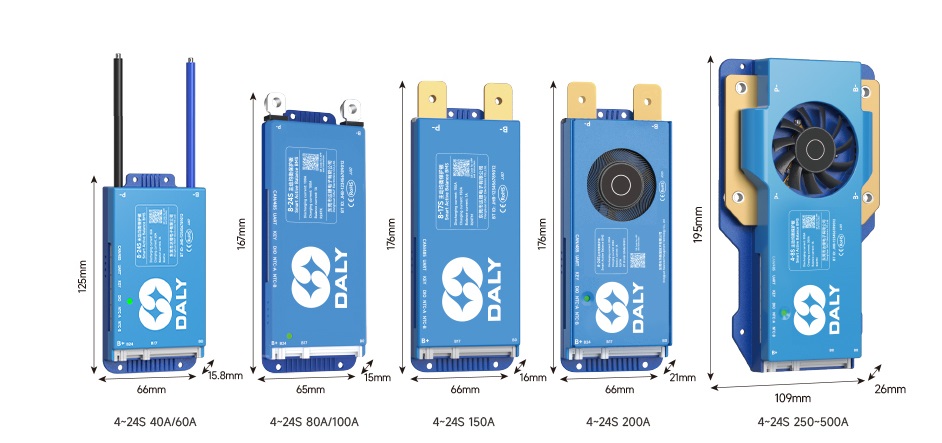

Size
