8-way ON-OFF Switch Panel - Overcurrent Protection

8-Piece ON-OFF Red Illuminated Switch Switch Panel - Overcurrent Protection

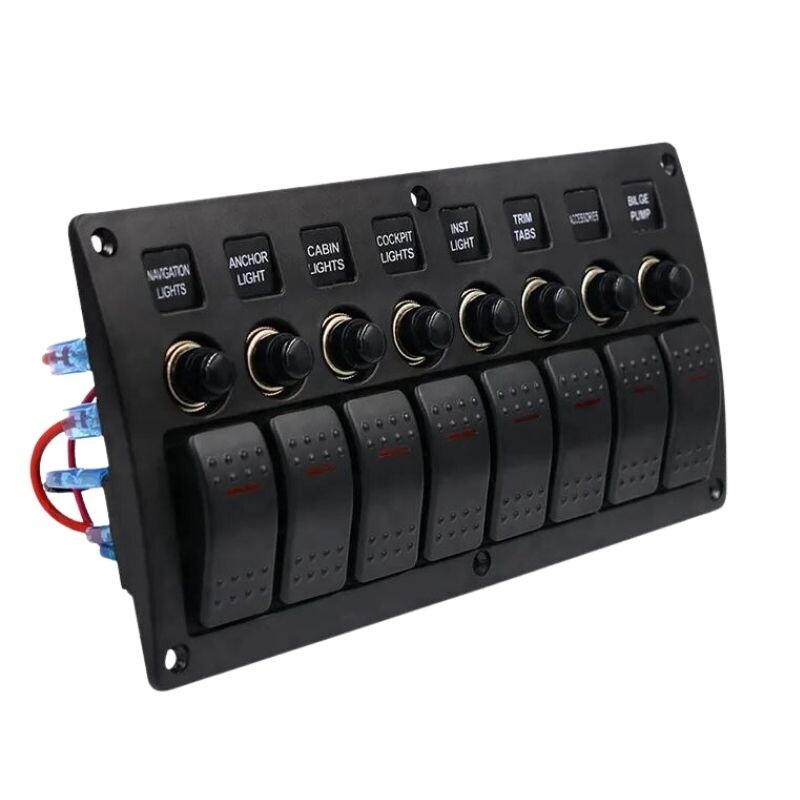

8-Piece ON-OFF Red Illuminated Switch Switch Panel - Overcurrent Protection, It is generally a preferred product in the automotive industry, vehicles, boats and caravans. There are 8 illuminated on-off switches on the product. There are circuit breaker fuses on the buttons to protect against overcurrent. It has IP66 protection class.

Circuit breaker fuses have different current values. If you hold the panel with the buttons down, the current values ​​of the circuit breakers are listed as 5A - 5A - 5A - 5A - 10A - 10A - 15A - 15A, starting from the left side. You can reset the circuit breaker and make it ready for use again by pressing the buttons of the circuit breakers.

Features

• Supply Voltage: 12-24VDC
• Button Rated Current: 12V 20A / 24V 10A
• Button Light: Red
• Fuse Protection: Yes
• Protection Class: IP66
• Dimension: 240x115mm
• Distance Between Holes: 110x92mm
>
• Hole Size: 4mm
