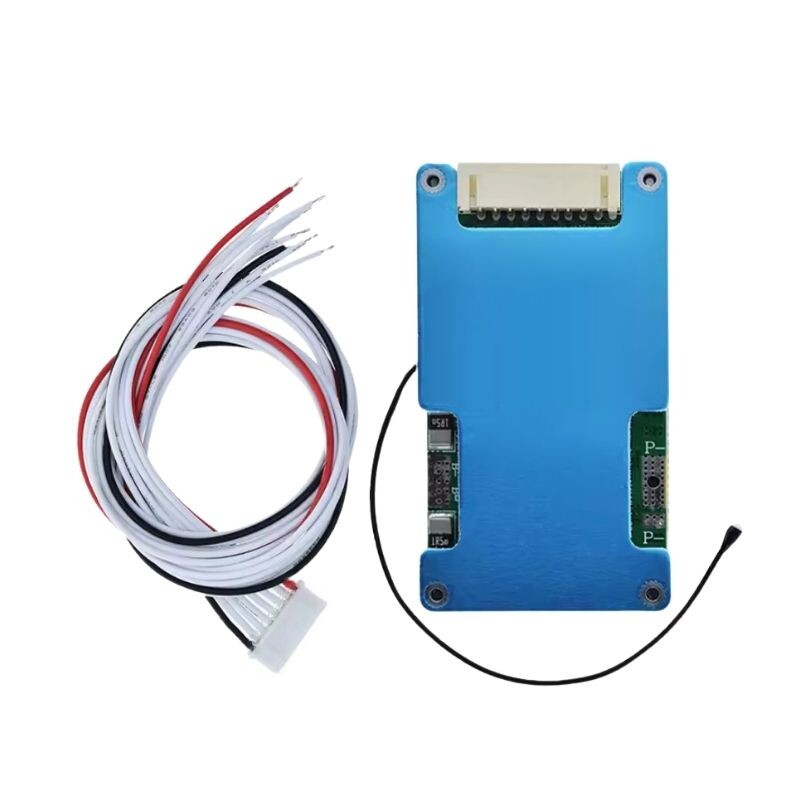

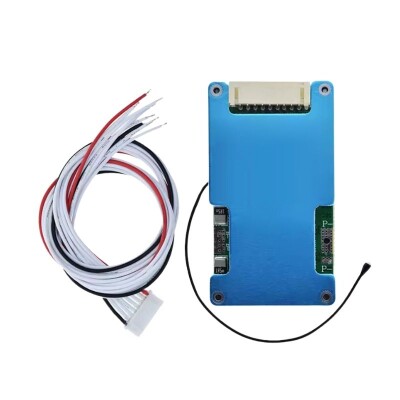

8S 29.6V 10A LiPo & Lion & 18650 BMS Battery Protective Balance Circuit

8S 29.6V 10A LiPo & Lion & 18650 BMS Battery Protective Balance Circuit

8S 29.6V 10A LiPo & Lion & 18650 BMS Battery Protective Balance Circuit, With this module, you can charge your rechargeable batteries by protecting them from high voltage, and it also prevents batteries that are about to run out from drawing current and preventing them from deteriorating.

Features

• 10A High Current Support: It handles up to 10A continuous current, suitable for high power applications. It provides reliable energy delivery for demanding devices and systems.
• 8S Configuration: Designed for 8 series lithium-ion cells, it provides balanced charge and discharge. It maintains cell balance for improved performance and battery life.
• Advanced Protection Features: Protects against overcharge, overdischarge, short circuit and overcurrent. Improves safety and prevents battery pack damage.
• Effective Thermal Management: Made with components that provide effective heat dissipation during operation. Prevents overheating and maintains consistent performance under load.
• Compact and Durable Design: This 8S 10A BMS 18650 battery charger board easily fits a variety of battery setups and projects. Its durable construction ensures reliability and long life in a variety of conditions.

Technical Specifications

• Supported Battery Type: 18650, Lithium-Ion
• Number of Cells: 8 cells in series (8S configuration)
• Nominal Voltage: 29.6 V
• Maximum Charge Voltage: 33.6 V (4.2 V per cell)
• Overcharge Protection Voltage 4.25 V ± 0.05 V per cell
• Overdischarge Protection Voltage 3.0 V ± 0.05 V per cell
• Maximum Continuous Discharge Current: 10 A
• Charge Current: Up to 10 A Up
• Balance Current 60 mA – 80 mA
• Balance Function: Active Balance feature is available
• Internal Resistance: ≤ 20 mΩ
• Dimensions: Approx. 62 mm x 35 mm x 10 mm
• Protection Features;
  • Overcharge
  • Overdischarge
  • Short Circuit
  • Overcurrent
  • Overtemperature
