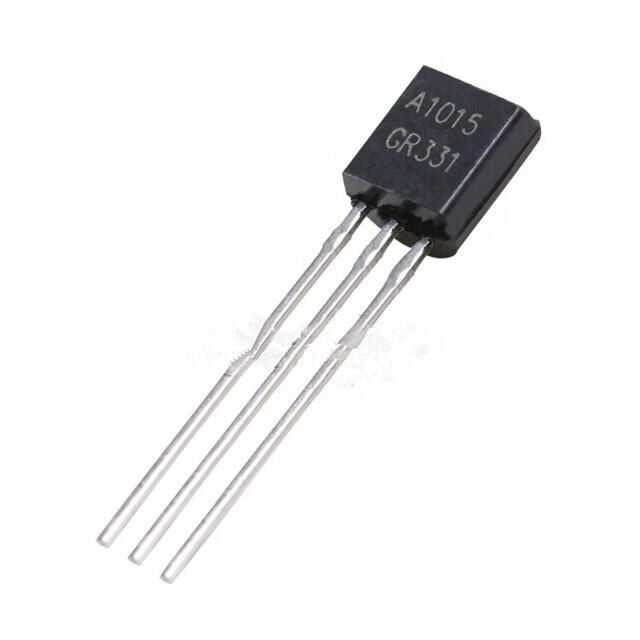

A1015 - TO92 PNP Transistor

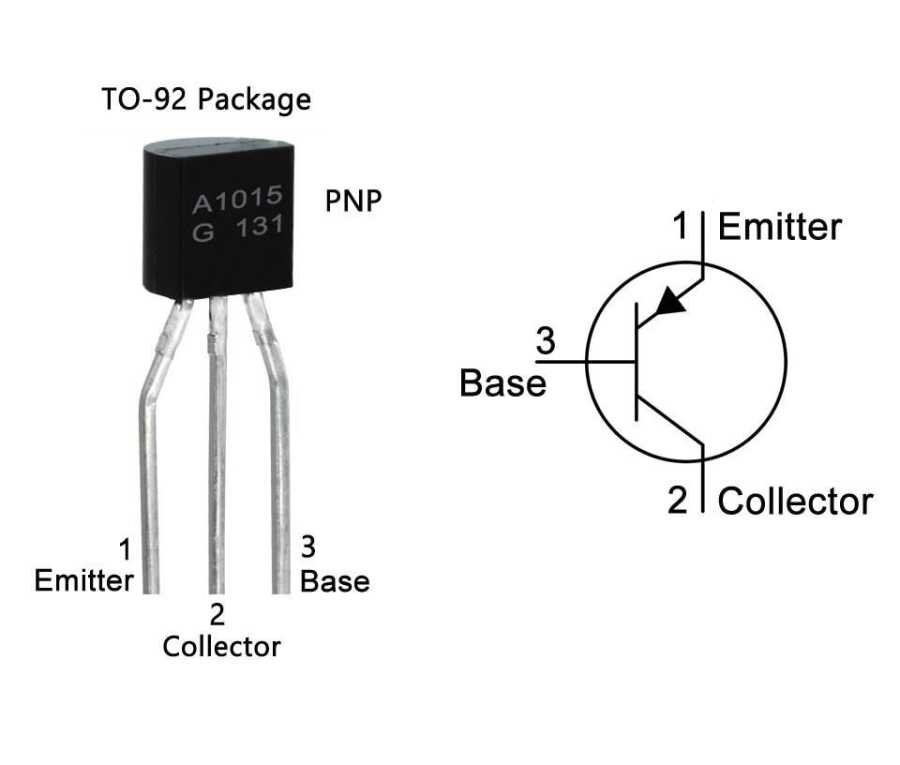

A1015 is a general purpose audio amplifier transistor, this article explains A1015 transistor pinout, equivalent, uses, specifications, features and other details about this transistor.
Equivalent Transistors:
2N2907, 2N3906, A733, 2SA1266 (These transistors The pin configuration may be different from A1015, so it is recommended to first check the pin configuration of the transistor you will replace with A1015 in a circuit.)
Usages ;
- Audio Preamplifier Circuits
- Audio Amplifier Circuits
- Audio amplification Stages
- Switching Loads Below 150mA
A1015 Features
- Package Type: TO-92
- Transistor Type: PNP
- Maximum Collector Current ( IC): -150mA
- Max. Collector-Emitter Voltage (VCE): -50V
- Max. Collector-Base Voltage (VCB): -50V
- Max. Emitter-Base Voltage (VEBO): -5V
- Max. Collector Dissipation (Pc): 400 milliWatt
- Maximum Transient Frequency (fT): 80 MHz
- Minimum and Maximum DC Current Gain (hFE): 70 – 400
- Maximum Storage and Operating Temperature: - Must be 65 to +150 Celsius
