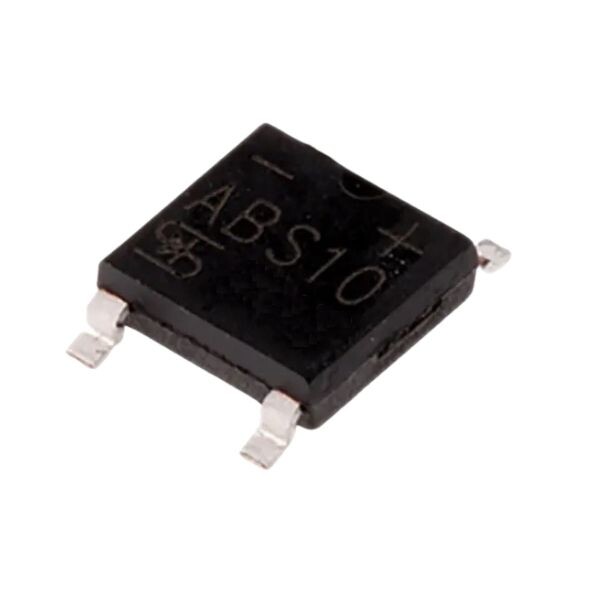

ABS10 1A 1000V SMD Bridge Diode

ABS10 1A 1000V SMD Bridge Diode

ABS10 is a glass passivated bridge rectifier with 1000V repetitive peak reverse voltage and 1A continuous forward current capacity. It is an efficient and reliable diode with 30A high surge current capacity and 0.95V low forward voltage value. Ideal for surface mount (SMD) applications.

Applications

• Switching mode power supplies (SMPS)
• Adapters
• Lighting applications
• Consumer electronics
• Battery chargers
• Home appliances
• Office equipment
• Telecommunications systems

Technical Specifications

• Glass passivated chip structure
• Continuous forward current (IF): 1A (0.8A on glass-epoxy PCB)
• Maximum forward voltage drop (VF): 0.95V (@0.4A)
• Maximum inrush current (IFSM): 30A (8.3ms half sine wave)
• Reverse current (IR): 10µA @25°C, 150µA @125°C
• Operating temperature range: -55°C ~ +150°C
