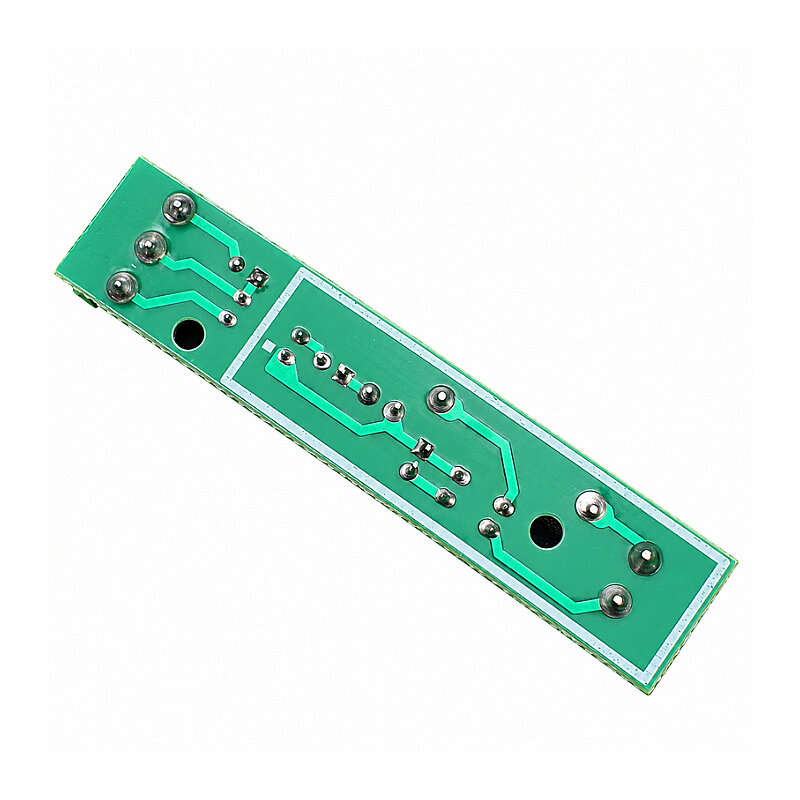

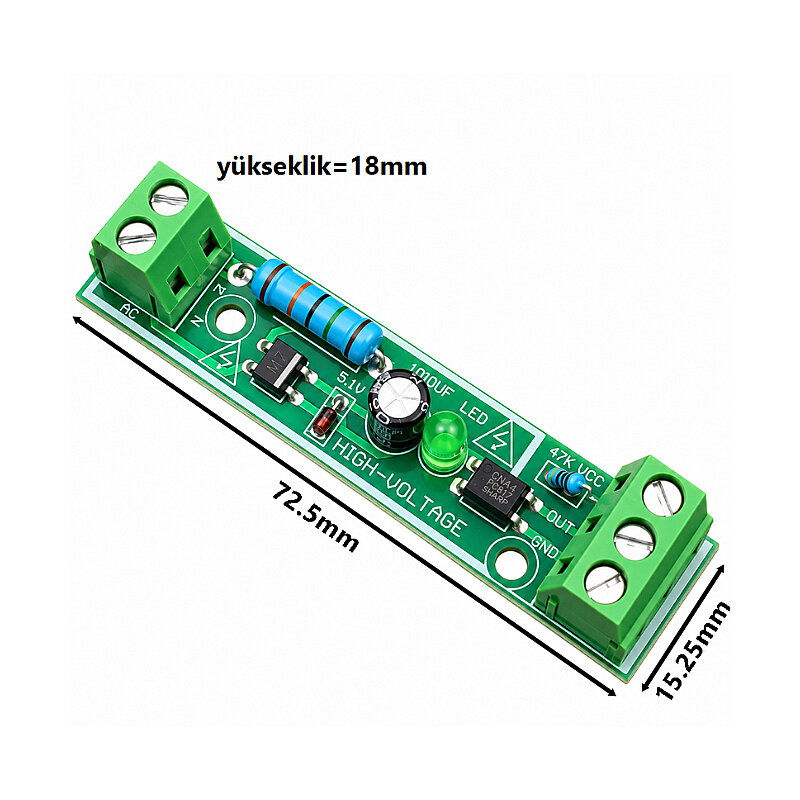

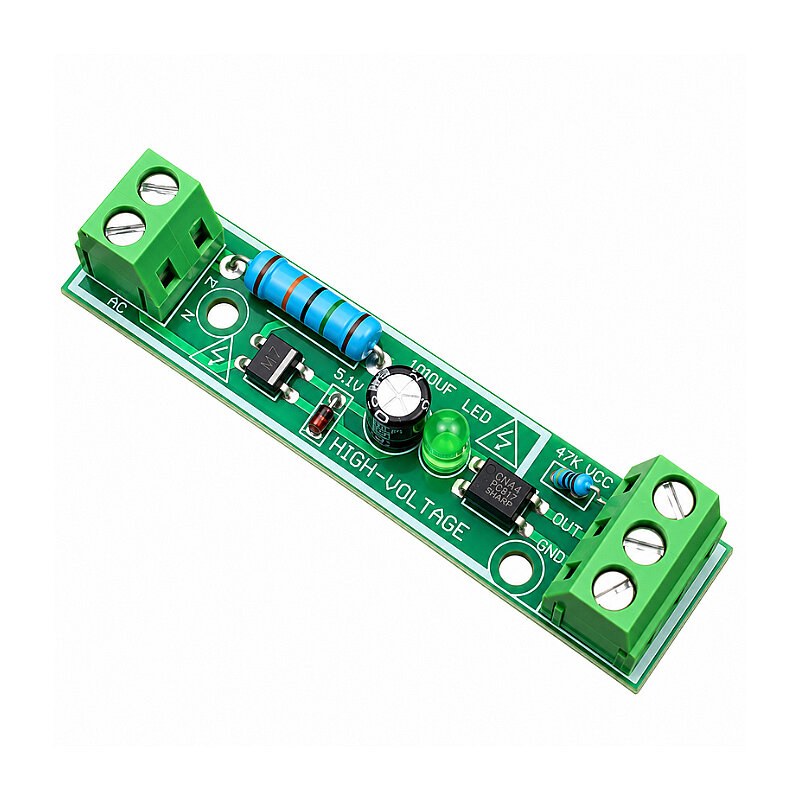

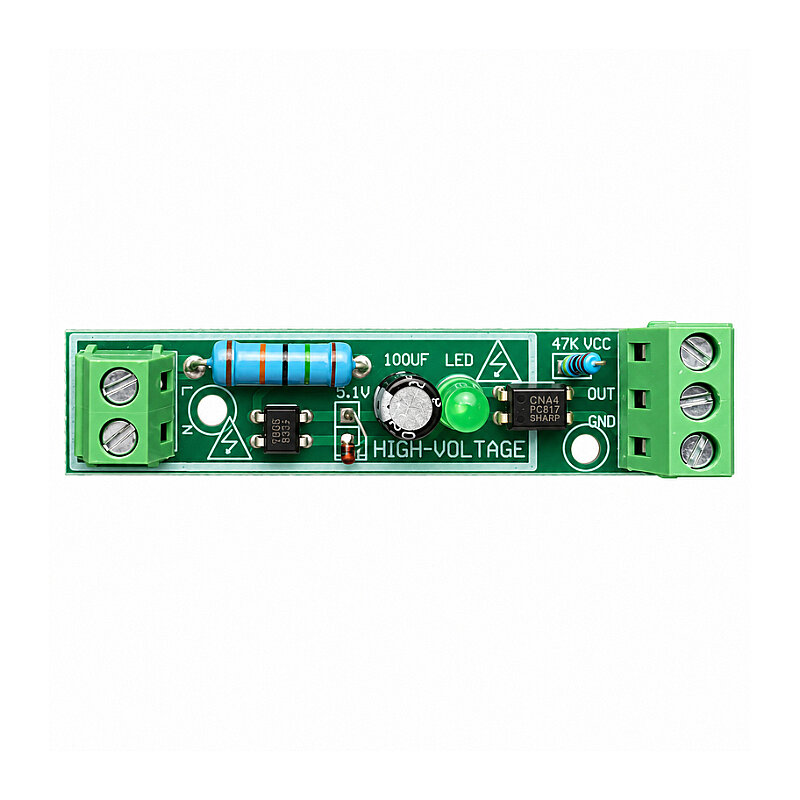

AC 220V 1-Channel Optocoupler Isolation Module

AC 220V 1-Channel Optocoupler Isolation Module. It can detect the presence of an AC 220V input signal and provide a corresponding DC voltage output. The output signal is compatible with PLC systems and other control equipment.

It detects the presence of input power; the output state changes when input power is detected.

Caution: When the module is powered on, the solder points or components on the board must not come into contact with any metal parts of the device or with people, due to the high AC voltage present.

• Input Voltage: AC 220V
• Output Voltage Level: DC 3V~5V
• Output Type: PNP (High-level) signal output
• Output Current: 100mA~300mA
• Operating Temperature: -20°C ~ 85°C
• Operating Humidity: 10%~85% RH
