AD820AN DIP-8 OpAmp IC
202,40
TL
+
VAT
242,88
TL
Notify Me When It Arrives
202,40
TL
+
VAT
242,88
TL
Add to Favorite
RecommendCommentAlarm Price

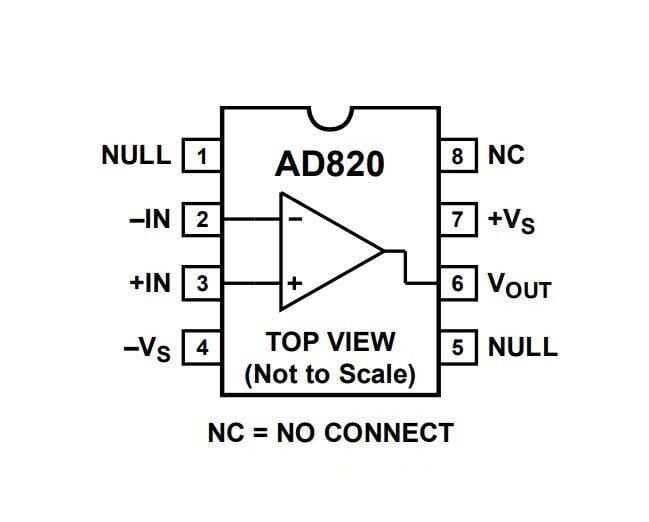

AD820AN DIP-8 OpAmp Integrated
The AD820 is a precision low-power FET input op amp that can operate from a single source from 5V to 30V or from dual sources from ±2.5V to ±15V. It features true single supply with one input voltage. The reach below the negative rail allows the AD820 to accommodate input signals below ground in single-supply mode. Output voltage swing extends up to 10 mV of each rail, providing maximum output dynamic range.
Areas of Use
Battery-operated precision instrumentation
Photodiode preamps
Active filters
12-bit to 14-bit data acquisition systems
Medical instrumentation
Low power references and regulators
| Series | NAME |
| Supply Voltage Odd / Even (±) | 5V ~ 30V, ± 2.5V ~ 15V |
| Number of Channels | 1 Channel |
| Bandwidth | 1.8 Mhz |
| SR - Rotation Speed | 3 V/us |
| Number of Pins | 8 Pin |
| Package Type | DIP-8 |
