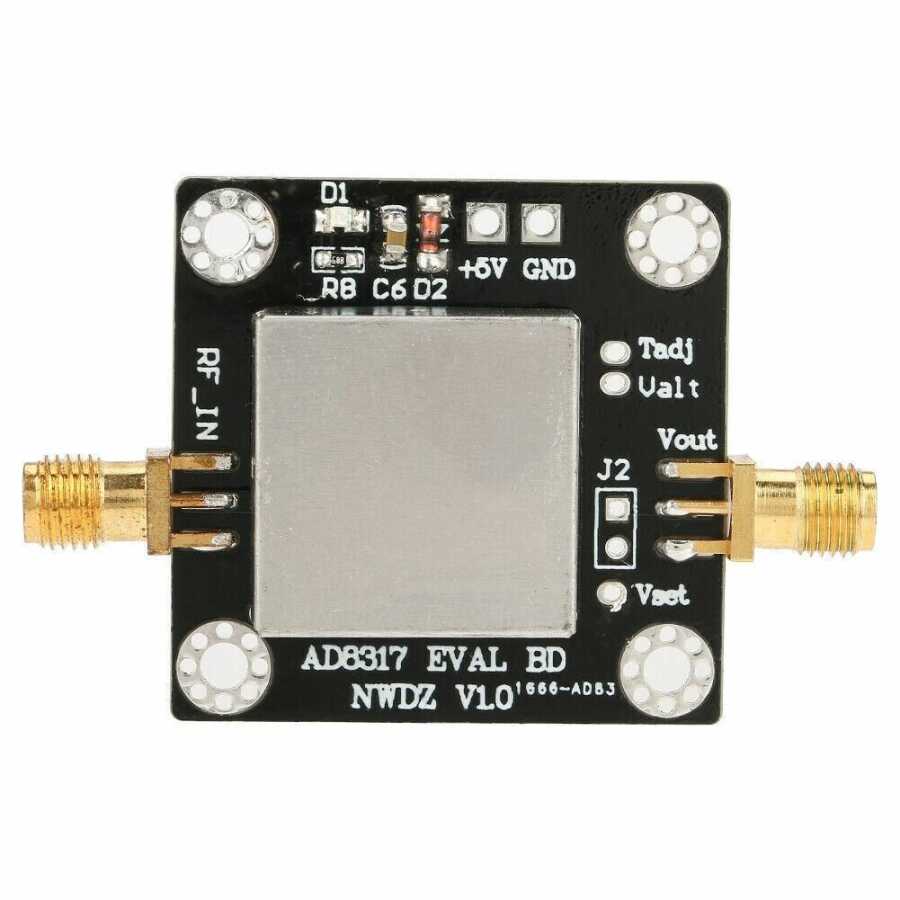

AD8317 1M-10GHz 60dB RF Power Meter Logarithmic Detector - 1

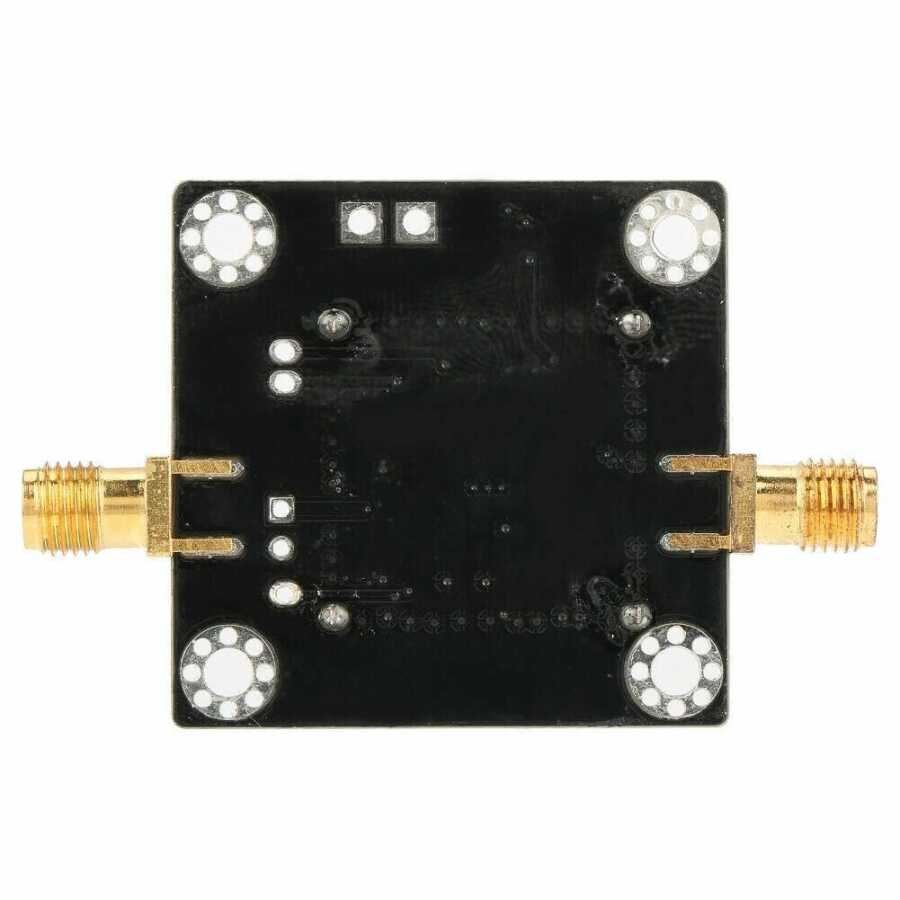

AD8317 1M-10GHz 60dB RF Power Meter Logarithmic Detector - 2

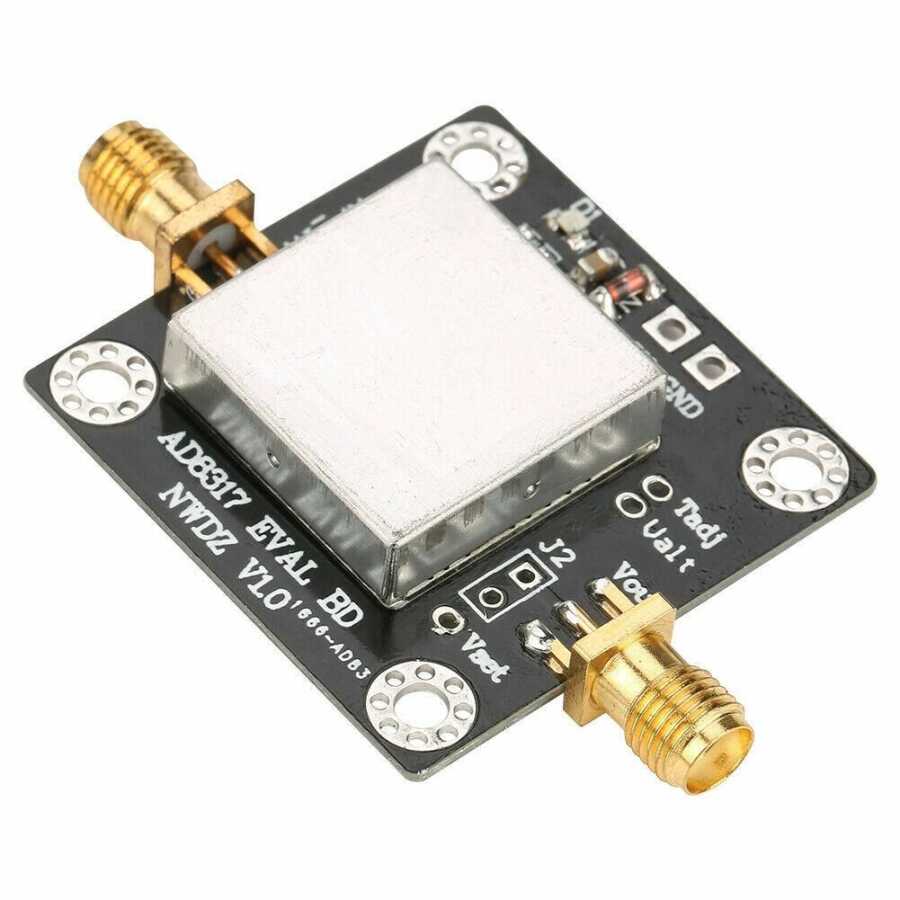

AD8317 1M-10GHz 60dB RF Power Meter Logarithmic Detector - 3
0 Comment

AD8317 1M-10GHz 60dB RF Power Meter Logarithmic Detector

Category: RF AmplifierBrand: MotorobitProduct code : KHB.RFM.01.000104
1.100,00 TL + VAT
1.320,00 TL
1.100,00 TL + VAT
1.320,00 TL
9 Product
Add to Favorite
RecommendCommentAlarm Price

AD8317 1M-10GHz 60dB RF Power Meter Logarithmic Detector

Designed using AD8317 chip and RF signal strength used for detection. It can detect the power between -55dBm and 0dBm of an RF signal, thus converting the RF signal into DC voltage output. The larger the amplitude or power of the RF signal, the higher the output voltage, and the output voltage is directly proportional to the logarithm of the input signal amplitude, thus expanding the dynamic range of the detected signal, these ranges reach 55dB.

Can be widely used in radio frequency signal detection, signal strength measurement, environmental field strength detection. It can also be used as part of automatic gain control and automatic level control.

Applications

RF transmitter PA setpoint control and level monitoring

Applications


Power monitoring on a radio line transmitter
Base stations
RSSI measurements on WLAN, WiMAX and radar

Technical Specifications

Input impedance: 50 Ohm
Output impedance: 50 Ohm (video impedance)
Operating frequency Frequency: 1MHz ~ 10GHz
Output voltage range: 1.6 ~ 0.4v (corresponding to -55 ~ 0 dBm)
Input/output ratio: 22mv /dBm
Input dynamic range: -60 ~ +5dBm (high linear dynamic range: -55 ~ 0 dBm)
Power supply voltage: +3.3~5V.DC @20mA
Size: 6*3.5cm
