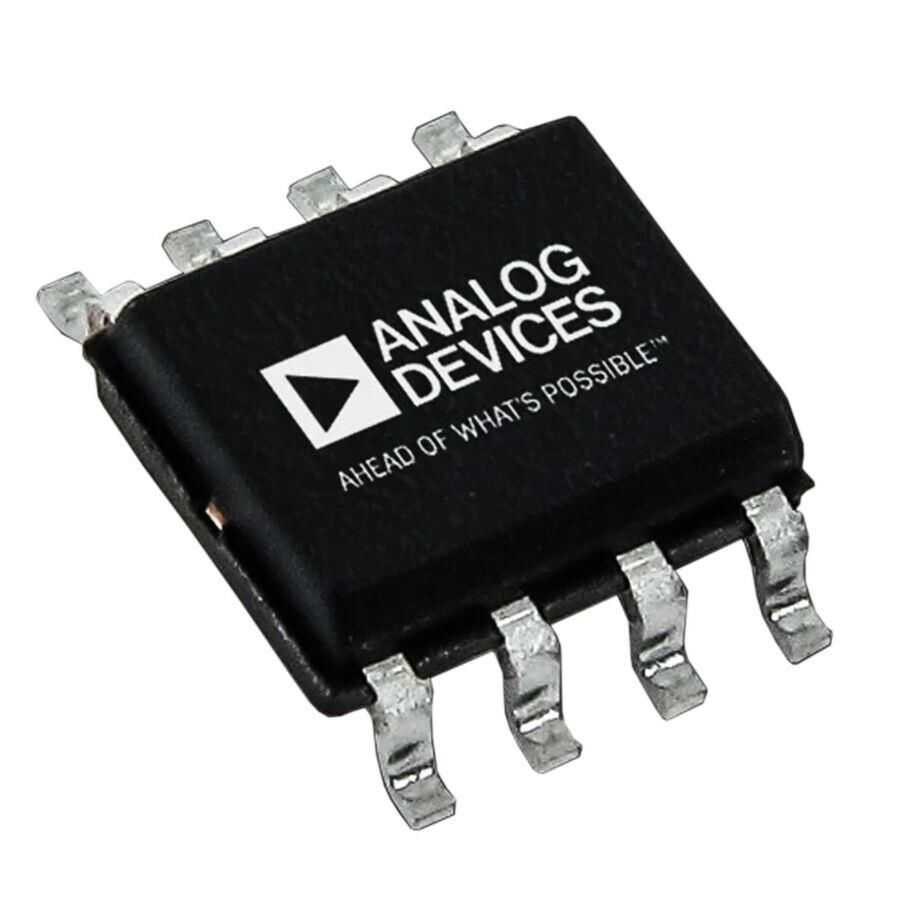

ADM485ARZ SOIC-8 Smd RS Serial Protocol IC

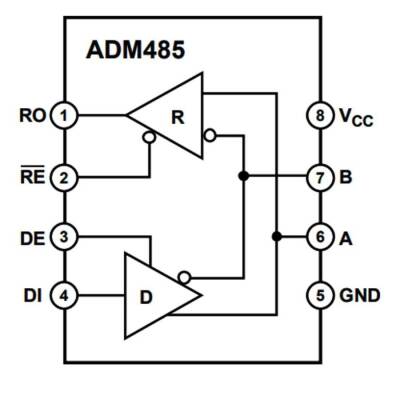

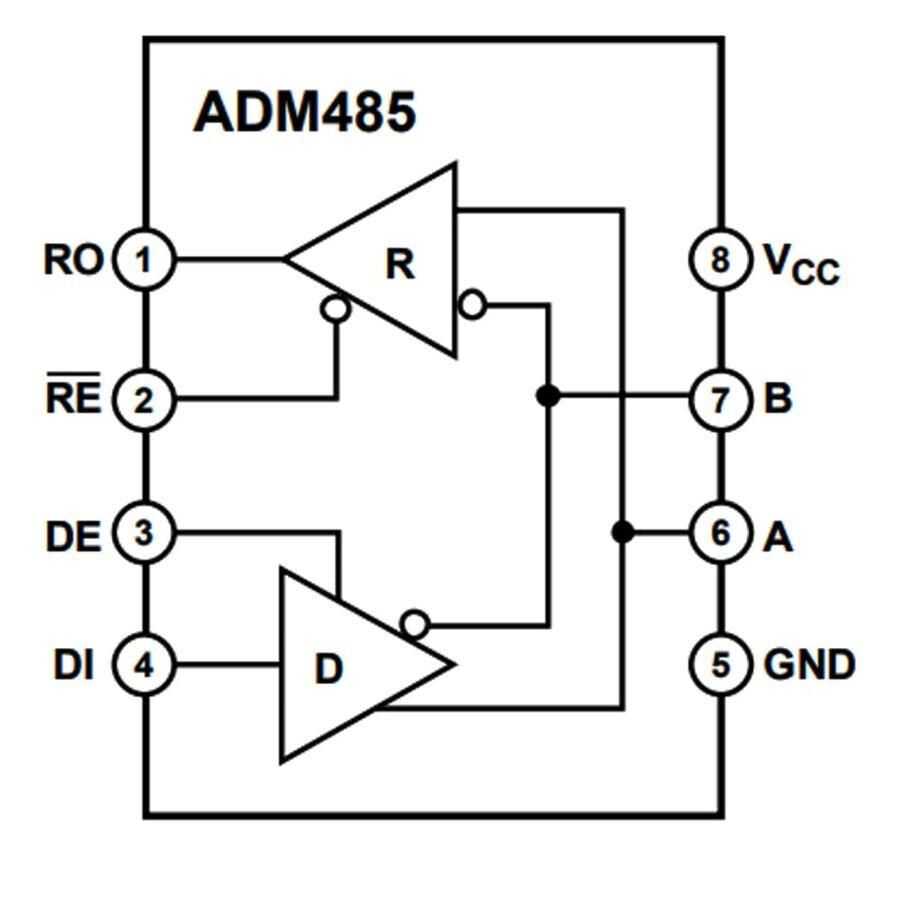

ADM485 is a differential line transceiver suitable for high-speed bidirectional data communication on multipoint bus transmission lines. It is designed for balanced data transmission and complies with EIA standards RS-485 and RS-422. The part includes a differential line driver and a differential line receiver. Both the driver and the receiver can be activated independently. When disabled, the outputs are tri-state.

The ADM485 operates from a single 5V power supply. Excessive power loss due to bus contention or output short circuit is prevented by a thermal shutdown circuit. If a significant temperature increase is detected in the internal driver circuit during fault conditions, this feature forces the driver output into a high impedance state.

Uses

Low power RS-485 systems
DTE/DCE interface
Packet switching
Local area networks (LNAs)
data concentration
Data multiplexers< /LI>
Integrated services digital network (ISDN)

Input Voltage	4.75V - 5.25V
Feed Current (Max)	2.2mA
Data Rate	5Mbps
Protocol	RS-485
Number of Pins	8 Pin

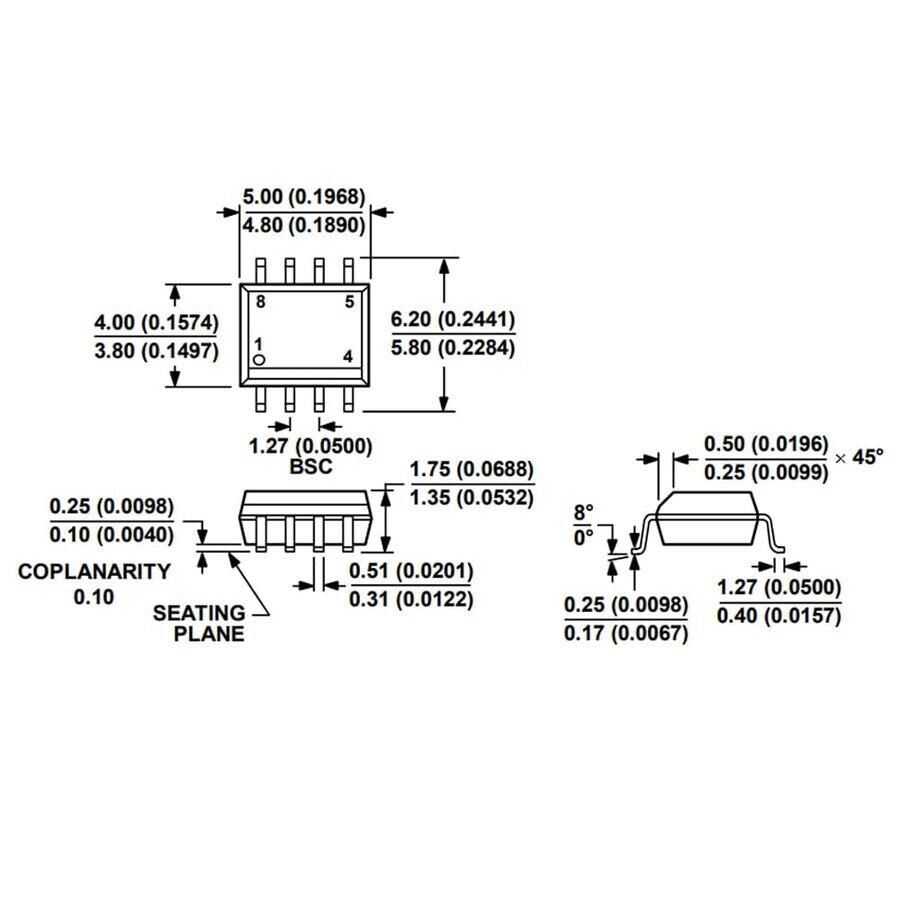

Package Type	SOIC-8

ADM485ARZ Datasheet
