AFS-30 4-Way Mini ANL Fuse Distribution Block

AFS-30 4-Way Mini ANL Fuse Distribution Block

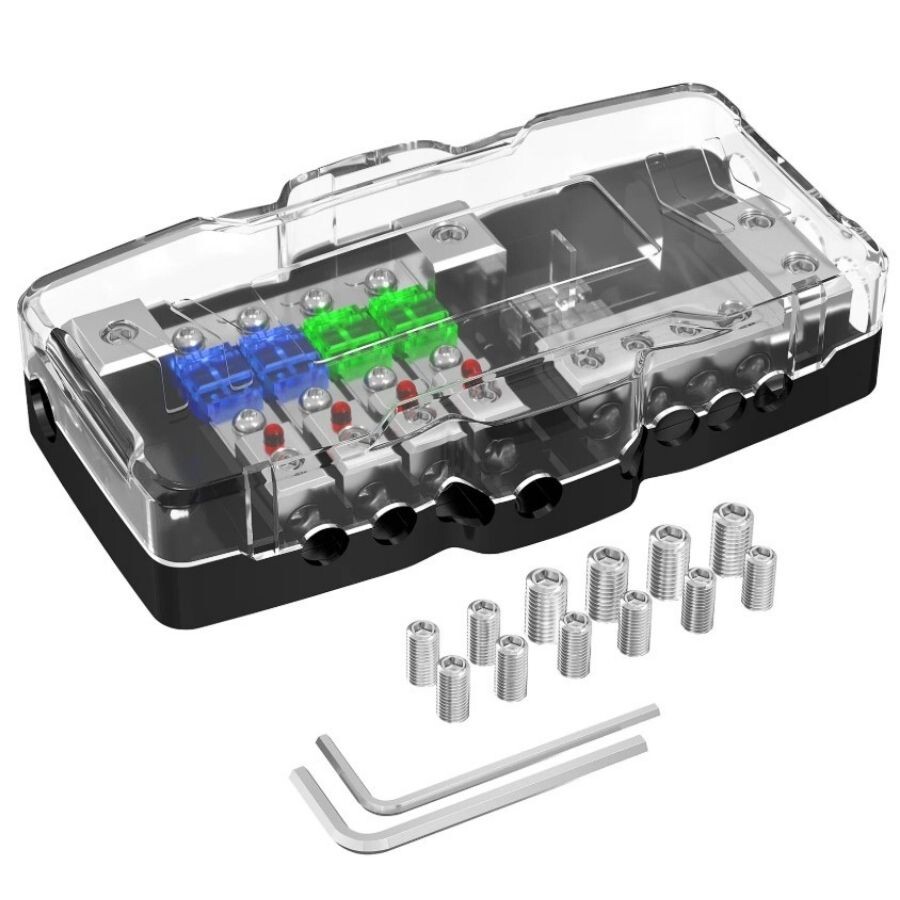

The AFS-30 4-Way Mini ANL Fuse Distribution Block is a compact DC power distribution solution designed to safely and neatly distribute a single main power line to multiple outputs. By combining a positive power distribution block and a negative chassis distribution point within a single housing, the product ensures an organized installation, particularly for car audio systems and multi-device DC equipment setups.

The distribution block features a 2-input, 4-output configuration. On the positive side, each output is protected by an individual Mini-ANL fuse, while the negative side allows for common chassis distribution.

This design allows for the centralized management of both power and ground connections for amplifiers, audio system equipment, or various DC devices.

Specifications

• Operating Voltage: 12V DC
• Number of Inputs: 2
• Number of Outputs: 4
• Positive Distribution: 4 individually fused outputs
• Negative Distribution: Common chassis/ground distribution
• Input Cable Compatibility: 0-4 AWG
• Output Cable Compatibility: 4-8 AWG
• Fuse Type: Mini-ANL
• Included Fuses: 2 × 30A, 2 × 60A, 2 × 80A (LED)
• Indicator: Yes
• LED Function: Red warning light upon fuse blowout
• Ferrule Adapter: Yes

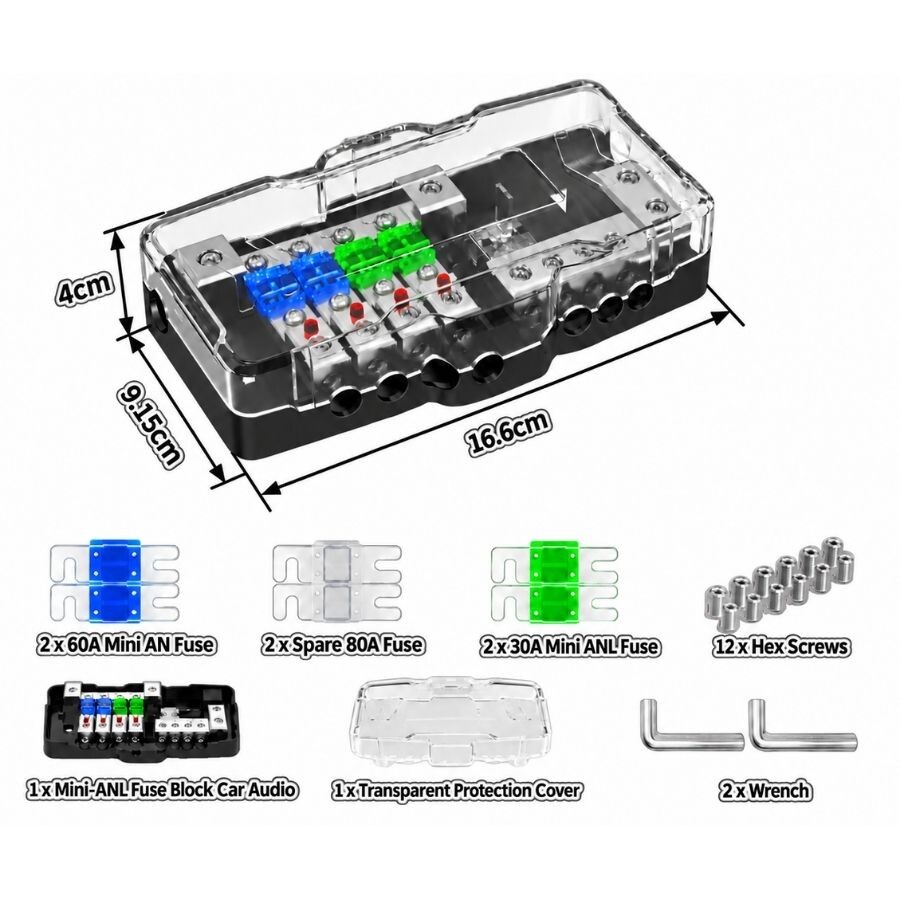

• Dimensions: 165 × 91 × 36 mm
• Function: Power distribution, chassis distribution, and circuit-specific fuse protection
• Mounting Type: Fixed surface mount

Applications

• Car audio systems
• Amplifier power distribution
• Subwoofer and multi-amplifier systems
• Automotive electrical systems
• Caravans and motorhomes
• Trucks and commercial vehicles
• UTVs and off-road vehicles
• Boat and marine electrical systems
• Solar panel and battery systems
• 12V DC power distribution applications
• Protection of multiple devices with individual fuses
• Systems requiring common negative chassis distribution
