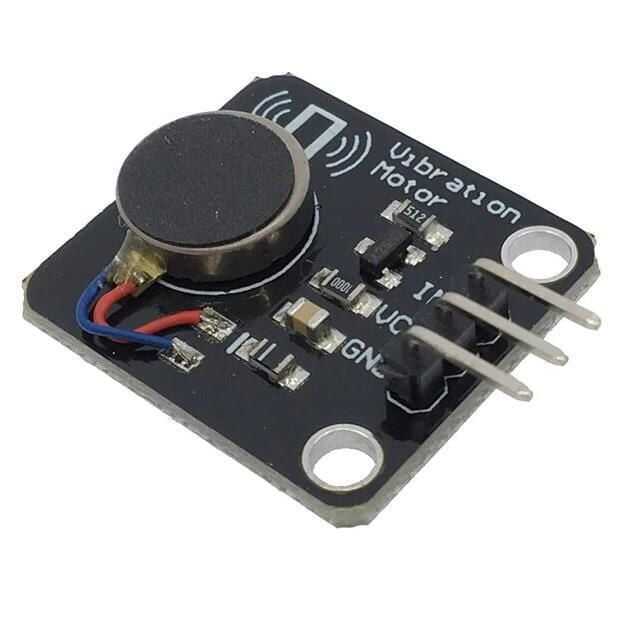

Arduino Vibration Motor Module
It is a small internal vibration motor module. After inputting a 5V power, you can control ON/OFF or the vibration intensity of the motor by digital signal or PWM signal.
The module is a high-quality mobile phone vibration It adopts motor, the vibration effect is obvious, the vibration intensity of motor can be controlled by PWM. The module can easily complete the conversion of electrical signal into mechanical vibration.
Portable intelligent device, suitable for the production of vibration-sensitive interactive products, to remember a small vibration motor, suitable as an inaudible indicator vibrates.
Technical Specifications
- Breadboard compatible
- Reducer Style: Vibrating
- Encoder: No
- Rated voltage: 5.0VDC
- Operating voltage : 3.0-6.0VDC
- Rated speed: minimum 9000 rpm
- Rated current: up to 60 mA
- Starting current: up to 90 mA
- Starting voltage: DC3.7V
- Insulation resistance: 10 Mohm
- Compatibility: Compatible with UNO R3 / Mega2560

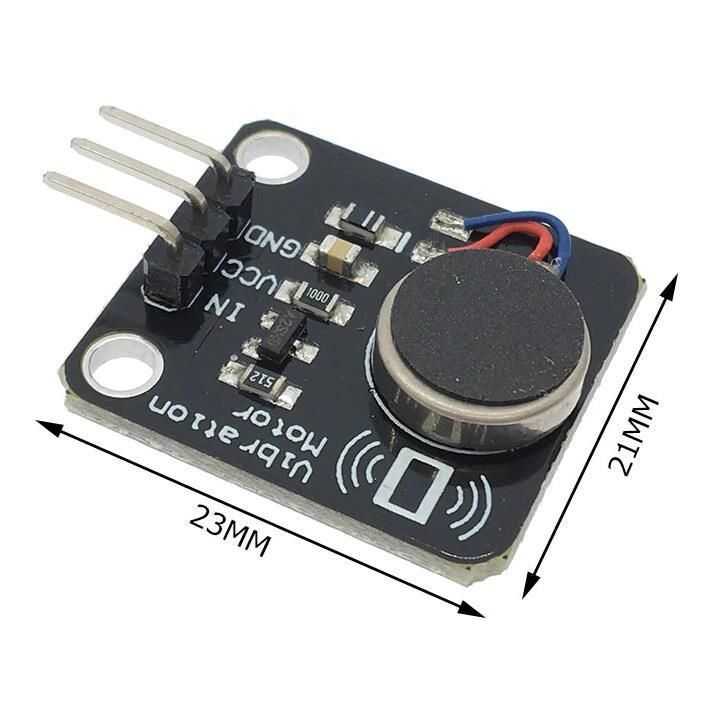

- Dimensions: 23x21x5mm
- Mounting Hole: 2 Holes 3mm
