ATTINY2313-20PU DIP-20 20MHz Microcontroller
261,00
TL
+
VAT
313,20
TL
Notify Me When It Arrives
261,00
TL
+
VAT
313,20
TL
Add to Favorite
10+
ProductRecommendCommentAlarm Price

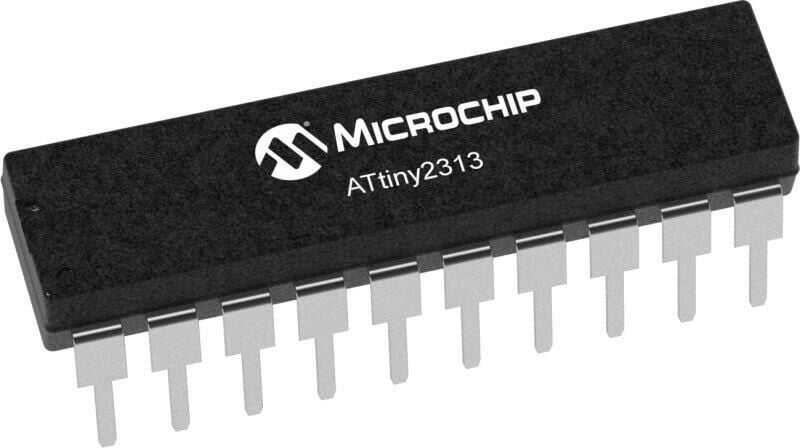

ATTINY2313-20PU DIP-20 20MHz Microcontroller
High-performance, low-power Microchip 8-bit AVR® RISC-based microcontroller The controller combines 2 KB ISP Flash memory, 128B ISP EEPROM, 128B internal SRAM, universal serial interface (USI), full duplex UART, and debugWIRE for on-board. chip debugging. The device supports a throughput of 20 MIPS at 20 MHz and operates between 2.7-5.5 volts.
Technical Specifications
| Product Code | ATTINY2313-20PU |
| Program Memory Type | Flash |
| Program Memory Size | 2 kB |
| Bus Width | 8-Bit |
| Max Clock Frequency | 20 MHz |
| Data RAM Size | 128 B |
| I/O Count | 18 |
| Number of Timers | 2 |
| Operating Voltage Range (V) | 2.7 - 5.5V |
| Number of Pins | 20 |
