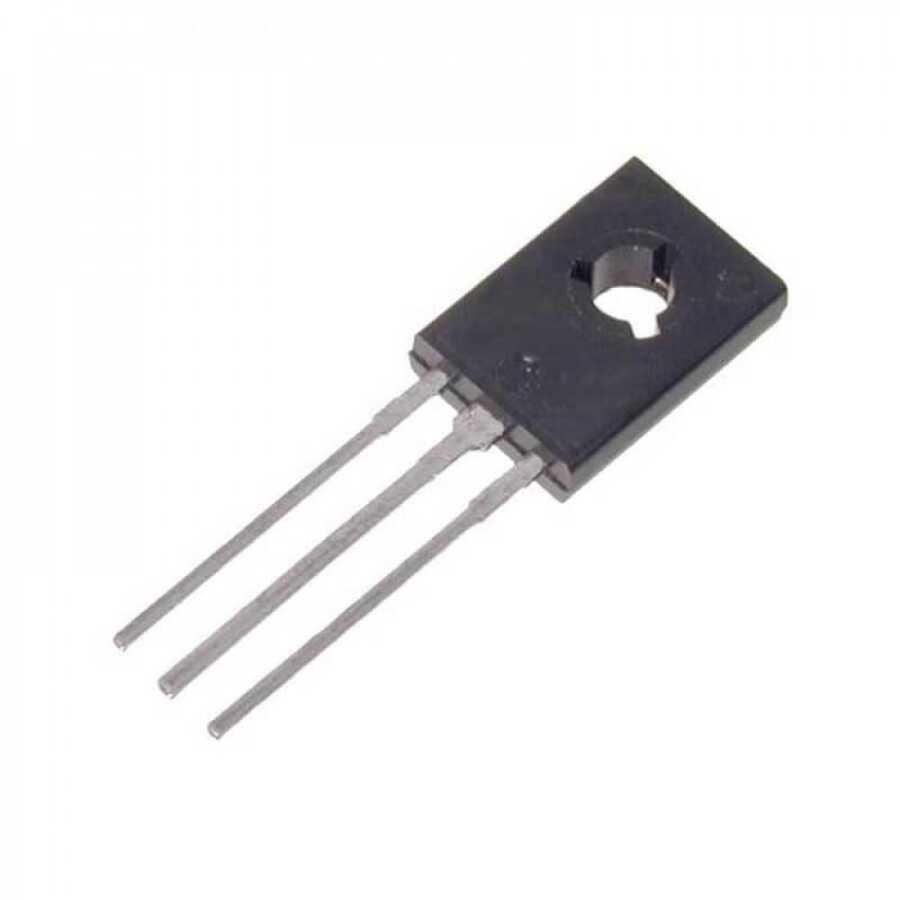

BD135 - TO126 NPN Transistor

The medium power silicon NPN transistor series is designed for use in audio amplifiers and drivers using complementary or semi-complementary circuits. Located in the TO-126 case. 45V is 1.5A.

Equivalent Transistors:

BD131, BD135G, BD137, BD137G, BD139, BD139G, BD165, BD167, BD169, BD175, BD177, BD179, BD187, BD189, BD226, BD228, BD230, BD233, BD233G, BD 235, BD235G, BD237, BD237G, BD375 , BD377, BD379, BD785, BD787, BD787G, BD789, MJE225, MJE242, MJE721, MJE722

Product Code	BD135
Transistor Type	NPN
Breakdown Voltage (Max)	45V
Collector Current (Ic) (Max)	1.5A
Base Current (IB)	0.5A

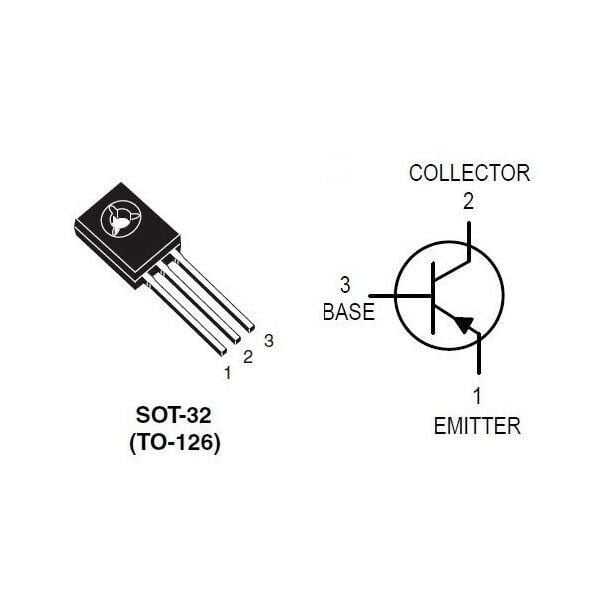

Package Type	TO-126

BD135 Datasheet
