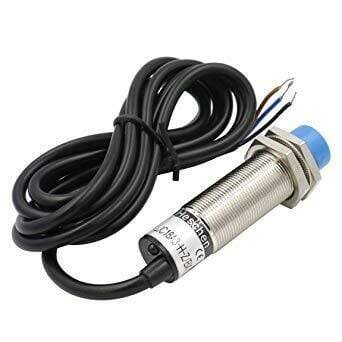

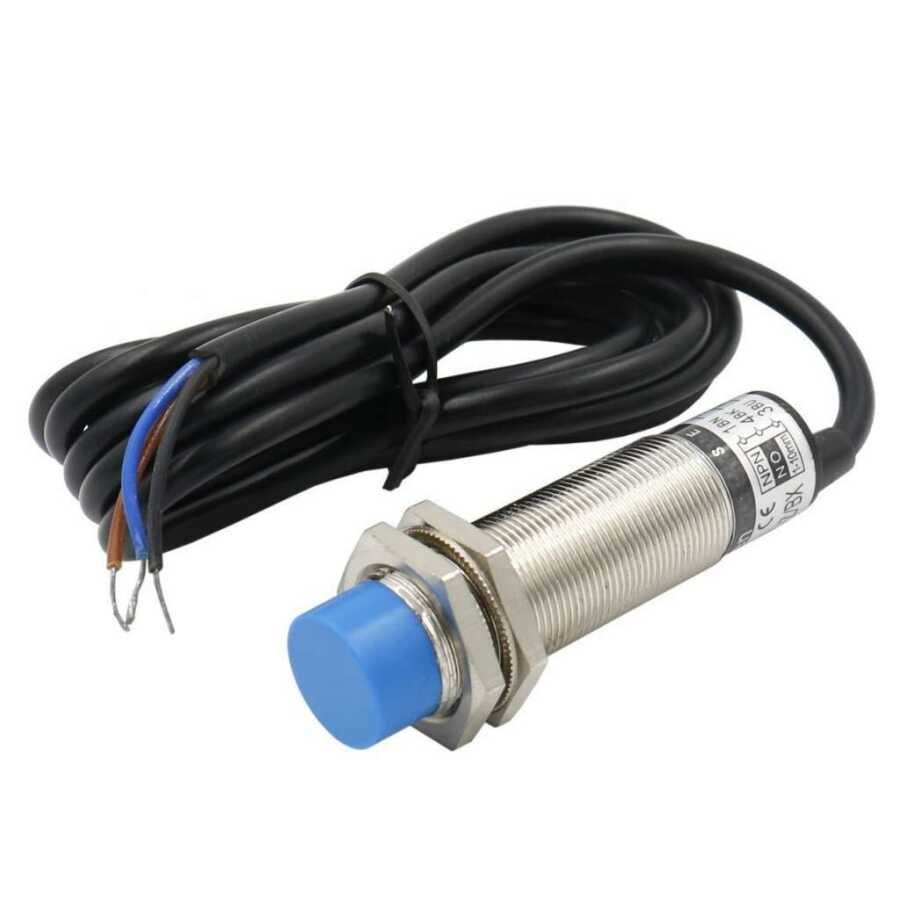

Capacitive NPN Distance Sensor LJC18A3-H-Z/BX

Product Name: Capacitive Proximity Switch,

Model: LJC18A3-H-Z / BX,

Wire Type: Cylindrical DC 3 Wire Type (Brown, Black, Blue)  ;

Key View Type: Cylinder Type

Theory : Capacitance Sensor,

Output Type: NPN NO

Diameter: 18mm;

Detection Distance: 1-10mm

Detection Object: Metal or Nonmetal Material,

Supply Voltage: DC 6-36V,

Current Output: 300mA,

Response Frequency: 100Hz

Operating Temperature: -25 ° C to +65 °C (In Non-Freezing Condition) Dimension: 7.5 x 4cm / 3" x 1.6" (L * Max Dia) Cable Length: 120cm / 47' External Material Plastic, Alloy

Net Weight: 85g Colour: Silver Tone, Yellow, Gray

Packing Content: 1 x Capacitive Proximity Switch
