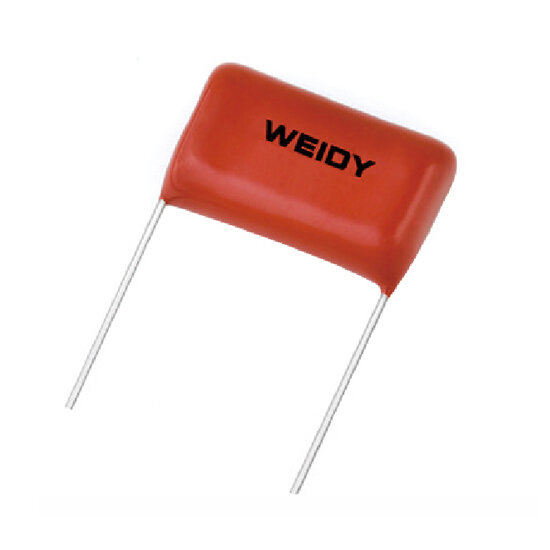

CBB21(E)-450V-105J-P15 1uF 450V 15mm Drop-Type Polyester Capacitor
Product code :
KOM.KND.03.000172
7,74
TL
+
VAT
9,29
TL
Notify Me When It Arrives
7,74
TL
+
VAT
9,29
TL
Add to Favorite
10+
RecommendCommentAlarm Price
CBB21(E)-450V-105J-P15 1uF 450V 15mm Drop-Type Polyester Capacitor
A capacitor is a passive two-terminal electrical component used to store energy electrostatically in an electric field. 450V 1uF 5% polyester capacitor.
Applications
Blocking, bypassing, filtering, and timing
High-frequency coupling and decoupling of fast digital circuits
Noise suppression in low-voltage applications
High-impact load
High-temperature operation
Technical Specifications
| Capacitor Type | Polyester Capacitor |
| Manufacturer Product Code | W492S105JM7L00A0EC |
| Reference Standard | GB/T 14579 (IEC 60384-17) |
| Climatic Category | 40/085/21 |
| Value | 1UF |
| Max. Operating Voltage | 450V |
| Leg Spacing | 15mm |
| Voltage Proof | 640Vdc (2s) |
| Dissipation Factor | < 0.1% (20°C, 1kHz) |
| Tolerance | %5 |
| Operating Temperature Range | -40°C ~ 105°C |
