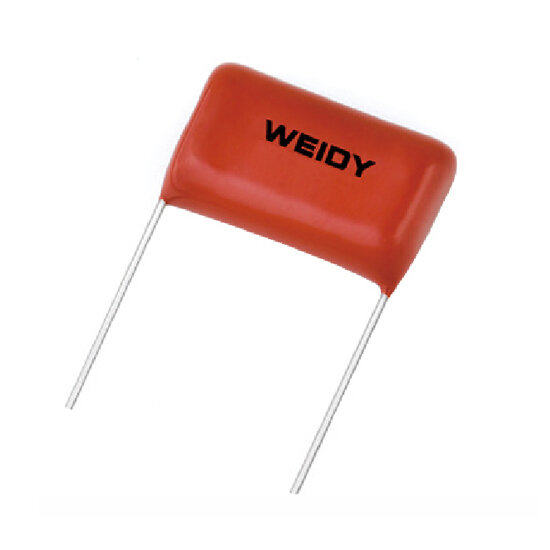

CBB21S-630V-104J-P10 100nF 0.1uF 630V 10mm Drop-Type Polyester Capacitor
A capacitor is a passive two-terminal electrical component used to store energy electrostatically in an electric field. 630V 100nF 5% polyester capacitor.
Applications
Blocking, bypassing, filtering, and timing
High-Frequency coupling and decoupling of fast digital circuits
Interference suppression in low-voltage applications
High-impact load
High-temperature operation
Technical Specifications
| Capacitor Type | Polyester Capacitor |
| Manufacturer Product Code | W372J104JK6L00COFC |
| Reference Standard | GB/T 10190 (IEC 60384-16) |
| Climatic Category | 40/105/56 |
| Value | 1UF |
| Max. Operating Voltage | 630V |
| Leg Spacing | 10mm |
| Voltage Proof | 1.6UR (5s) |
| Dissipation Factor | < 0.1% (20°C, 1kHz) |
| Tolerance | %5 |
| Operating Temperature Range | -40°C ~ 105°C |
