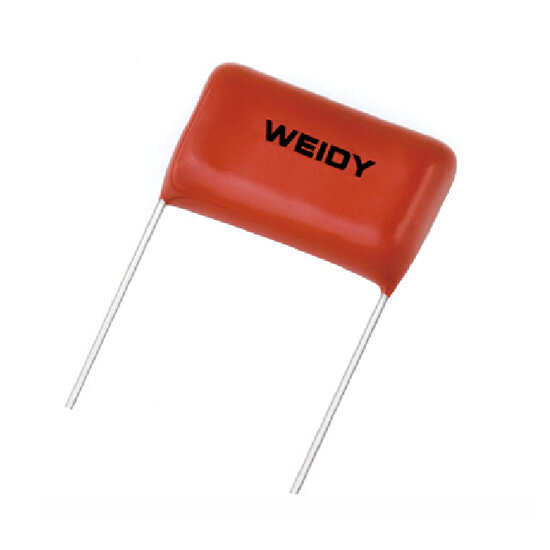

CBB21S-630V-334J-P15 330nF 0.33uF 630V 15mm Drop-Type Polyester Capacitor
Product code :
KOM.KND.03.000174
6,88
TL
+
VAT
8,26
TL
Notify Me When It Arrives
6,88
TL
+
VAT
8,26
TL
Add to Favorite
10+
RecommendCommentAlarm Price
CBB21S-630V-334J-P15 330nF 0.33uF 630V 15mm Drop-Type Polyester Capacitor
A capacitor is a passive two-terminal electrical component used to store energy electrostatically in an electric field. 630V 330nF 5% polyester capacitor.
Applications
Blocking, bypassing, filtering, and timing
High-Frequency coupling and decoupling of fast digital circuits
Noise suppression in low-voltage applications
High-impact load
High-temperature operation
Technical Specifications
| Capacitor Type | Polyester Capacitor |
| Manufacturer Product Code | W372J334JM7L00B0FC |
| Reference Standard | GB/T 10190 (IEC 60384-16) |
| Climatic Category | 40/105/56 |
| Value | 0.33uF (330nF) |
| Max. Operating Voltage | 630V |
| Leg Spacing | 15mm |
| Voltage Proof | 1.6UR (5s) |
| Dissipation Factor | < 10x10⁻⁴ (20°C, 1kHz) |
| Tolerance | %5 |
| Operating Temperature Range | -40°C ~ 105°C |
