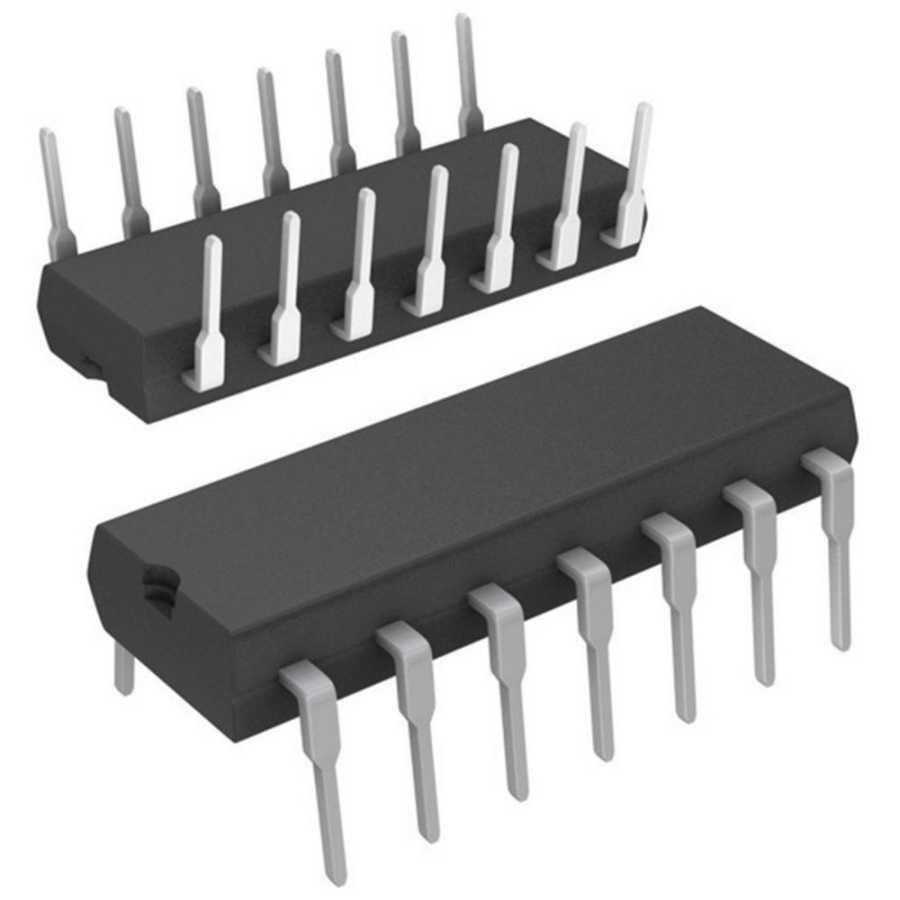

CD4011BE DIP-14 Integrated
Types CD4011B, CD4012B and CD4023B, 14-lead hermetic double-row ceramic packages (F3A suffix), 14-lead double-row plastic packages (E suffix), 14-lead small outline packages (suffixes M, MT, M96, and NSR) and 14-lead thin shrink small outline packages (suffix PWR). Types CD4011B and CD4023B are also available in 14-lead thin shrink small outline packages (PW suffix).
| Series |
CD4011BE |
| Supply Voltage |
3 V ~ 18 V |
| Logic Type |
NAND Gate |
| Output Current |
1.5 mA |
| Number of Entries |
2 |
| Number of Pins |
14 Pin |
| Package Type |
DIP-14 |
