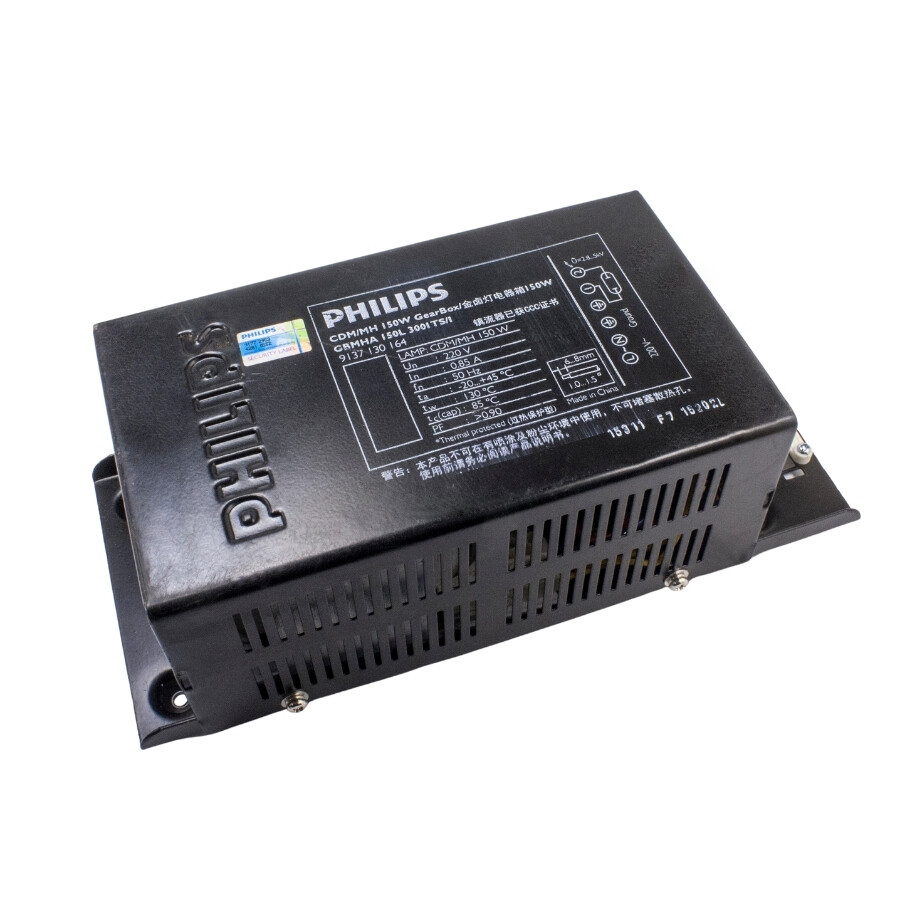

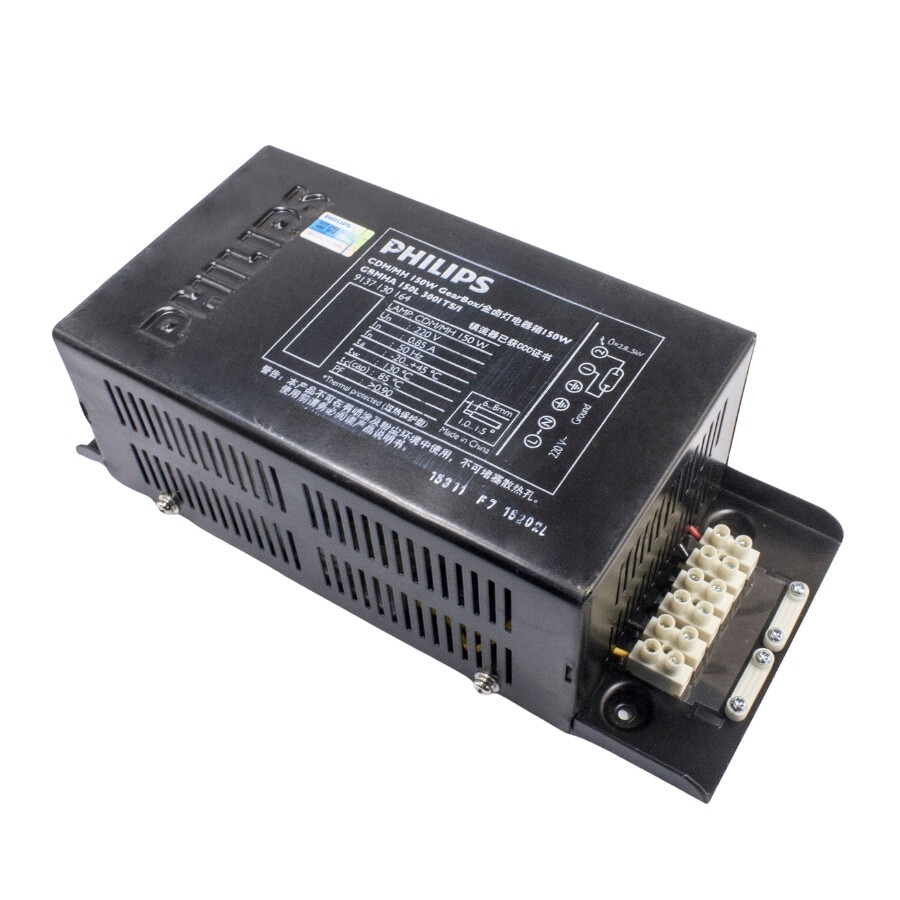

CDM/MH 150W 220V Ballast

CDM/MH 150W 220V Ballast

CDM/MH 150W 220V Ballast is a piece of equipment that allows fluorescent lamps and similar types of lamps used in lighting systems to work based on gas discharge. In simpler terms, the ballast limits the current transmitted to the gas discharge lamps and prevents high current from passing through the lamp. In addition, the ballast provides the ignition energy needed when the lamp is first lit.

Features

• LAMP: CDM/MH 150W
• Un: 220V
• In: 0.85A
• Frequency: 50hz
• Operating Temperature Range: -20 ~ 45°C
• PF: >0.90
• Pin Diameter: 3mm
• Pin Pitch: 12mm
• Slide Length: 250mm
• Case Size: 190x110x80
