CL21B-250V-155K-P15 1.5uF 250V 15mm Polyester Can Capacitor
Product code :
KOM.KND.03.000159
11,18
TL
+
VAT
13,42
TL
Notify Me When It Arrives
11,18
TL
+
VAT
13,42
TL
Add to Favorite
10+
RecommendCommentAlarm Price

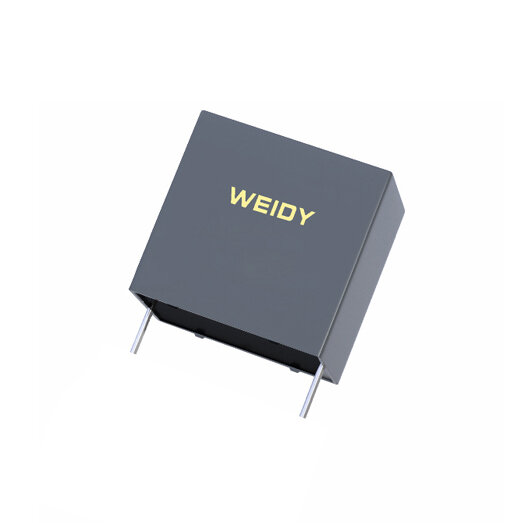

CL21B-250V-155K-P15 1.5uF 250V 15mm Polyester Can Capacitor
A capacitor is a passive two-terminal electrical component used to store energy electrostatically in an electric field. 250V 1.5uF 10% polyester capacitor.
Applications
Blocking, bypassing, filtering, and timing
High Frequency coupling and decoupling of fast digital circuits
Noise suppression in low voltage applications
High pulse load
High temperature operation
Technical Specifications
| Capacitor Type | Polyester Capacitor |
| Manufacturer Product Code | W232E155KM8SA1CGOW |
| Reference Standard | GB/T 7332 (IEC 60384-2) |
| Climatic Category | 55/105/56 |
| Value | 1.5uF |
| Max. Operating Voltage | 250V |
| Leg Spacing | 15mm |
| Voltage Proof | 1.6UR (5s) |
| Dissipation Factor | < 1.0% (20°C, 1kHz) |
| Tolerance | 10% |
| Operating Temperature Range | -55°C ~ 105°C |
