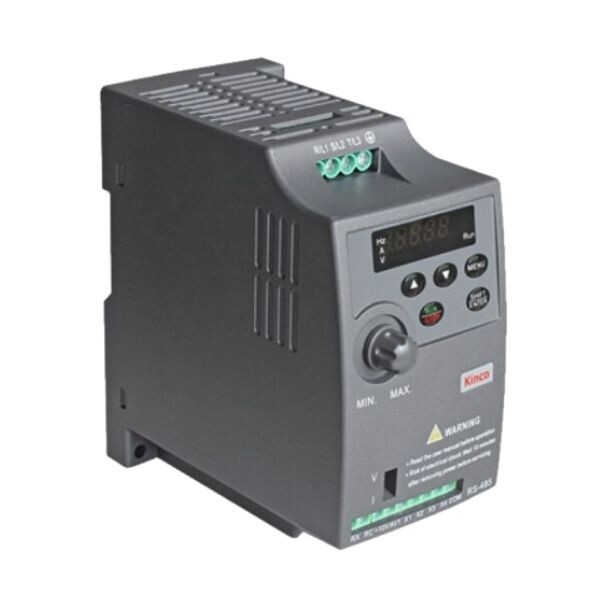

CV20-2S-0007G AC 220V 750W Motor Speed Control Module
CV20-2S-0007G AC 220V 750W Motor Speed Control Module, CV20, uses a unique control method to achieve high torque, high
accuracy and wide speed adjustment range, meeting the high performance requirements. It features high accuracy and variety of complex drive commands with all the features such as encoder connection-free, powerful speed
control, flexible input / output terminal, pulse frequency adjustment, saving parameters in power outage and fault conditions, frequency adjustment channel, main and auxiliary frequency control, etc.
User Manual
Features
- Input voltage and frequency: 200V~240V;50Hz/60Hz
- Output Voltage: 0 ~ Specified Voltage
- Output Frequency: 0Hz~300Hz (0~800HZ customizable)
- Overload capacity: G type: 150% of rated current for 1 min, 10 sec. Up to 180% of the specified current
- Control Mode: V/F Control
- Modulation Mode: Space Vector PWM Modulation
- Starting Torque: 1 Hz Up to 150% of the specified torque
- Operation Commands: Operation Panel, Terminal, Communication Control,
Supports switching between these control modes.
- LED Display: Displays about 20 parameters such as set frequency, output frequency, output voltage, output current, etc.
- Key lock and function selection: All or part of the keys can be locked. Some keys can be defined for function.
- Protection Functions: Open phase protection (selectable), overcurrent protection, overvoltage protection, low voltage protection, overtemperature protection, overload protection etc.
